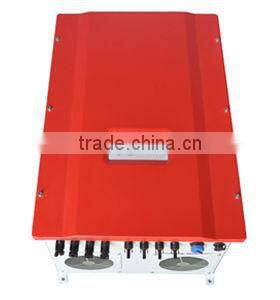

PV on-grid inverter BNSG5KD

BNSG4KD, BNSG5KD and BNSG6KD are the inverter which is with the widest input voltage range, the upper limit is high to 800V, apply to high voltage components, the minimum 200V can generate power, and effectively improve the power generation capacity. Dual-chamber cabinet structure, power components and control components are effectively separated, ensure that the control components are not effected by the bad environmental, are suitable for outdoor installation and running. Large design power, small self-consumption, and high conversion efficiency to ensure that output higher power under bad environment.

Type

                             BNSG5KD

Recommending PV array power

5.5KWp

Max. DC input voltage

780VDC

MPPT range@best operating point

300Vdc~650 Vdc @450 Vdc

Recommending PV module@number

About 35V@16 groups

On-ramp array grid-connected number

4 groups

Battery board Joint type

In-line waterproof terminal

Max.array input current

15.7A

Nominal AC output power

5KW

Allowing network voltage range(single-phase)

180 Vac ~265Vac

Nominal AC frequency

47.5Hz~51.5Hz

Power factor

≥0.99

THD of AC current

<4%

Max. Efficiency

95%

Euro efficiency

94%

Isolation

Low frequency transformer isolation

Internal power consumption an night

0W

Comm. interfaces

RS485/RS232/GPRS/Ethernet

Electric insulation performance

2000Vac,1minute

Operational environment temperature

     -25°C~+55°C

Operational environment humidity

0~95%, no condensing

Protection

Input short voltage,over voltage,connecting contrary,output over current,short circuit over heat etc.

Cooling method

Natural cooling

Noise(horizontal distance1meter)

<40dB

Protection degree

IP65

Size(W*L*H mm)

430×630×280

Weight

65
