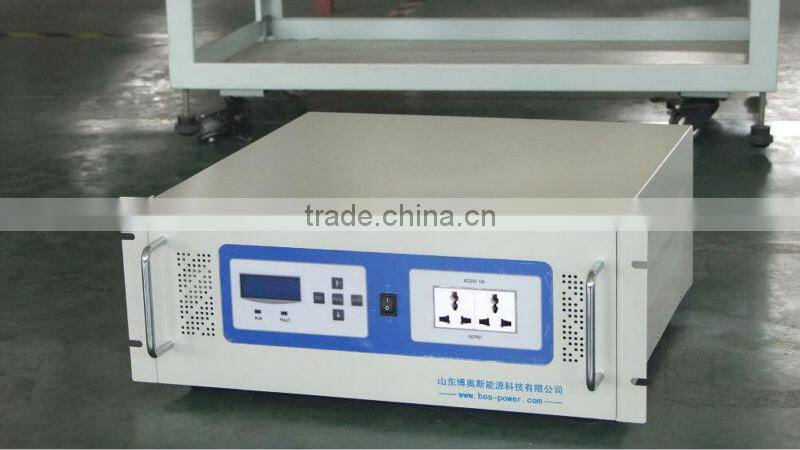

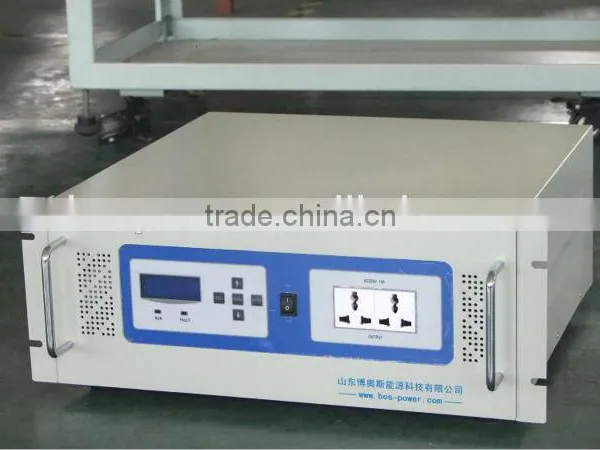

solar inverter with controller all in one BSC48-3000
| Features: |
|
1.One device with integrated charge and discharge control and inverter conversion function, cost-effective, beautiful appearance, low noise, electromagnetic interference, use environment for families; 2.Design of inverter with controller,low frequency isolation,solve the problem of non-resistive load Inrush; 3.16 digital signal processing chip, the system is a powerful, high reliability; 4.System uses isolated power supply,anti-interference ability; 5.Low power consumption, high conversion efficiency, and make full use of solar energy; 6.Environmental adaptability, available at high altitude, the natural environment applications; 7.With anti-DC input, output short circuit, overload, DC over, under-voltage, overheating, lightning protection function.; 8.Battery overvoltage, under voltage recovery automatically after the restart, to meet the requirements of unattended.; 9.Adaptability of the load, fully meet the household power supply; 10.Point-type" control method, allows PV modules to maximize battery charge, the efficiency is greatly improved. |
The main technical parameters:
technical parameter type |
BSC24-500 |
BSC24-1000 |
BSC48-2000 |
BSC48-3000 |
||
Inverter |
rated power(W) |
500 |
1000 |
2000 |
3000 |
|
rated input DC voltage(VDC) |
24 |
48 |
||||
allowed DC voltage range(VDC) |
21.6~35 |
42~80 |
||||
DC short voltage protection point(VDC) |
21.6 |
42 |
||||
DC over voltage point(VDC) |
35 |
80 |
||||
output waveform |
pure sine wave |
|||||
Output voltage accuracy |
AC220V±3% |
|||||
Output frequency accuracy |
50Hz±0.2 |
|||||
rated output current(A) |
2.27 |
4.65 |
9.09 |
13.64 |
||
Output Total Harmonic Distortion(THD) |
≤3%(line load) |
|||||
Dynamic response(load0~100%) |
5%,≤50ms |
|||||
power factor(PF) |
0.8 |
|||||
Inverter efficiency(80% Resistive load) |
More than 80% |
|||||
Overload ability |
120%,60s |
|||||
Inverter protection |
Battery voltage protection, battery over-voltage protection, output overload protection, Overheating protection, lightning protection |
|||||
controller |
Maximum open circuit voltage (VDC) |
50 |
100 |
|||
Maximum charge current (A) |
15 |
20 |
30 |
40 |
||
Battery under-voltage protection point (VDC) |
21.6 |
42 |
||||
Battery undervoltage recovery point (VDC) |
24 |
48 |
||||
Battery over-voltage protection point (VDC) |
29 |
58 |
||||
Battery overvoltage recovery point (VDC) |
27 |
54 |
||||
Rated efficiency |
≥95% |
|||||
Work environment |
Work environment temperature |
-25°C~+50°C |
||||
Relative humidity |
Less than 90% No condensation |
|||||
Altitude |
5000m |
|||||
Dielectric strength(input and output) |
1500VAC,1minute |
|||||
Noise (1 m) |
≤50dB |
|||||
Cabinet size (W * L * H)mm |
400*420*500 |
482*420*177 |
||||
