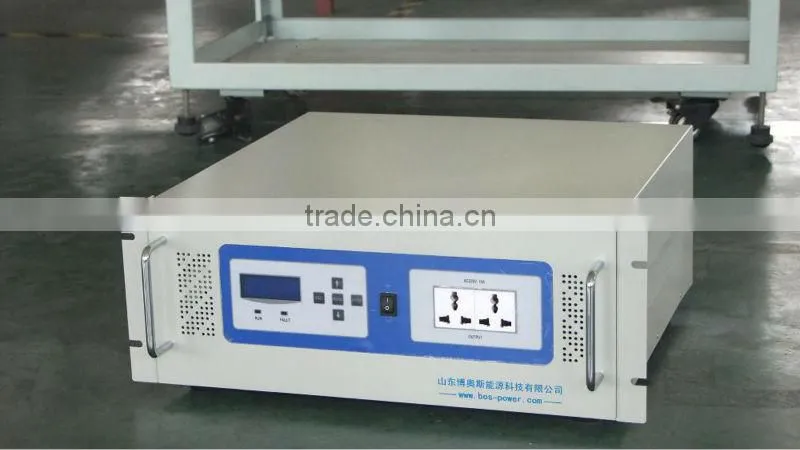

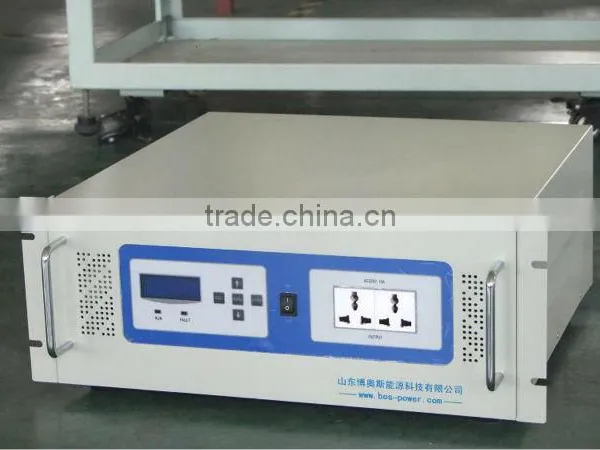

Solar Inverter With Controller All In One BSC48-2000

1.One device with integrated charge and discharge control and inverter conversion function, cost-effective, beautiful appearance, low noise, electromagnetic interference, use environment for families;

2.Design of inverter with controller,low frequency isolation,solve the problem of non-resistive load Inrush;

3.16 digital signal processing chip, the system is a powerful, high reliability;

4.System uses isolated power supply,anti-interference ability;

5.Low power consumption, high conversion efficiency, and make full use of solar energy;

6.Environmental adaptability, available at high altitude, the natural environment applications;

7.With anti-DC input, output short circuit, overload, DC over, under-voltage, overheating, lightning protection function.;

8.Battery overvoltage, under voltage recovery automatically after the restart, to meet the requirements of unattended.;

9.Adaptability of the load, fully meet the household power supply;

Model

BSC24-500

BSC24-1000

BSC48-2000

BSC48-3000

Inverter

Rated power (W)

500

1000

2000

3000

Permitted AC input current(Vac)

220±15%

AC input rated current(A)

2.27

4.55

9.09

13.64

DC input rated voltage (Vdc)

24

48

DC voltage range (Vdc)

21.6~35

42~80

DC under-voltage

protection point (Vdc)

21.6

42

DC over-voltage

protection point (Vdc)

35

80

Output waveform

Sine wave

Output voltage accuracy

AC220V±3%

Output frequency accuracy

50Hz±0.2

Rated output current (A)

2.27

4.55

9.09

13.64

Output waveform

distortion rate(THD)

≤3%(Linear load)

Dynamic response (load0~100%)

5%,≤30ms

Power factor(PF)

0.8

Inverter efficiency

(80% resistive load)

>80%

>82%

Overload

120%,60s

Inverter protection

Battery under-voltage protection, battery over-voltage protection, output overload protection, overheat protection, lightning protection

Controller

Maximum open

circuit voltage (Vdc)

50

100

The maximum

charging current (A)

15

20

30

40

Battery under-voltage

protection point (Vdc)

21.6

42

Battery under-voltage

recovery point (Vdc)

24

48

Battery over-voltage

protection point (Vdc)

29

58

Battery over-voltage

recovery point (Vdc)

27

54

Rated efficiency

≥95%

Work environment

Using condition temperature

-25°C~+50°C

Humidity

<90% no condensing

Altitude

<5000m(when over 1000 meters according to GB/T3859.2 reduce the using amount)

Insulation strength

(input and output)

1500VAC,1minute

Noise (1meter)

≤40dB

Dimension(w*D*H)

400*420*500(Including battery box)

482*420*177mm
