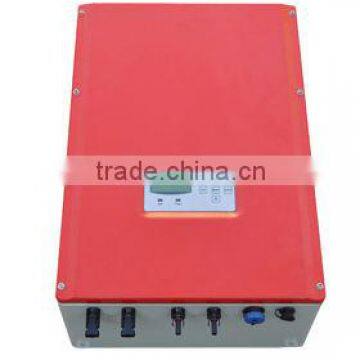

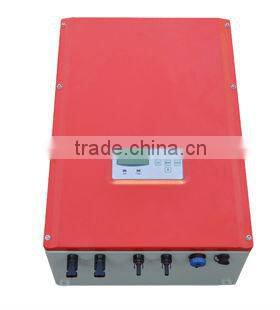

Wind Turbine Grid-connected Inverter, BNWG5KD

US$ 1,200 - 1,700 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

BOS

Model Number:

BNWG5KD

Contact Supplier Request Quote Chat Now

Shandong BOS Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name BOS

Model Number BNWG5KD

Specifications

Wind grid-connected inverter 5KD, with CE certificate,Using IGBT from Mitsubishi,high conversion efficiency, protection is IP65

Features:

1.Using IGBT from Mitsubishi company as the power components
2.Using American ATEMEL company microprocessor as figure controller
3.Perfect protection and warning functions
4.Wind turbine MPPT technology, real-time tracing wind turbine max. output power
5.Disturbance detection technology, anti-island control
6.Circuit frame compact, Max. Efficiency≥94%
7.Outdoor stainless steel shell, fully sealed installation
8.Input voltage within the broad, the maximum reach 1150VDC
9.With RS485/RS232, Ethernet, GPRS (optional) interfaces, remote data collection and surveillance
10.Pure sine wave output, automatic synchronization grid connected, non-polluting to the power grid, no impact
11.Inverting current close-cycle control,power to control and adjustable
12.Big-screen chinese LCD, perfect display, interface-friendly

Technical parameters:

Type	BNWG-5KD
Rated capacity	5KW
Rated AC output power	5KW
Max. AC output power	6KW
Insulate mode	Low frequency transformer
Recommended wind turbine power	3-4KW
Max. open circuit voltage	780V
MPPT range	200~780VDC
Max. input current	25A
Connecting mode of battery board	water-proof direct-plug terminals
Max. efficiency	94%
Europe efficiency	92%
Operating range utility voltage(single phase)	180~265WC
Operating range utility frequency	50HZ±2%&60HZ±2%
Total Harmonic Distortion(THD)	<3%
Power factor	≥0.99
Communication Interfaces	RS485/RS232
Electrical insulation properties	1500Wc,1minute
Operation surroundings Temperature	-25~+60°C
Operation surroundings Humidity	0~100%
Protection	Protection for input connecting contrary, input lack of voltage, output over load, output short circuit and over heat.
Cooling mode	Windy
Noisy	<40dB
Waterproof and Dustproof Class	IP20(indoor),IP65(outdoor)
Dimension(L×W×Hmm)	400250500
Weight(kg)	60
