Help CenterSJDSM-M Drink Straw Making Machine
Related Products
-
SBCP-450 Full Automatic Plastic Cup Packing Machine With CountingUS$ 2,000 - 8,000MOQ: 1 Set -
SBCL Series Plastic Box Making MachineUS$ 15000.00 - 15000.00MOQ: 1 Set
-
SDPZ-320 Multi-functional Forming and Packaging MachineUS$ 63000.00 - 63000.00MOQ: 1 Set
-
YZ-S1-5G 1 Cavity Semi Automatic 5 Gallon Bottle BlowerNegotiableMOQ: 1 Set
-
YZ-S1-I1 2 Cavity 1 Heater Semi Automatic Tic 5 Gallon Bottle BlowerNegotiableMOQ: 1 Set
Technical Parameter
Model | SJDSM- M(1color) | SJDSM- D(2 color) | SJDSM-T(3 color) |
Screw diameter | 50mm | 50mm/20mm | 50mm/20×20mm |
L/D | 30:1 | 30:1 | 30:1 |
Motor | 7.5kw | 7.5kw+7.5kw×1 | 7.5kw+7.5kw×2 |
Transducer | 0.75kw×2 | 0.75kw×2 | 0.75kw×2 |
Extruding output | 25-35kg | 25-35kg | 25-35kg |
Product diameter | 1-14mm | 1-14mm | 1-14mm |
Product length | ≥5mm | ≥5mm | ≥5mm |
Weight | 900kg | 1000kg | 1200kg |
Overall dimension | 1000×2000×1700mm | 1000×2000×1700mm | 1000×2000×1700mm |
Power | 380v/3p/4L/50Hz | 380v/3p/4L/50Hz | 380v/3p/4L/50Hz |

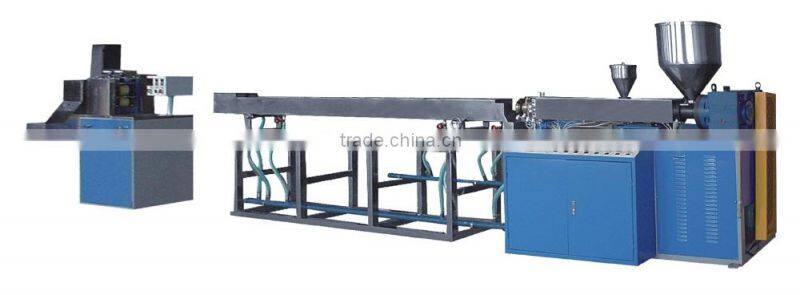

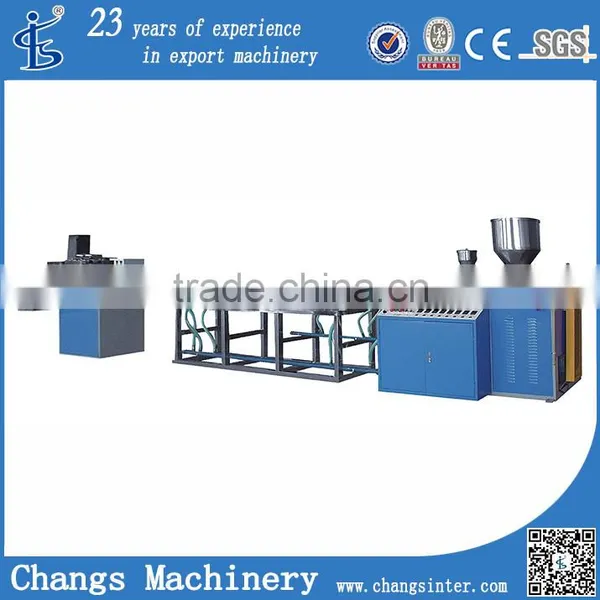

The model is a tubing extrusion line. It is composed of extruder and die, Vacuum calibration and cooling unit, haul-off and rotary cutter or coiler, the entire machine’s controls base with the control elements ergonomically adapted to permit easy operation. The machine is ideal for laboratory education and small production,the system is also suitable for extruding straws, refluxes and most diameter tubing and a wide range of industrial applications.

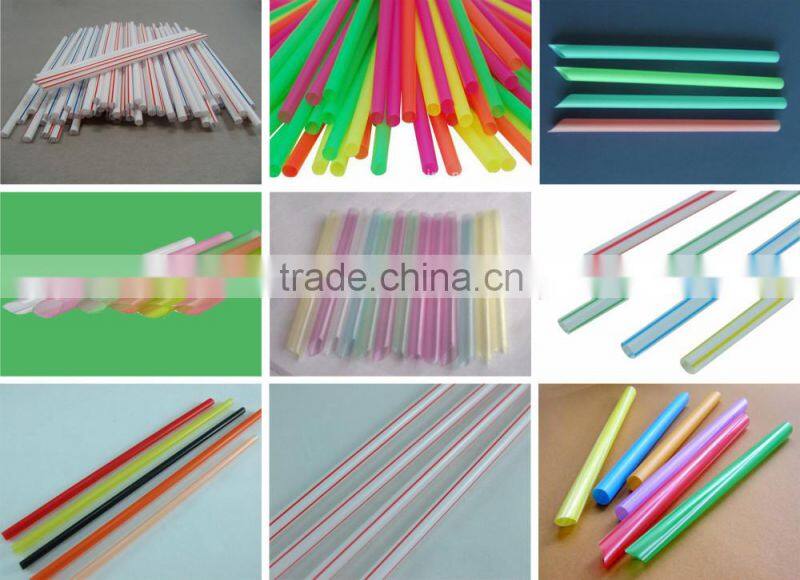

Sample:
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
