SDPZ-320 Multi-functional Forming and Packaging Machine

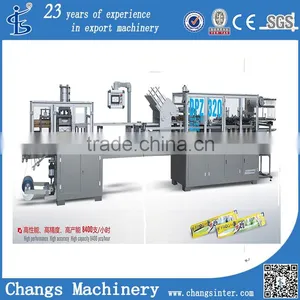

SDPZ-320 Multi-functional Forming and Packaging Machine thumbnail-1

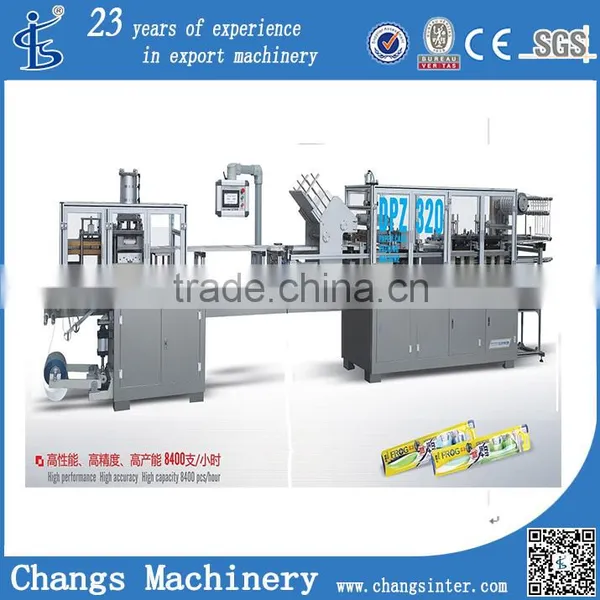

SDPZ-320 Multi-functional Forming and Packaging Machine photo-1
US$ 63000.00 - 63000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Usage:
Plastic Forming Machine
Contact Supplier Request Quote Chat Now
Wenzhou Changs International
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR NINTBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Automatic
Usage Plastic Forming Machine
Place of Origin Zhejiang, China
Brand Name CHANGS
Model Number SDPZ-320
Voltage 380V
Power(W) 180Kw
Dimension(L*W*H) 4200X1000X1900 mm
Weight 3500kg
Certification CE Certificate
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

DPZ-320 multi-functional blister packaging machine

VIDEO LINK:





PROCESS



PVC heating  → PVC forming  →Put into the packaged goods→automatic under paper cards→paper cards positioning →Plastic pads and paper card heat seal →Mechanical traction →Finished product  cutting →finish product conveying

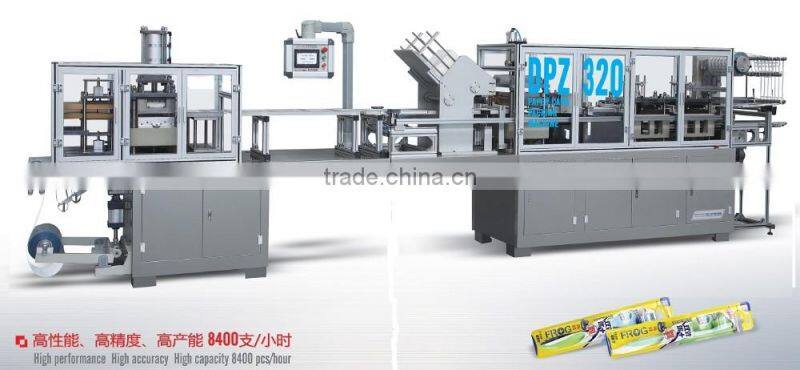

I,Machine Pictures

SDPZ-320 Multi-functional forming and packaging machine



SDPZ-320 Multi-functional forming and packaging machineSDPZ-320 Multi-functional forming and packaging machine

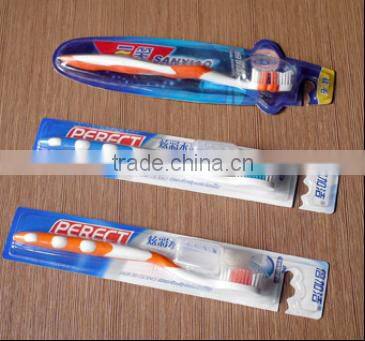

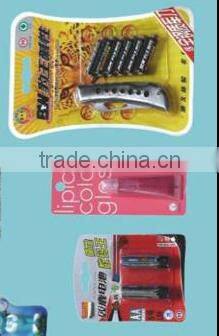

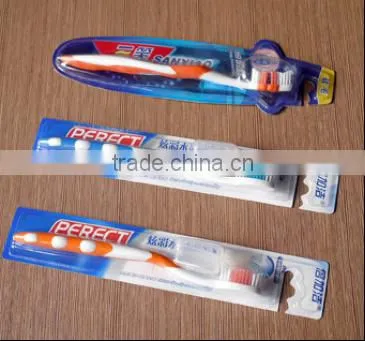

II,Sample Pictures



SDPZ-320 Multi-functional forming and packaging machineSDPZ-320 Multi-functional forming and packaging machineSDPZ-320 Multi-functional forming and packaging machineSDPZ-320 Multi-functional forming and packaging machine







III,Performance feature



The major device of the machine is including PVC heating,forming,feeding,automatic under paper cards,Preheating,and then Heat sealing ,Trip traction,cutting,finish product conveying,waste roll collecting and so on.



 After PVC heating then into pressure forming,and then filled packaging, Automatic under paper card,finished Preheating at the same time,step into Heat sealing stand and Heat sealing again,machine traction into cutting station,waste roll collecting concentration,Products output device into the next procedure,All stations device synchronous work.



1. Plate Heating



Shorten the heating time,to protect the molecular structure of PVC ,and Save Energy. The heating plate automatic opened when emergency stop, in voiding PVC too hot.    Material: Adopt stainless steel heating tube note aluminum and have Anti adhesion coating.



2.Forming device



oversized,deeply wrap page can choose the way that the convexity mould have an effectively stretches on PVC first, then using pressure forming, which make sure the thickness uniformity bright and clean of the blister. Forming mould material: aluminum alloy

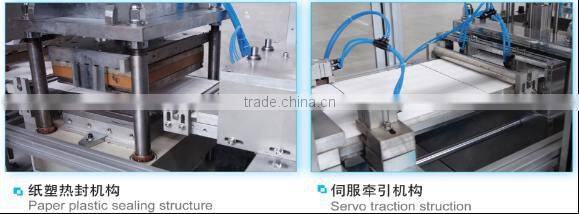

3.Hot-sealing



The cylinder avoid pressure too heavy, to



protect the transmission recoiling ,heat sealing plate and cylinder rises together when the machine stopped, to avoid the wrap package overheating.



Material: Adopt one Cr13 stainless steel



4.Trip Traction



Using mechanical traction,different stroke length is Digital adjusted, it’s accurate and convenient

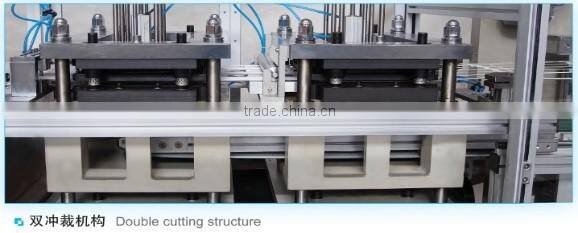

5.Cutting



Adopting The bump mould scissors type,20times/min



 Material: Cr12 Bearing steel



6.Variable speed adjustable



Taiwan inverter for stepless degree-speed adjustment, automatic overload



 protection function.



7. Programmatic control



(1)Using imported PLC with touch screen (HMI) Unified programming controller .PLC Place of origin :TWAIWAN



(2)Automatic alarm function when the plastic (PVC), paper card is running out



(3)Equipped with automatic counters.



(4)Front and back of the device is equipped with emergency stop switch which is safe and convenient

8. Hole machine cover is using

 1Cr18Ni9Ti(304) stainless steel.





9. Waste, device



Horizontal 6mm,both side 5mm,Automatic rewinding waste..



10. The machine has a specialized system of care function



First turn off the suction paper card inside the PLC, preheat seal, heat sealing function, the automatic system of care



11. The machine can also be split,Convenient carrying.



12.Double-layer extended the work surface, easy to clean internal closed.





IV,Technical parameters:



Model

SDPZ-320

Material

PVC,PET

Max Width of material

320mm

Thickness of material

0.25~0.45mm

Max.forming area

300×300mm

Adjusting range of route

20~350mm

Max.forming depth

30mm

Thickness of paper card

200-500gsm (320x350mm)

Die cutting speed:

10~15 times/min

Output

30~40pieces/min

Power supply

380V 50HZ, Main motorl2.2KW, hotsealing5.5KW

Capacity of air compressor

≥0.5m3/min

Water comsumption for cool mould

Tap water or cycling water 60L/H

Machine Overall size

6590×860×2000 mm

Packing size

4200X1000X1900 mm

Machine Weight

3500Kg





FAQ

Q1:We are interested in the multi-functional blister packaging machine ,Could you quote the latest price to us?

   A1: In order to recommend the suitable machine for you ,please provide following information before we quote price:

         1.What‘s products do you want to pack?

         2.What's your products' detail size?

         3.Do you have require for capacity?



Q2:What's the MOQ, Delivery time and payment terms?

   A2: 1. MOQ: 1 set

         2. Delivery time: 60 workdays after receiving T/T 30% payment deposit

         3. Payment Term: T/T 30% as deposit, T/T 70% before shipment or L/C at sight

Our Services

1. Warranty

1 year limited warranty after installation.If the spare parts is broken in the warranty period , we will send a free replacement parts to you .

2. Installation and Training

We can send 1-2 engineers to buyers factory to install and set up the machines and training, but all the charges for the engineers should be paid by buyer.

3. Quotation

The quotation is available in 60 days

Packaging & Shipping

We have a professional  transport channel
