Specifications
semi automatic 5 gallon bottle blowerWIdely used to produce any shape of plastic from PET with 3 gallon to 5 gallon bottle.
semi automatic 5 gallon bottle blower
Detailed Product Description
WIdely used to produce any shape of plastic from PET with 3 gallon to 5 gallon bottle.

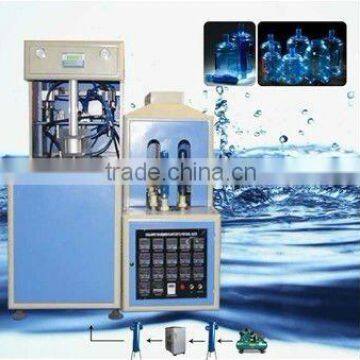

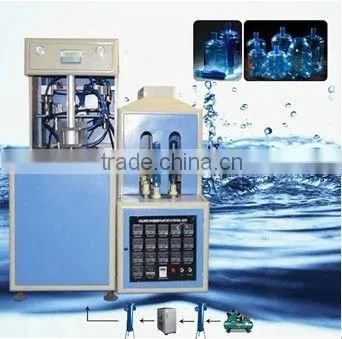

YZ-S1-5G blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
Perfect function with economic investment.
Small size and compact construction with no space waste.
Easy to operate and maintain ,operation by one person .
Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.
TYPE | ITEM | UNIT | TECHNICAL DATA HY-Y |
CONTAINER | Product material |
| PET |
Container volume | L | ≤25 | |
Theoretical Output | Pcs/hr | 80 | |
Max. bottle height | mm | 550 | |
Max.bottle diameter | mm | 280 | |
| Max.moula plate dimension(LxW) | mm | 430 |
Max.mould thickness of mould | mm | 420 | |
Clamping force | KN | 320 | |
Mould opening stroke | Mm | 340 | |
AIR COMPRESSOR | Working pressure | Mpa | 0.8-1.0 |
Air compressor for blowing | Mpa | 3.0 | |
MAIN MACHINE ELECRICITY | Power | KW | 15 |
Voltage/Frequency | V/HZ | 380-240-110/50-60 | |
MACHINE SIZE AND WEIGHT | Main machine(LxWxH) | M | 2200×750×2000 |
Main machine weight | KG | 600 | |
Heater(LxWxH) | M | 2080×630×1380 | |
Heater weight | KG | 400 | |
SAFETY | SAFETY INTER-LOCKING DEVICE | Auto-emergency alarm | |
