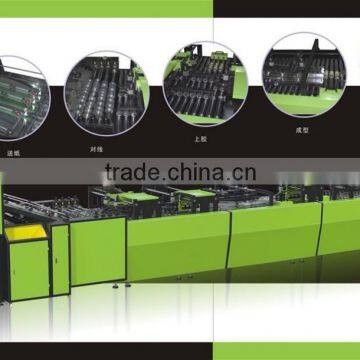

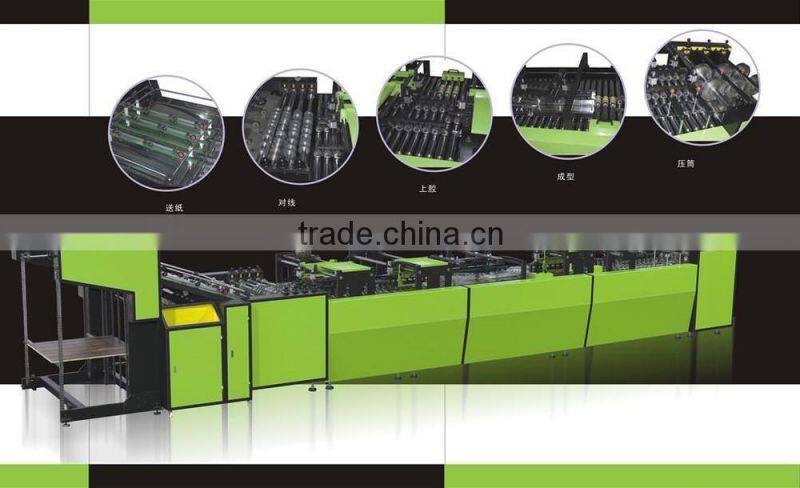

YZFDA-1200 Single Sheet Feeding Paper Bag Forming Machine
Introduction
YZFDA paper bag forming machine can improved your efficiency in vast scale, full meet the request of market: shorten production time, improve better quality. The machine made through perfect quality control, optimize spare parts and raw material, high precision processing, better dependability. Gluing system adopt hot melt adhesive (roller wheel) gluing, suit for producing mid-high level paper bag. Achieve the motive of lessen worker, increase output, improve quality and reduce cost. Received consistent praise from domestic and foreign customers
Product Introduction
Automatic paper bag for forming machine mainly applies raw materials of impressed single paper for manufacturing various middle and high level paper bags.
Working Procedure
Auto delivery of creased paper, line aligning, gluing, tube formation, folding impressing and bag tube output, it adopts water-soluble cold glue and glue spraying system.
Advantage
Use this product could achieve effect of human resource optimization, high speed and stabilization.
Product Parameter:
Model | YZFDA-1200 |
Weight | 4000kg |
Physical Dimension(L*W*H) | 10050x1720x1690MM |
Max. paper size | 1200x600MM (L*W) |
Min. paper size | 410x290(L*W) |
Paper weight | 100-400g |
Bag-Making Speed | 115pcs/min |
Organ Height(mm) | 50-200mm |
Gluing type | Water-Soluble Cold glue |
Total Power | 10KW |
YZHD-70 Paper Bag Bottom –gluing Machine
Product Introduction
Perfect integrate paper bag bottom-gluing machine has the function of fast speed, best quality, perfect hot-melt system, solved the problem of degumming, leakage glue. Shorten production time, save glue improve quality capacity, reduce cost will bring big profit to you. This machine has compact efficiencies and generously reward.
Performance and Characteristic:
- 1. YZHD70 paper bag bottom-gluing machine features a continuous function of automatic delivery of manually-folding bag bottom (the paperboard can be inserted or not), automatic glue spray, automatic pasting, automatic folding. Pressing and finished bag bottom output.
- 2. This machine adopts touch-screen operation, with four hot-melt spray guns, the user can adjust the glue thickness and gluing position according to requirements. With high precision and speed this machine can produce various specification of bags .
- 3. This machine glue spray regularly, high precision of bag-making, fast speed, can produce various of handbag.
Suitable Material
Kraft paper, coated paper, white board, art post paperboard (contain with coated paper)
Process flow
Feeding> Glue Spray >Bottom folding> Pressing
Product Parameter
Model | YZHD-70 |
Bag making speed: | 110bags/Min |
Total power4 | 6KW |
Physical dimension(L*W*L) | 3800x1500x960MM |
Bottom Thickness | 50-200mm |
Gluing | Hot-melt glue |
Weight | 1600kg |
