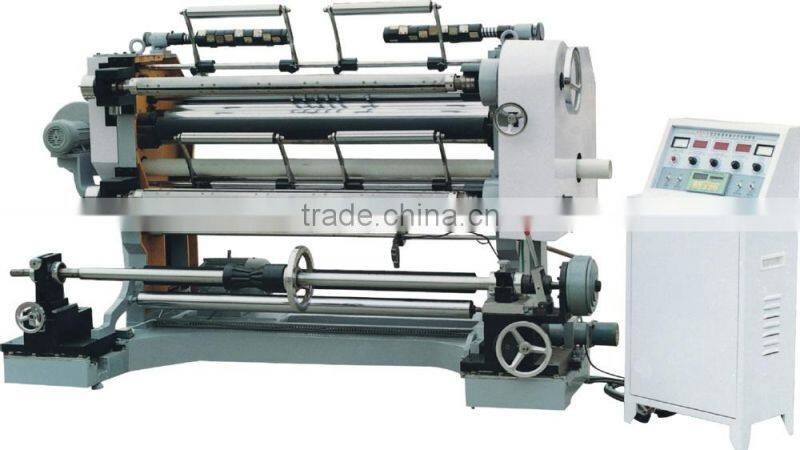

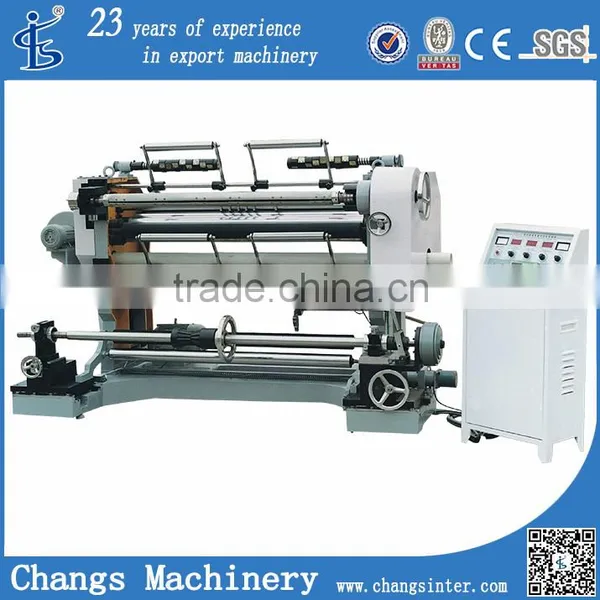

Technical Parameter
Model | WFQ-1000 | WFQ-1300 |
Max.unwinding diameter | 600 mm | 600 mm |
Max. width | 1000 mm | 1300 mm |
Inner core diameter | 76 mm | 76 mm |
Min. Cutting width | 20 mm | 20 mm |
Slitting Speed | 160 m/min | 160 m/min |
Accuracy of adjustment | ± 0.5 mm | ± 0.5 mm |
Power | 3.8kw | 4.8kw |
Weight | 1300 kg | 1500kg |
Overall dimensions | 2200×1300×1500 mm | 2450×1300×1500 mm |
Equipped with photoelectric tracking. Auto adjustment. Tension control and operation indicator .
the cutter can be operated in a simple way with a reliable function.
The machine can be complied in spliting cutting of plastic film. Paper and aluminum foil etc.
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
