Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > ML Series Creasing and Die Cutting Machine

ML Series Creasing and Die Cutting Machine

Wenzhou Changs International
ML Series Creasing and Die Cutting Machine thumbnail-1
ML Series Creasing and Die Cutting Machine photo-1
US$ 3,600 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, paperboard cutting machine
Processing Type:
Cutting Machine
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, paperboard cutting machine
Processing Type Cutting Machine
Place of Origin Zhejiang, China
Brand Name CHANGS
Model Number ML-750
Voltage 220v/380v
Power(W) 2.2KW
Dimension(L*W*H) 1450x1600x1450mm
Weight 2000Kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

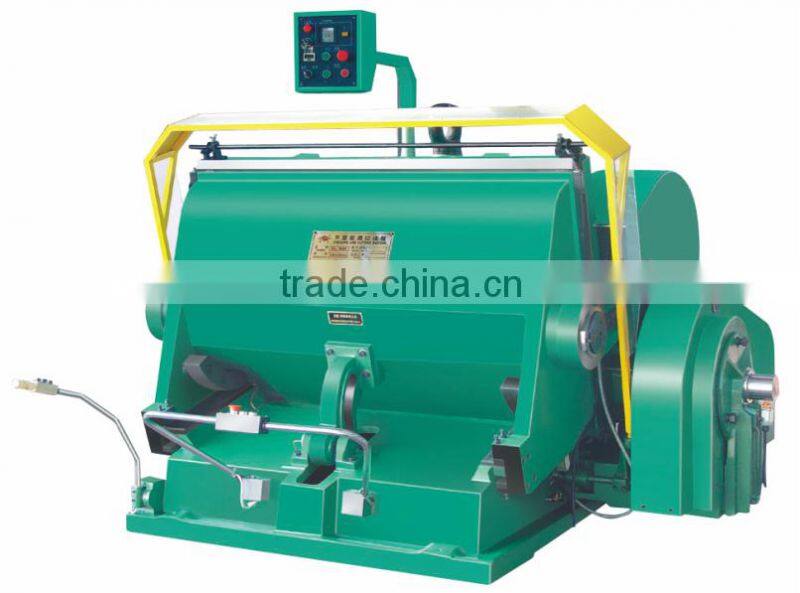

ML Series creasing and Die cutting machine

FEATURES:

* Sliding bearings are made of high quality alloy cooper,thus to get effect of anti-frietion and shake reducing.

* Flywheel is with big moment of force and large pressure.

* High strength due to one piece casting by using top-ranking material for machine body.

* Single plate electromagnetic clutch is sensitive and reliable.

* With functions of single,continuous and opening dweel operation,dwell range is adjustable.

* Operating position is reasonably arranged,moving-bed can be opened to its optimum.

l  Central lubrication system guarantees fine lubrication and reduce friction. * Safety system is reliable.

 PARAMETERS:



Model

Inner Chase Size

Speed

  Max.Rule Length

Motor Power

 Machine Weight

Overall Dimensions

 ML750

 750*520mm

 25

 <15m

 2.2kw

 2000kg

 1650*1400*1500mm

 ML930

 930*670mm

 23±3

 <25m

 4kw

 3000kg

 1750*1900*1700mm

 ML930A

 930*670mm

 23±3

 <30m

 5.5kw

 3500kg

 1850*1950*1700mm

 ML1040

 1040*720mm

 23±3

 <28m

 4kw

 3500kg

 2000*2010*1900mm

  ML1100A

 1100*800mm

 22±2

 <38m

 7.5kw

 5000kg

 2000*2010*1900mm

  ML1100

 1100*800mm

 20±2

 <30m

 5.5kw

 4500kg

 2020*2010*1900mm

  ML1200

 1200*820mm

 20±2

 <32m

 5.5kw

 5000kg

 2020*2020*1950mm

  ML1300

 1300*920mm

 15±2

 <40m

 7.5kw

 6000kg

 2600*2100*1950mm

  ML1400

 1400*1000mm

 15±2

 <45m

 7.5kw

 6500kg

 2600*2100*1950mm

  ML1500

 1500*1050mm

 14±2

 <45m

 7.5kw

 7000kg

 2650*2100*2000mm

  ML1500G

 1500*1150mm

 14±2

 <45m

 7.5kw

 7300kg

 2650*2100*2050mm

  ML1600

1600*1250mm

 13±2

 <50m

 11kw

 11500kg

 2850*2250*2100mm

  ML1800

 1800*1280mm

 13±2

 <60m

 15kw

 13000kg

 3150*2250*2250mm

  ML1800G

 1800*1400mm

 13±2

 <60m

 15kw

 14000kg

 3150*2250*2300mm

  ML2000

 2000*1400mm

 12±2

 <65m

 15kw

 15500kg

 3150*2250*2300mm

  ML2200

 2200*1400mm

 12±2

 <68m

 18kw

 16500kg

 3300*2250*2300mm

  ML2500

 2500*1400mm

 12±2

 <70m

 18kw

 18500kg

 3600*2250*2500mm

  ML2600

 2600*1500mm

 12±2

 <70m

 22kw

 20000kg

 3700*2250*2550mm

  ML2800

 2800*1600mm

 12±2

 <75m

 22kw

 23000kg

 3900*2300*2800mm

 ML3000

 3000*1600mm

 12±2

 <80m

 30kw

 35000kg

 4200*2300*3000mm





ML Series creasing and Die cutting machineML Series creasing and Die cutting machine

ML Series creasing and Die cutting machine


Our Services

1. Warranty

              1 year limited warranty after installation.If the spare parts is broken in the warranty

              period , we will send a free replacement parts to you .

2. Installation and Training

              We can send 1-2 engineers to buyers factory to install and set up the machines and

              training, but all the charges for the engineers should be paid by buyer.

3. Quotation

             The quotation is available in 60 days

Packaging & Shipping

We have a professional  transport channel

ML Series creasing and Die cutting machine

Company Information

1.About us

      Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.

       To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.

2.Certificate

ML Series creasing and Die cutting machine

3. Cooperative partner

ML Series creasing and Die cutting machine
