P10 Commercial Outdoor Full Color Round Led Display

US$ 1,000 - 1,600 MOQ: 1 Square Meter

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCY

Model Number:

CCY-OF-P10

Shenzhen CreKing Electronics Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCY

Model Number CCY-OF-P10

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 10mm

Specifications

P10 commercial outdoor full color round led display
>high quality
>low price
>CE & RoHS
>Good sales servic

P10 commercial outdoor full color round led display

>high quality
>low price
>CE & RoHS
>Good sales service

technical parameters

Pixel Pitch	10 mm
Virtual pixel pitch	5mm
Density per sqm	10000 pixels
Pixel configuration	1R1G1B
LED package	DIP 346

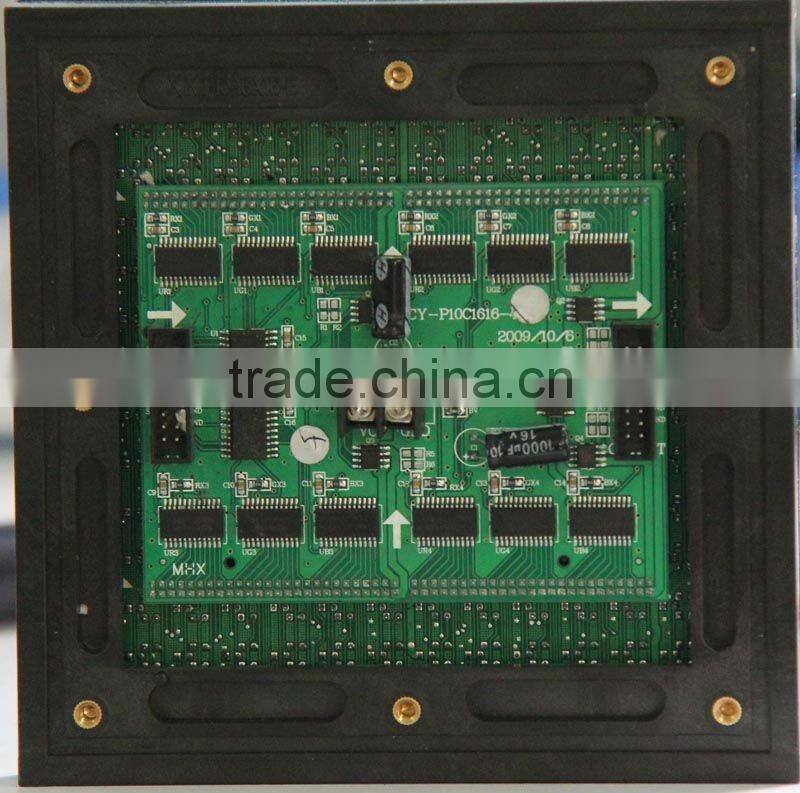

Module resolution	16*16dots
Module size	160 mm*160 mm

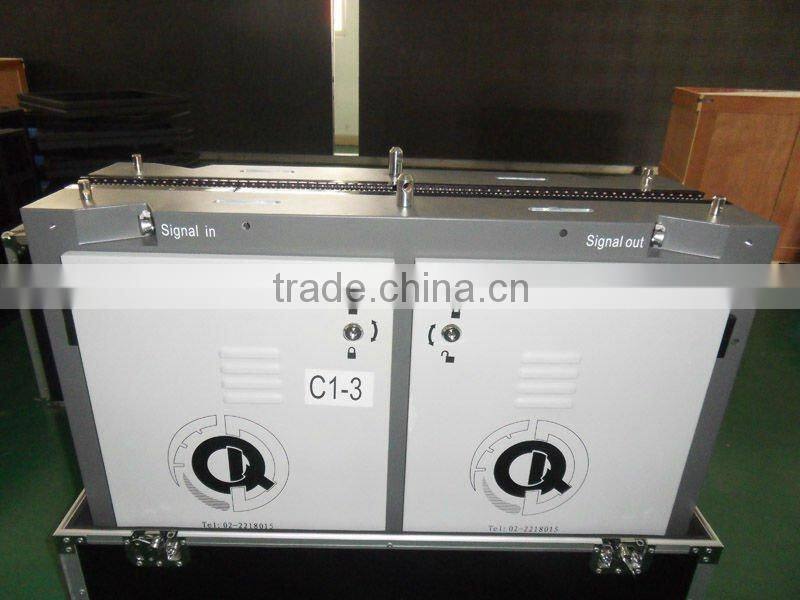

Cabinet size	1280 mm960 mm or 1120mm960mm or 960mm960 mm or 960mm800mm
Whiteness brightness	8000 to 10000nits
Grey Scale/Color	Display colors≥16.7m
Best Viewing Distance	8m~65m
Driving method	1/2 scan, constant current
View Angle	(H) 110°~140°(V)/ 55°
Frame frequency	60 Hz
Refresh Rate	450 Hz ~ 4000Hz
Max power	750W/sqm
Average power	160W/sqm
Protection classification	IP65 front/IP54 rear
Weight	>60 Kg/m²
Install mode	Wall mount, hung anword stand structure
Cabinet Material	Iron/Aluminum
Working voltage	AC 110~220v/±10%
Control method	Synchronization
Malfunction dot rate	Leswors than 0.0001
Working temperature	-40~+60°C
Working Humidity	10~95%
Lifetime	100,000 hours (about 10 years)
MTBF	≥ 10000 hours
Whole display flatness	less than 1mm juncture
Transmission distance	LAN cable ≤ 100m, optic fiber transmission: MMF ≤500m, SMF ≤15km
