Help CenterP16 Outdoor Full Color Curve Led Display Screen on Crosssroad
Related Products
-
Hot TV Studio Curve Led Display Screen Linear Led Full Color High Refresh Rate 2400HzUS$ 1,300 - 1,500MOQ: 5 Square Meters -
Xxx Video P12 Outdoor Advertising Curved Shape Video Display Boards as Seen on tvUS$ 599 - 1,999MOQ: 1 Square Meter
-
Xxx Photos Shenzhen the Newest Product hd Indoor Led Dispaly/led Panel/led Bilboard Xxx Pic Xxx ImageUS$ 599 - 1,999MOQ: 1 Square Meter
-
Indoor Exhibition Hall P7.62 Full Color Curved Led Advertising tv Board/Flexible Led Xxx Video Display BoardUS$ 550 - 620MOQ: 2 Square Meters
-
Full Color Indoor HD Led Biiiboard/Curve LED Display ScreenUS$ 1 - 3,000MOQ: 1 Square Meter
Specifications
curve led display screen1,LED display with CE,ROHS
2,good uniformity
3,waterproof, dustproof
4,long life-span
curve led display screen
Out led display is one red, green, blue lamp plugged in to one pixel. Main technical parameters are brightness, environment adaptations, grey scales, and stability.
Leder's outdoor full color led display can work normally under the disgusting environment by its temperature self-adopted system. It uses blur control arithmetic control technology to the auto-achieve regulation and white balance of luminance. The brightness can auto-adjusted in accordance with the outside environment. The grey scale can reach to 16bits with the refreshing frequency to 10,000Hz at the same time.
It is widely used in advertisement for billboards, public squares, stations, etc
curve led display screen detail feature:
LED lamps Parameters |
Led chip brand |
R:Epstar G:Silan B:Silan |
Led Chip size |
R:10mil G:12mil B:12mil |
|
View angle |
140°/50° |
|
|
Luminance
|
R:990-1210mcd |
|
G:1980-2420mcd | ||
B:495-605mcd | ||
|
Wavelength
|
R:625-630nm |
|
G:520-525nm | ||
B:465-470nm | ||
|
LED Modules Parameters
|
Enscapulation |
DIP546 |
Physical pixel pitch |
16mm |
|
Virtual pixel pitch |
8mm |
|
Pixel configuration |
2R1G1B |
|
Colors |
1024*1024*1024=1073741824 |
|
Module resolution |
16 dots *8dots |
|
Module size |
256mm*128mm |
|
Control IC |
MBI5024 |
|
Deconstruction |
Lamp board seperate with drive board |
|
Module Wight |
1.9kg |
|
|
LED carbinets Parameters
|
Standard Cabinet size |
1024mm * 768mm*160mm |
Cabinet weight |
85kg |
|
Cabinet resolution |
64 * 48 pixels |
|
Module Quanity |
4pcs*6pcs=36pcs |
|
Cabinet Pixel |
3,072dots |
|
Carbinet Material |
Iron |
|
Power supplier |
Meanwell or Chuanglian |
|
Max. power consumption |
1200W |
|
Ave.power consumption |
400W |
|
|
Led display Parameters
|
Brightness |
≥7000CD/m2 |
Driving method |
Static ,constant current |
|
Best viewing angle |
Horizontal: ≥140°; Vertical: ≥50° |
|
Frame frequency |
≥60Hz/s |
|
Refresh rate |
adjustable from 10Hz to 3000Hz |
|
Display color |
281 trillions |
|
Input voltage |
AC 110 or AC220 V ±10% ,50 to 60Hz |
|
MTBF |
5,000 hours |
|
Life-span |
100,000 hours |
|
Ingress protection |
Front IP65 back44 |
|
Working environment |
Temperature: -20°c-+50°c; Humidity: 10%-90%RH |
|
Information source |
Many kinds of signal access: can input TV signals ,DVD signals , DVI, S-VIDEO, RGB, VGA, and so on. |
|
Protection |
Waterproof , lighting protection, corrupt resistant |
|
Screen Configuration |
Screen composed of the cabinets, cabinets composed of the modules and so on. |
|
Information |
Can set up dynamic characters& graphics, manifest manner &content ,can automatically draw and send information |
|
System management |
Adopt the long-distance control &management mode ,can set up the work mode,work state and power limit , |

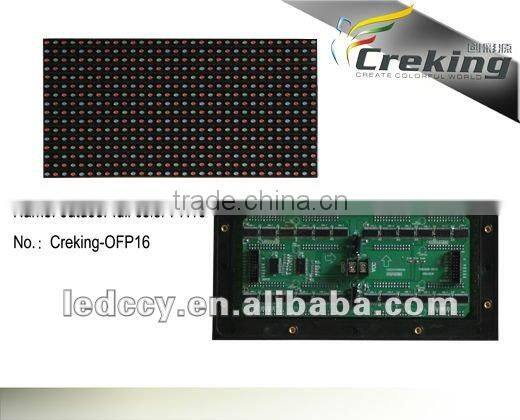

Module Picture

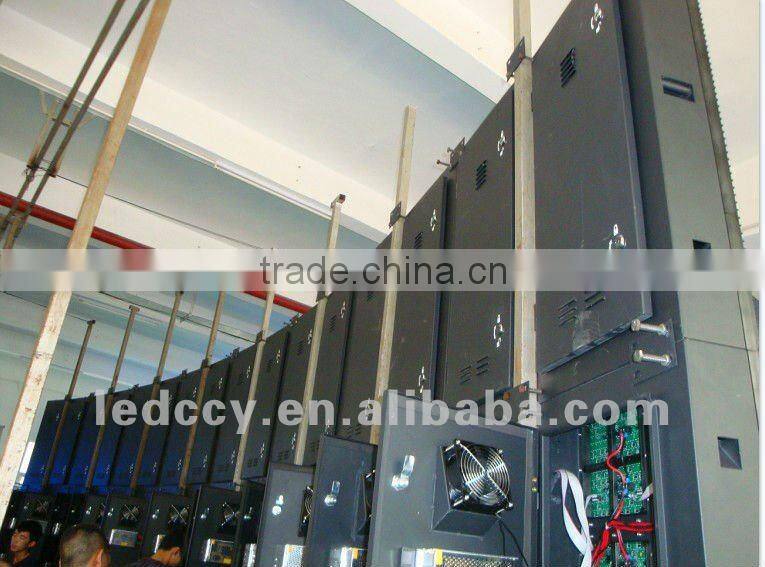

Carbinet Picture

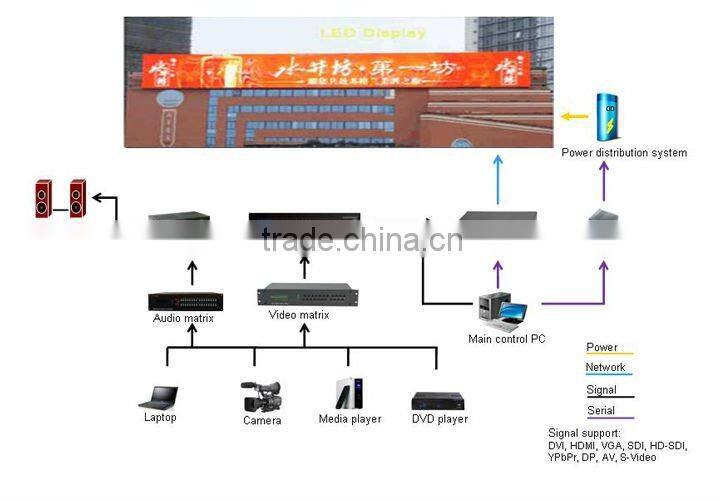

System picture

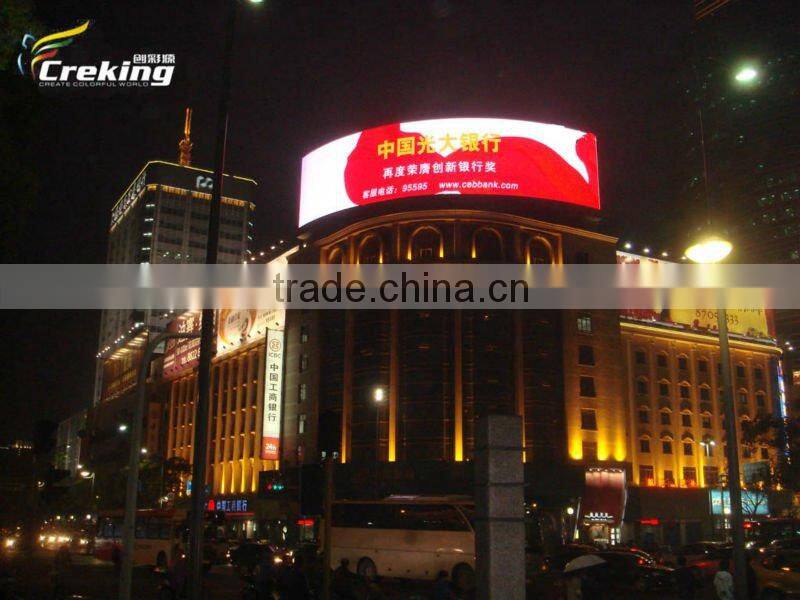

Projects
Factory Picture
Certificates
P16 outdoor full color wallpaper led display
