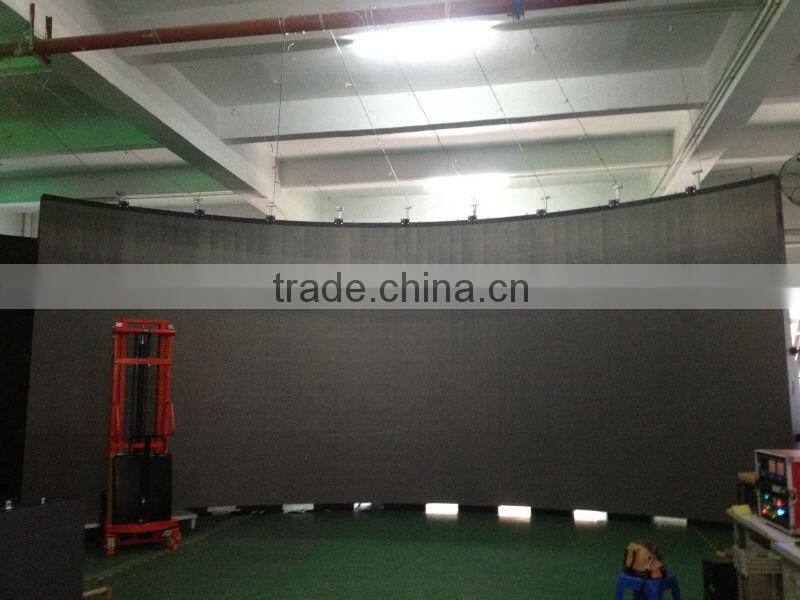

Hot TV Studio Curve Led Display Screen Linear Led Full Color High Refresh Rate 2400Hz

Shenzhen CreKing Electronics Technology Co., Ltd. Gold Verified Supplier
5Yrs

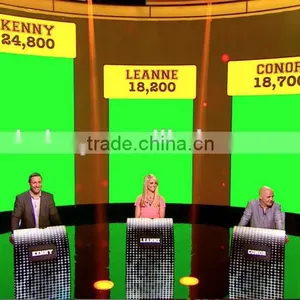

Hot TV Studio Curve Led Display Screen Linear Led Full Color High Refresh Rate 2400Hz thumbnail-1

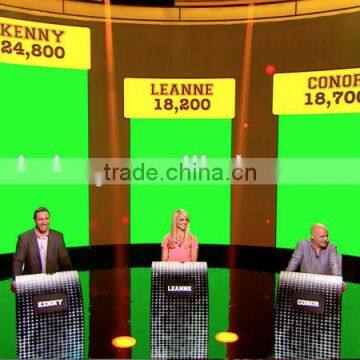

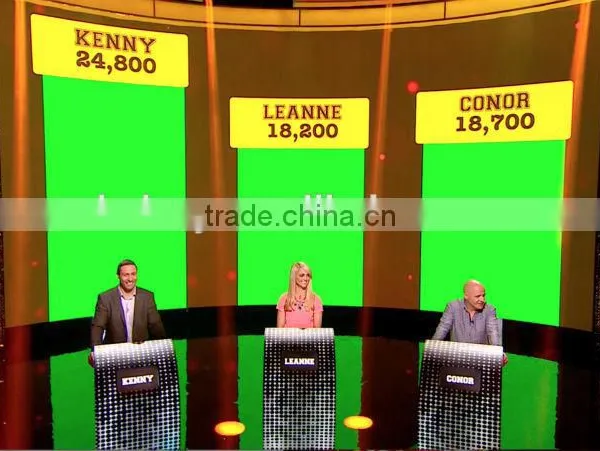

Hot TV Studio Curve Led Display Screen Linear Led Full Color High Refresh Rate 2400Hz photo-1
US$ 1,300 - 1,500 MOQ: 5 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Creking
Model Number:
Creking-IF-P5mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Creking
Model Number Creking-IF-P5mm
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 5mm
Screen Dimension Customize

Specifications

Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz
1,led solution can made in any shape .

Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz
1,led solution can made in any shape .



Company Information



ShenZhen Creking Electronics Technology Co.,Ltd is one of the China national high –tech enterprise in Led Display research and manufacturing ,sales and service.Creking was founed in 2004 ,with registered capital of RMB20.8 million yuan In 2007 Beijing Branch was established ,in August 2011,Led lighting division was founed in ShenZhen,commting to the high –tech led lighting field .The company has the world’s most advanced automatic led packaging production equipment ,boosting of high quality Led encapsulation and independent research and production of led lamps .,which is the core part for the company’s two main product lines :LED HD full color display and LED lighting .Our products are widely used in commercial ,office ,home ,hotel ,landscape,etc ,which are popular in the market of Asia ,Europe ,America and other countries eand regions.



Company’s headquarter located at Fenghuang village industrial park ,Fuyong Street ,Bao’an District ,Shenzhen.With many years of company development ,equipped with more than 15.000 square meters of dust-free standard workshop and the most advanced clean anti-static automated industry’s production lines .assembly lines and sophisticated detection equipment,and the capacility of produce reached 8,000 square meaters per month ,which enable it is capacility to be the top of industry.The company had received dozens of product certification and innovative patented technology products .has passed many domestic and foreign certification.For many years ,Creking has been making the effort to stand standard ,design ,manufacturing process and techniques ,material systems ,products ,effectively keep product quality ,to meet different market and customers .

 Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz





Product Description



Indoor Led Display Advantages:

P1.923mm/P2.5mm /P3mm /P4mm /P4.81mm/P5mm/P6mm/P7.62mm/P10mm etc
With their revolutionary black LEDs, the P1.923mm /P2.5 /P3mm /P4mm LED displays deliver the deepest black levels available on the market in combination with a extremely high contrast ratio of over 3,500:1. Cost-effective LED displays that offer excellent black levels, contrast and image quality

Flexible, lightweight products that come with the best value at the most attractive prices.

SMD type with wide viewing angle .it shows a super fine and high quality on the Led sreens

With a light output of over 2,000 nits and native 16-bit color processing,

Lightweight Panels guarantees a quick and easy installation.



P5mm Indoor Hd led display technical Parameter





Item



Item

Description

1

Pixel

Pitch Size

5mm

2

Pixel Composition

1R1G1B

3

    LED type

SMD3528

4

Physical resolution

40000dots/sqm

5

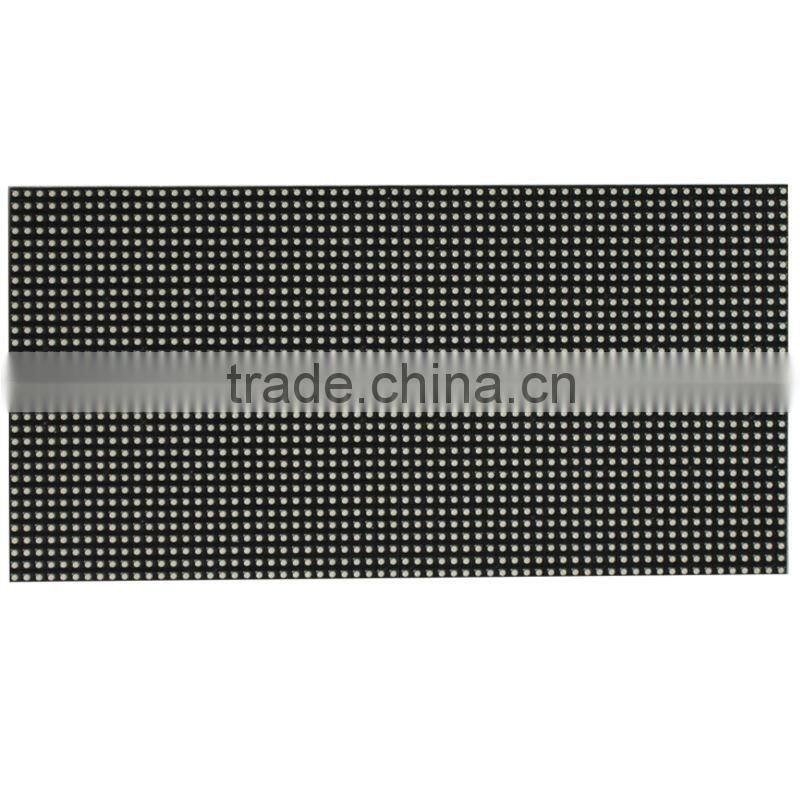

LED MODULE

Module Size

320mmx160mm

6

Module Resolution

64(w)×32H(dot)

7

Cabinet Size

960mmx960mm

8

LED CABINET

Cabient Thickness

10cm

9

Out of control

≤1/10000

10

Module connection

≤0.5mm

11

Best viewing distance

6.25-16m

12

Viewing Angle

Horizontal :140°,Vertical :140°

13

Flatness

≤1mm

14

Consistancy

Module mask color consistent ,without reflect light

15

Uniformity

1:1.2

16

Circuit board layout

Reasonable ,good appearance ,

17

Temparature

—40°C~70°C

18

Humidity

10%—95%RH

19

Power Supply

Input Voltage (AC)

AC220V±15%;AC50Hz-60Hz

20

Earth leakage current

< 5mA

21

Input frame frequency

50/60HZ

22

Input power rating

≤50W/sqm

23

Input max power consumption

≤300W/sqm

24

Control System

Main Operating  System

WIN2000,XP PC +Control System software +palying software and hardware

25

Control Way

Synchronized with computer VGA port

26

Control system

DVI Graphic Card+Full color Control system +net cable transmission

27

Input

Computer and other equipment,PAL/NTSC/SECAM, S-Video;VGA;HDMI;RGB;Composite Video;SDI ,etc .

28

Main technical parameters

LED Drive mode

1/16 scan ,constant current

29

Power supply

5V40A power

30

Computer display resolution

1920×1080

31

Frame

120HZ

31

Refresh Rate

³2400hz

32

Grey level

14bits

33

Brightness

> 1300cd/sqm

34

Input voltage

110v -240v

35

Life Span

≥100000 hours

36

Display

Video DVD,VCD,TV,pictures,text,animation,etc

37

MTBF

≥10000 hours

38

Interface

Standard Ethemer port,communication use RS-422

39

Control Distance

MMF<500m,SMF < 30km,cat 5 cable < 100m

40

Protection

Moistureproof, dustproof, anti-corrosion, anti-static, lightning protection, at the same time has over current, short circuit, overvoltage, undervoltage protection function

41

Protection Level

IP31

42

Software

NOVASTAR /LINSN /DBSTAR /ZEDEC





 Hot TV studio curve led display screen linear led full color high refresh rate 2400HzProduction Process :

Welding peoduction line

Module Aging test line

Module /Cabinet Automatic assembly line

Display whole screen Aging Test



Hot TV studio curve led display screen linear led full color high refresh rate 2400HzHot TV studio curve led display screen linear led full color high refresh rate 2400HzHot TV studio curve led display screen linear led full color high refresh rate 2400HzHot TV studio curve led display screen linear led full color high refresh rate 2400Hz

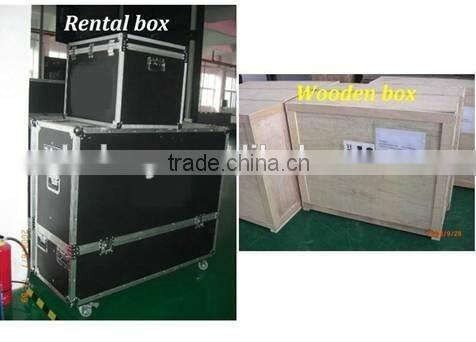

Packaging & Shipping





Packgaing

Crate for fixed installation panels

Movable Cases for rental panels



Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz

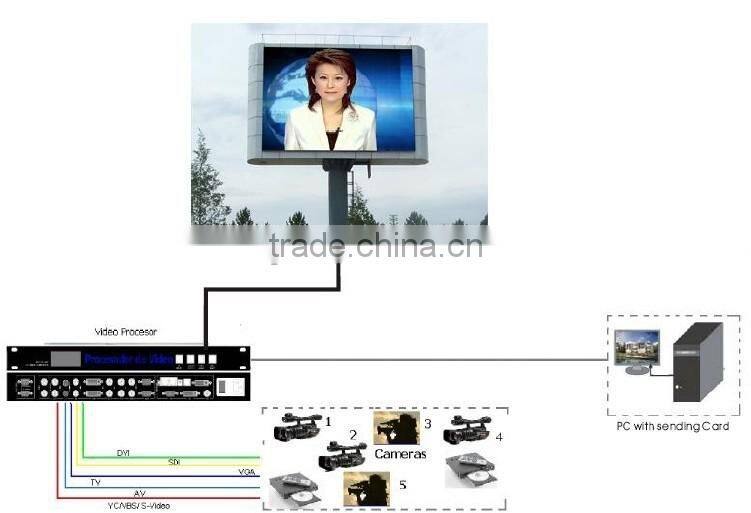

Display Control SYSTEM

Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz











Creking Exhibition all over the world :Dubai/Brazil/USA/Hollan/Turkey/Indonesia/Germany/South Africa

Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz









  • Workshop



Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz

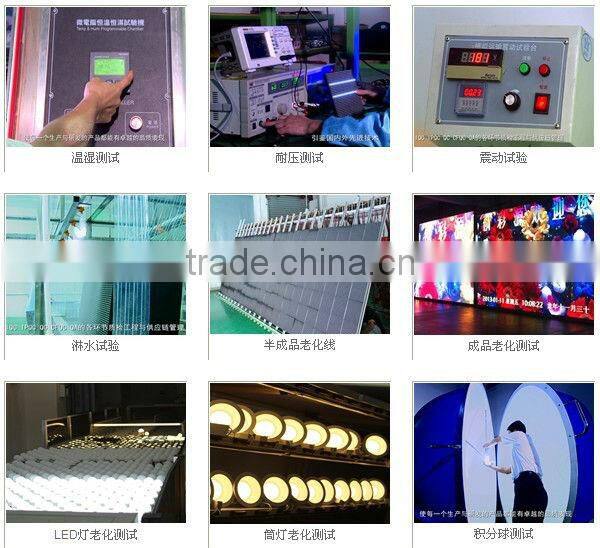

  • Quality Detection



Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz







  • Certificate



Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz

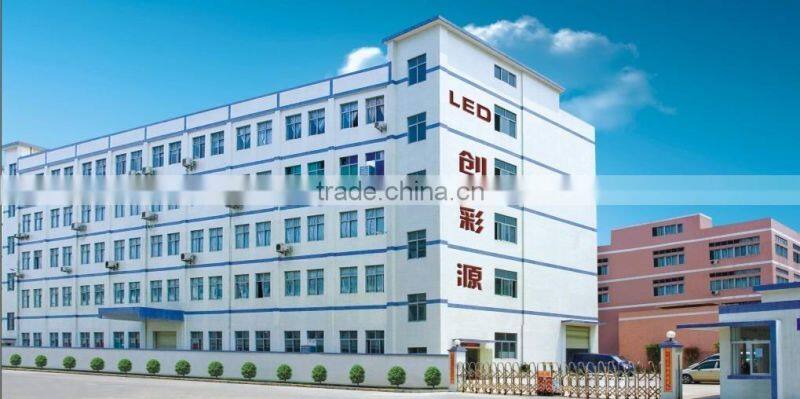

  • Our Factory



Hot TV studio curve led display screen linear led full color high refresh rate 2400Hz
