Newest Outdoor Ali Led Display Full Xxx Video p3

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

MHG

Model Number:

PH6

Contact Supplier Request Quote Chat Now

Hunan Minghe Opto Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Changsha or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name MHG

Model Number PH6

Usage Indoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 6mm

Specifications

newest outdoor ali led display full xxx video p3
1. CE, RoHs certificate
2. LED screen manufacturer
3. 1G1R1B

newest outdoor ali led display full xxx video p3 , compared with the traditional LED displays with black aluminum alloy, it makes many new performance advantages.

² The led screen cabinet size is 576mmx576mm with light weight. It could be carried by one hand, could be installed quickly within 10 Seconds.

² The cabinet adopts die-cast Aluminum material with only 65mm thickness, advantages in high strength, excellent ductility, and good precision and is difficult to deform.

² Module designed cabinet is easily assembled and installed at any location, its maintenance is very convenient.; New structural design meets for hanging and frame style installation, adapts to indoor and outdoor uses.

² The cabinet design is simplified to be compatible within different dot pixels; also it is with good cooling design without fan or air condition etc. which reduces cabinet weight, and lowers noise; low installation cost and low consumption save operating cost.

² The same size cabinet can be compatible with different specification displays of different dot pixels. (P3/P4.5/P4.8/P5.14/P6/P8/P9/P12).

Product Description

Specification and Parameter

Specification	LED Shape & Size	Module Size	Physical Density	Brightness	Power Consumption	Protection Ratings
P3	SMD2020	192*192mm	111111pixels/m²	2000cd/m²	2600W/m²	IP43
P4.5	SMD2020	128*128mm	49383pixels/m²	2000cd/m²	2000W/m²	IP43
P5.14	SMD3528	112*112mm	37809pixels/m²	2000cd/m²	800W/m²	IP43
P6	SMD3528	*9696mm**	27777pixels/m²	2000cd/m²	800W/m²	IP43
P6	SMD3535	*9696mm**	27777pixels/m²	5500cd/m²	1200W/m²	IP65
P8	SMD3528	72*72mm	15625pixels/m²	2000cd/m²	800W/m²	IP43
P8	SMD3535	72*72mm	15625pixels/m²	5500cd/m²	1200W/m²	IP65
P9	SMD3528	64*64mm	12346pixels/m²	1800cd/m²	800W/m²	IP43
P9	SMD3535	64*64mm	12346pixels/m²	5500cd/m²	1200W/m²	IP65
P12	SMD3528	48*48mm	6944pixels/m²	1500cd/m²	600W/m²	IP43
P12	SMD3535	48*48mm	6944pixels/m²	5500cd/m²	1000W/m²	IP65

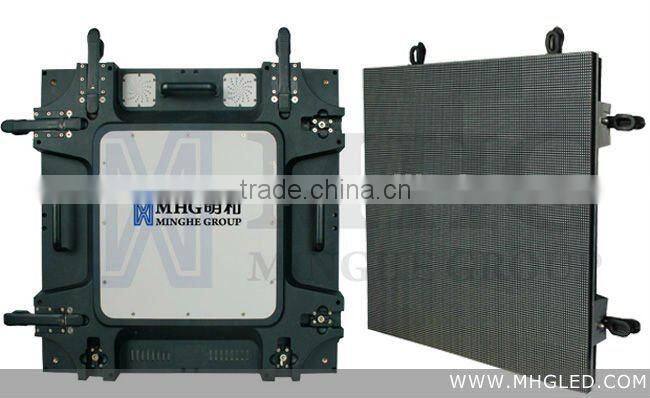

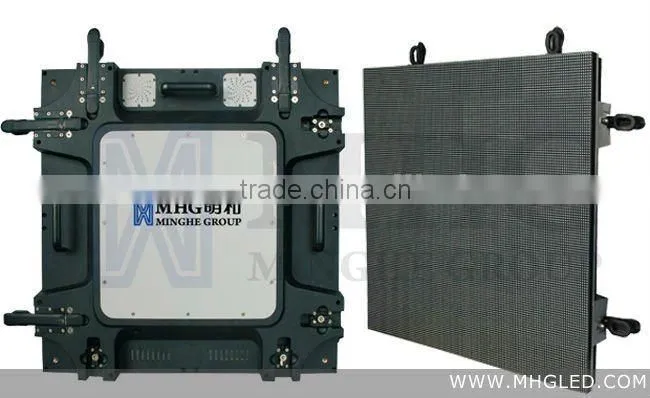

Items pictures

PH4mm Indoor full color LED display (TOP& BOT)

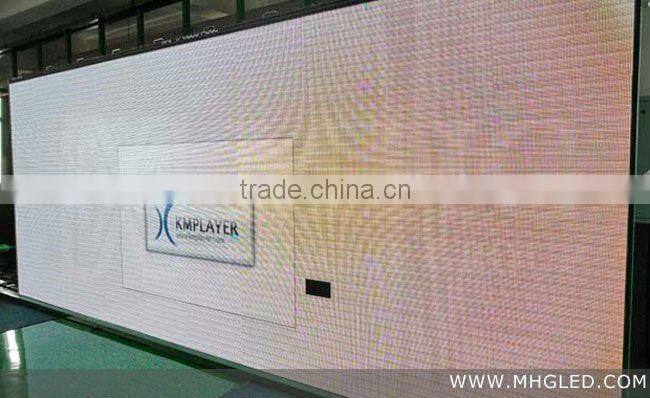

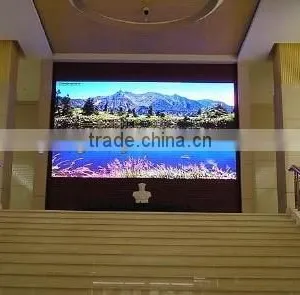

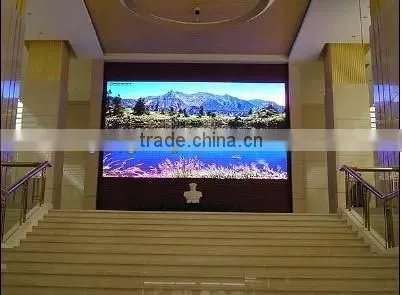

Display effect & Successful case

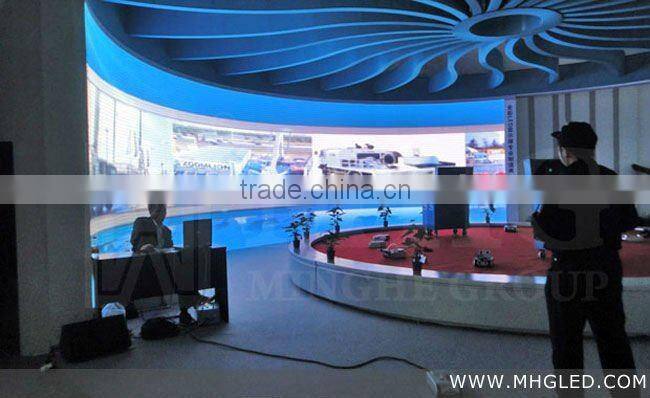

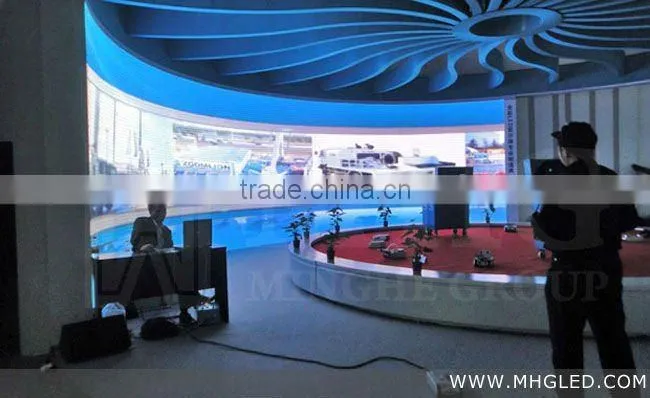

47.78 square metersLED screen Case for 2011 Science and Technology Achievements Transformation Fair

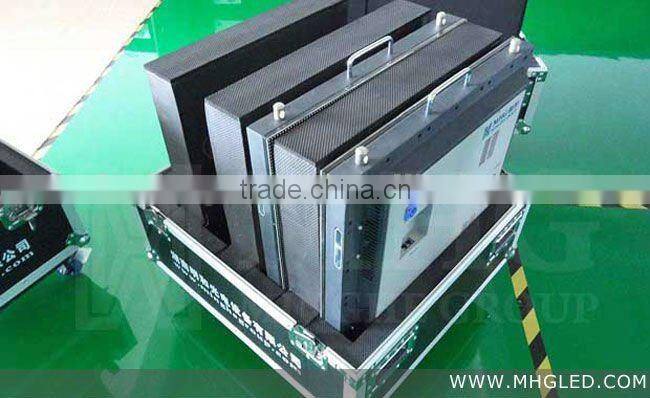

Package

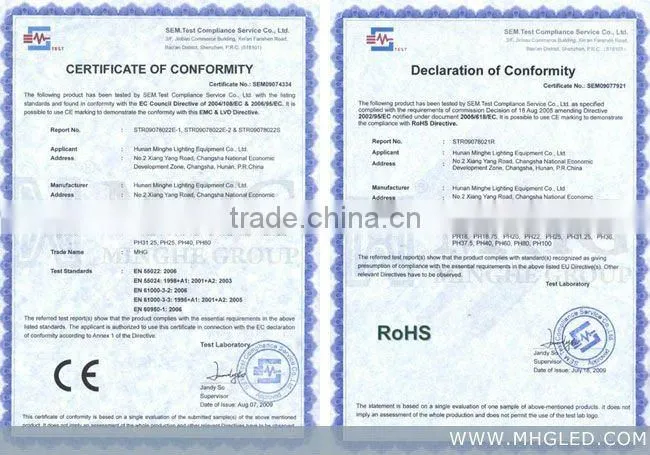

CE & Rohs certified

LED Display Workshop

About MHG

Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 produce lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.

And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
