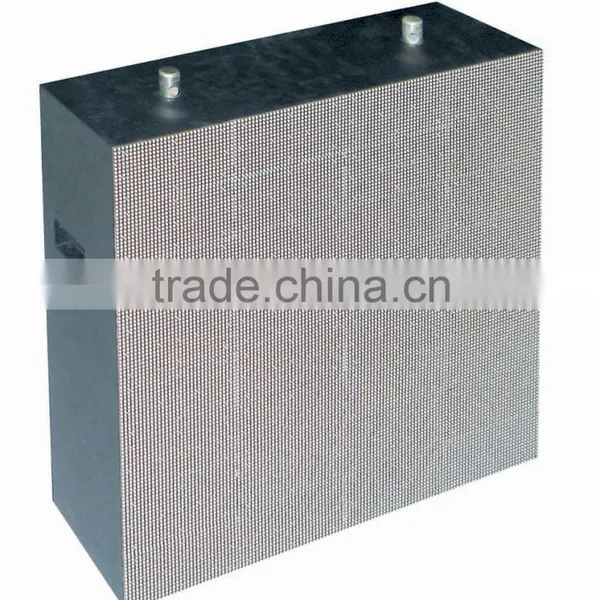

SMD Full-Color 3 in Line LED Display

US$ 1,000 - 2,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

MHG

Model Number:

SMD Full-Color 3 in Line

Hunan Minghe Opto Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name MHG

Model Number SMD Full-Color 3 in Line

Usage Indoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, PH8 & PH10 & PH12

Screen Dimension Customized Size

Item			PH8	PH10	PH12
Module Parameters		Physical Pitch	8mm	10mm	12mm
		Physical Density	15625pixels/m²	10000pixels/m²	6944pixels/m²
		LED Shape & Size	SMD 0805	SMD 0805	SMD 0805
		LED Arrangement	1R1G1B	1R1G1B	1R1G1B
		Module Size	256×128mm	160×160mm	192×192mm
		Module Resolution	32×16	16×16	16×16
		Drive Mode	Dynamic 1/8 Duty Constant Current	Dynamic 1/4 Duty Constant Current	Dynamic 1/4 Duty Constant Current
Display Parameters	Optical	Brightness	≥1100cd/m²	≥1000cd/m²	≥900cd/m²
		Contrast	≥2000:1	≥2000:1	≥2000:1
		View Angle, 50% Brightness	140°/140°	140°/140°	140°/140°
		Minimum View Distance	8m	10m	12m
		Grey Scale	10bits/1024levels
		Color Capacity	1.07billion
	Power	Maximum Power Consumption	780W/m²	825W/m²	650W/m²
		Ave. Power Consumption	260W/m²	280W/m²	210W/m²
		Operating Power Source	AC90-260V 50-60HZ
	Controller	Frame Frequency	60-85HZ
		Refresh Rate	240-1000HZ
		Brightness Adjustment	0-100% 8 levels automatic
		Gamma Correction	(-5.0-5.0)
		Correction Scale Level	16bits
		Color Temperature	5000-9300K
		Brightness Correction	Pixel, Module, Cabinet Correction
		Input Source Support	Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD_SDI
		Control Distance	UTP CAT5E: 100m; Multi-mode Fiber: 500m; Single-mode Fiber: 10km
	Reliability	Operating Temperature	(-40-+65^oC)
		Operating Humidity	10-90% RH
		Operating Life Span	100,000 Hours
		MTBF	5,000 Hours
		Protection Ratings	IP31
		Out of Control Rate	0.01%
