DLC218 truck scale, static hopper scale load cell
|

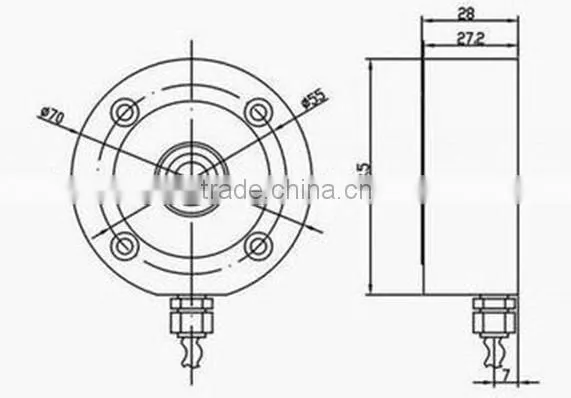

Model: DLC218 Category: button load cell Range: 5t,10t,20t,30t,40t,50t Dimension: 60*100/70*110mm Material: Alloy steel,stainless steel Application: truck scale,static hopper scale, compression test Characteristic: static hopper scale load cell, truck scale load cell | |||
| |||
Specification | |||
comprehensive error: |
0.1%FS |
output resistance: |
1050±5Ω |
Rated output: |
2.0±0.005mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
Non-linearity: |
0.1%FS |
Excitation voltage: |
9~12VDC |
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40℃ |
Repeatability: |
0.03%FS |
use temperature: |
-20~+55℃ |
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
Input resistance: |
1140±10Ω |
defend grade: |
IP66 & IP68 |
APPLICATION:
