DLC203B axle scale,warehouse scale load cell
|
Model: DLC203B Category: button load cell Range: 1t,2t,3t,5t,10t,20t,25t,30t Dimension: 105*67/121*80/121*85mm Material: Alloy steel,stainless steel Application: Axle scale,warehouse scale,experimental machine Characteristic: axle scale weighing sensor, experimental machine weighing | |||||||
|

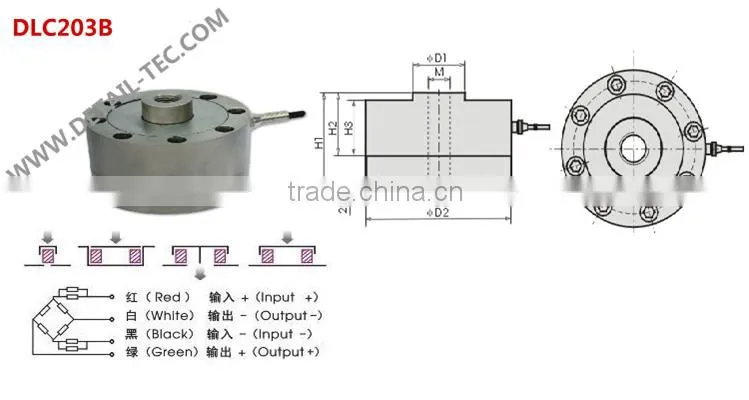

REF PIC | |||||||
other dimension | |||||||
Load(T) |
1~5 |
10 |
20 |
25 |
30 |
||
H1 |
67 |
80 |
85 |
85 |
85 |
||
H2 |
46 |
53.8 |
53.8 |
53.8 |
53.8 |
||
H3 |
34 |
41 |
47 |
47 |
47 |
||
M |
M16*1.5 |
M32*1.5 |
M32*1.5 |
M32*1.5 |
M32*1.5 |
||
D1 |
32 |
41 |
41 |
41 |
41 |
||
D2 |
105 |
121 |
121 |
121 |
121 |
||
Specification | |||||||
comprehensive error: |
0.03%FS |
output resistance: |
700±10Ω |
||||
Rated output: |
2±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||
Non-linearity: |
0.05%FS |
Excitation voltage: |
9~12VDC |
||||
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40ºC |
||||
Repeatability: |
0.02%FS |
use temperature: |
-20~+55ºC |
||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.03%FS/10ºC |
||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
||||
Input resistance: |
700±10Ω |
defend grade: |
IP66 |
||||
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

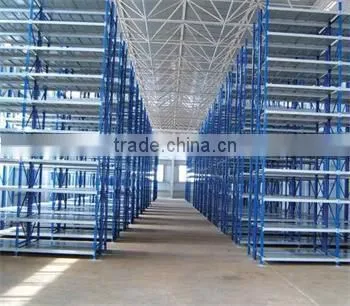

APPLICATION:
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
