DLC215C hopper scale, tank scaleload cell
|
Model: DLC215C Category: button load cell Range: 0.1t,0.2t,0.5t,1t,2t,5t,10t,20t,30t,50t Dimension: 50*7/90*12.5/115*12.5/155*15.5mm Material: Alloy steel,stainless steel Application: hopper scale,tank scale, compression test Characteristic: hopper scale sensor,tank scale sensor | |||||||||||||
|

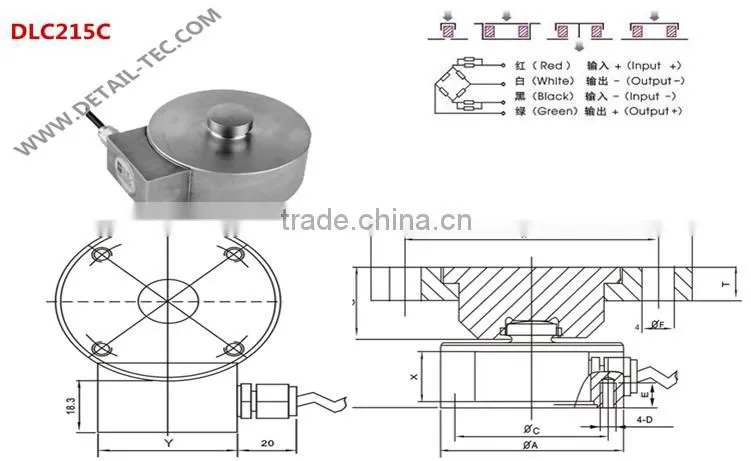

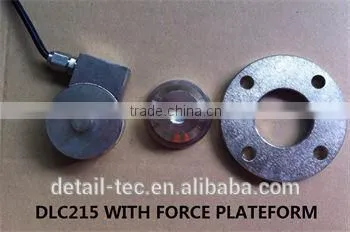

REF PIC | |||||||||||||
DIMENSION | |||||||||||||
LOAD T |
A |
B |
C |
D |
D1 |
E |
F |
G |
H |
T |
X |
||
0.05-1 |
50 |
89 |
42 |
M5 |
70 |
7 |
9 |
21 |
46 |
10 |
20 |
||
2-5 |
90 |
89 |
70 |
M10 |
70 |
12 |
9 |
21 |
64 |
10 |
30 |
||
10-20 |
115 |
110 |
90 |
M12 |
90 |
16 |
13 |
27.5 |
80 |
15 |
30 |
||
30-50 |
155 |
147 |
125 |
M16 |
120 |
20 |
17 |
50 |
133 |
22 |
30 |
||
Specification | |||||||||||||
comprehensive error: |
0.3%FS |
output resistance: |
703±5Ω |
||||||||||
Rated output: |
2.0±0.005mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||||
Non-linearity: |
0.05%FS |
Excitation voltage: |
9~12VDC |
||||||||||
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40℃ |
||||||||||
Repeatability: |
0.03%FS |
use temperature: |
-20~+55℃ |
||||||||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
||||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
||||||||||
Input resistance: |
750±10Ω |
defend grade: |
IP66 & IP68 |
||||||||||

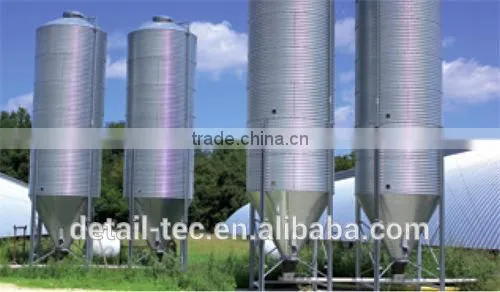

APPLICATION:
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
