DLC201 compression, force test load cell
|
Model: DLC201 Category: button load cell Range: 1t,2t,3t,5t,10t,15t,20t,30t,50t Dimension: 115*36/158*63/264*90mm Material: Alloy steel,stainless steel Application: Compression measurement,force test system. Characteristic: Compression load cell,force test load cell | |||||||||||
|

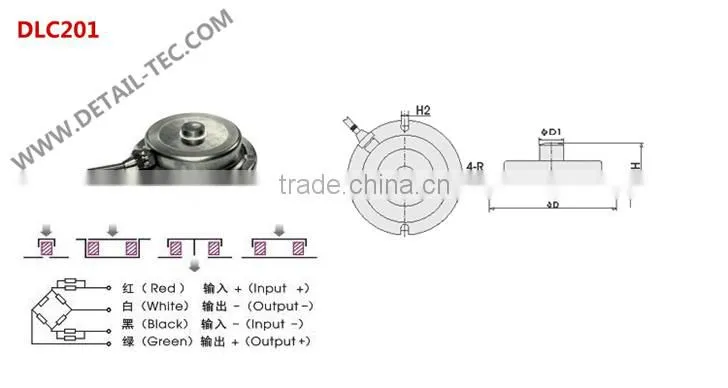

REF PIC | |||||||||||
other dimension | |||||||||||
Load(T) |
1 |
2 |
3~5 |
10 |
15 |
20 |
30 |
50 |
|||
D |
115 |
120 |
128 |
158 |
194 |
220 |
230 |
264 |
|||
D1 |
20 |
20 |
20 |
40 |
42 |
44 |
48 |
52 |
|||
D2 |
99 |
104 |
114 |
140 |
170 |
196 |
206 |
240 |
|||
H |
36 |
38 |
46 |
63 |
68 |
73 |
78 |
90 |
|||
H1 |
8 |
8 |
8 |
15 |
20 |
22 |
25 |
30 |
|||
B |
8.4 |
8.4 |
10.4 |
10.4 |
12.4 |
12.4 |
12.4 |
12.4 |
|||
Specification | |||||||||||
comprehensive error: |
0.03%FS |
output resistance: |
700±10Ω |
||||||||
Rated output: |
3±0.0006mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||
Non-linearity: |
0.03%FS |
Excitation voltage: |
9~12VDC |
||||||||
Hysteresis: |
0.02%FS |
compensated temp: |
-10~+40ºC |
||||||||
Repeatability: |
0.01%FS |
use temperature: |
-20~+55ºC |
||||||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.03%FS/10ºC |
||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
||||||||
Input resistance: |
700±10Ω |
defend grade: |
IP66 |
||||||||
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (7-25 days) according to your Qty
4.Customized size and spec/OEM available
APPLICATION:
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
