DLC204B force measure, compression test load cell
|
Model: DLC204B Category: button load cell Range: 25, 50,75,100, 250KG Dimension: 9.5*3.3mm Material: Alloy steel,stainless steel Application: force measure, compression test Characteristic: miniature compression load cell,miniature force load cell | |||
|

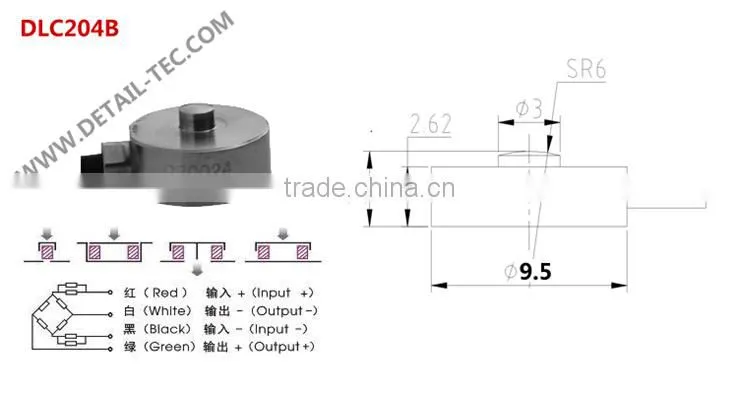

REF PIC | |||
Specification | |||
comprehensive error: |
0.5%FS |
output resistance: |
352±3Ω |
Rated output: |
0.3-2.0±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
Non-linearity: |
0.2%FS |
Excitation voltage: |
9~12VDC |
Hysteresis: |
0.2%FS |
compensated temp: |
-10~+40ºC |
Repeatability: |
0.05%FS |
use temperature: |
-35~+65ºC |
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.03%FS/10ºC |
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
Input resistance: |
370±10Ω |
defend grade: |
IP66 |
APPLICATION:
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
