DLC214 hopper scale, packing scale load cell
|
Model: DLC214 Category: button load cell Range: 10t,20t Dimension: 164*111/190*137mm Material: Alloy steel,stainless steel Application: hopper scales.,packing scale,Platform scale Characteristic: Platform scale load cell,Dynamic weighing load cell | ||||||||||||
|

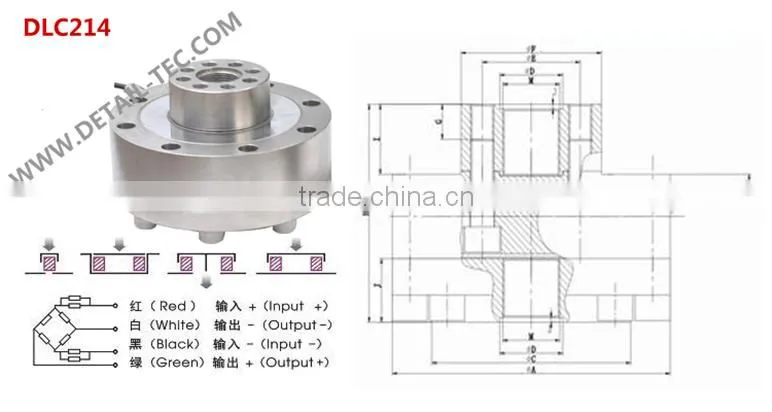

PIC REF | ||||||||||||
other dimension | ||||||||||||
LOAD |
A |
C |
D |
E |
F |
G |
H |
I |
J |
M |
||
10T |
D164 |
D118 |
D34 |
D52 |
D74 |
15 |
111 |
34 |
30 |
M30*2 |
||
20T |
D190 |
D136 |
D43 |
D67 |
D96 |
22 |
137 |
44 |
40 |
M39*2 |
||
Specification | ||||||||||||
comprehensive error: |
0.1%FS |
output resistance: |
352±5Ω |
|||||||||
Rated output: |
2.0±0.005mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
|||||||||
Non-linearity: |
0.05%FS |
Excitation voltage: |
9~12VDC |
|||||||||
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40℃ |
|||||||||
Repeatability: |
0.03%FS |
use temperature: |
-20~+55℃ |
|||||||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
|||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
|||||||||
Input resistance: |
400±10Ω |
defend grade: |
IP66 & IP68 |
|||||||||

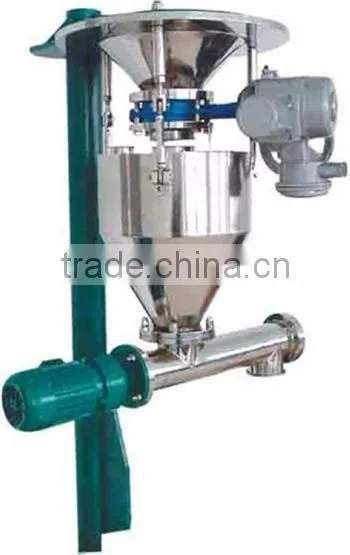

APPLICATION:
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
