DLC132 crane scale load cell / steel embody scale load cell
|
Model: DLC132 Category: Bridge Load Cell Range: 50,60,75,100KLB Dimension: 260*51.5mm Material:Alloy steel,stainless steel Application: crane scale,steel embody scale, lifting weight limited Characteristic: crane scale load cell,steel embody scale load cell | |||
|

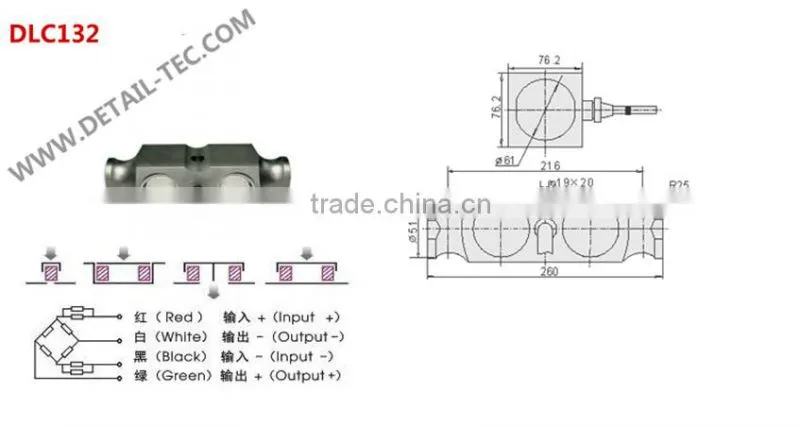

PIC REF | |||
Specification | |||
comprehensive error: |
0.017%FS |
output resistance: |
700±5Ω |
Rated output: |
3±0.003mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
Non-linearity: |
0.017%FS |
Excitation voltage: |
9~12VDC |
Hysteresis: |
0.02%FS |
compensated temp: |
-10~+40℃ |
Repeatability: |
0.01%FS |
use temperature: |
-20~+55℃ |
Creep: |
0.02%FS/10MIN |
temp effect on zero: |
0.02%FS/10℃ |
Zero balance: |
±1%FS |
Temp effect on span: |
0.014%FS/10℃ |
Input resistance: |
700±10Ω |
defend grade: |
IP66 & IP68 |

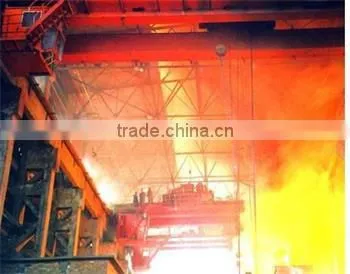

APPLICATION:
Why you choose our company?
* We have competitive price and good quality in load cell, Pressure Transmitter, Pressure Transducer,
Temperature Sensor, Pressure Control Instrument, Temperature Control Instrument and Weight Control
Instrument.
* We believe that the price of our products are reasonable,we guarantee the quality and ensure After-sale
service of our products .
*If you are interested in any products,please contact us freely,we hope to cooperate with you,we will try
our best to provide our perfect service to you.
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
