DLC204G mini force measure, compression test load cell
|
Model: DLC204G Category: button load cell Range: 5kg,10kg,20kg,50kg,100kg,200kg Dimension: 20*10/20*11mm Material: Alloy steel,stainless steel Application: miniature compression test,miniature force test Characteristic: miniature compression sensor,miniature force sensor | |||||||||
|

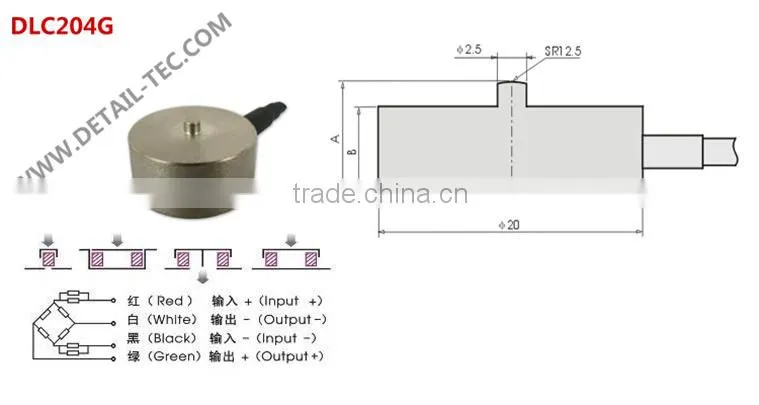

REF PIC | |||||||||
other dimension | |||||||||
kg |
5 |
10 |
20 |
50 |
100 |
200 |
|||
A |
10 |
11 |
11 |
11 |
11 |
11 |
|||
B |
8 |
9 |
9 |
9 |
9 |
9 |
|||
Specification | |||||||||
comprehensive error: |
0.2%FS |
output resistance: |
350±5Ω |
||||||
Rated output: |
1±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||
Non-linearity: |
0.2%FS |
Excitation voltage: |
9~12VDC |
||||||
Hysteresis: |
0.2%FS |
compensated temp: |
-10~+40ºC |
||||||
Repeatability: |
0.1%FS |
use temperature: |
-20~+55ºC |
||||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10ºC |
||||||
Zero balance: |
±5%FS |
Temp effect on span: |
0.05%FS/10ºC |
||||||
Input resistance: |
350±5Ω |
defend grade: |
IP66 |
||||||
APPLICATION:
Why you choose our company?
* We have competitive price and good quality in load cell, Pressure Transmitter, Pressure Transducer,
Temperature Sensor, Pressure Control Instrument, Temperature Control Instrument and Weight Control
Instrument.
* We believe that the price of our products are reasonable,we guarantee the quality and ensure After-sale
service of our products .
*If you are interested in any products,please contact us freely,we hope to cooperate with you,we will try
our best to provide our perfect service to you.
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
