DLC152 railway scale load cell
- 5000 Piece / Pieces per Month
- ShenZhen GuangZhou ChangSha
- T/T Credit Card
Product Details
Place of Origin: | Hunan, China | Brand Name: | DETAIL | Model Number: | DLC152 |
Type: | Other | Power Supply: | 9-36VDC | Accuracy: | 0.1%FS |
Product Description
DLC152 railway scale load cell
Model: DLC152 Category: Bridge load cell Range: 5t Dimension: 816*150*94mm Material: Alloy steel,stainless steel Application: static light railway scale Characteristic: Bridge load cell,railway scale sensor | |||

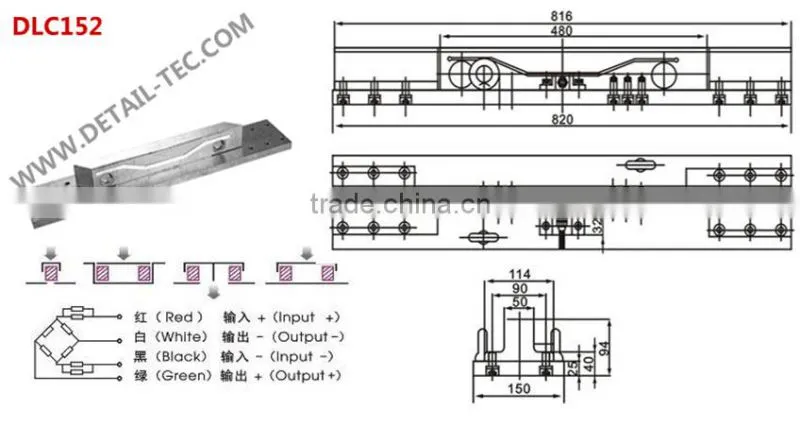

REF PIC | |||
Specification | |||
comprehensive error: | 0.1%FS | output resistance: | 702±5Ω |
Rated output: | 1±0.005mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
Non-linearity: | 0.1%FS | Excitation voltage: | 9~12VDC |
Hysteresis: | 0.1%FS | compensated temp: | -10~+40℃ |
Repeatability: | 0.03%FS | use temperature: | -20~+55℃ |
Creep: | 0.03%FS/10MIN | temp effect on zero: | 0.05%FS/10℃ |
Zero balance: | ±1%FS | Temp effect on span: | 0.05%FS/10℃ |
Input resistance: | 750±10Ω | defend grade: | IP66 & IP68 |

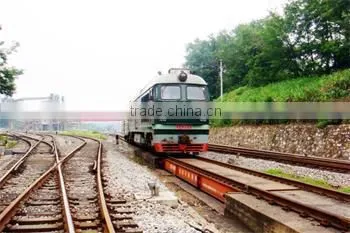

APPLICATION:
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-20 days) according to your Qty
4.Customized size and spec/OEM available
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
