DLC133 crane scale load cell / steel embody scale load cell
|
Model: DLC133 Category: Bridge Load Cell Range: 1, 5, 10, 25, 50, 75KLB Dimension: 190.5*31.5/ 222.3*50.8/ 343*76.2mm Material:Alloy steel,stainless steel Application: crane scale,steel embody scale,lifting weight limited Characteristic: crane scale load cell,steel embody scale load cell | |||||||||||
|

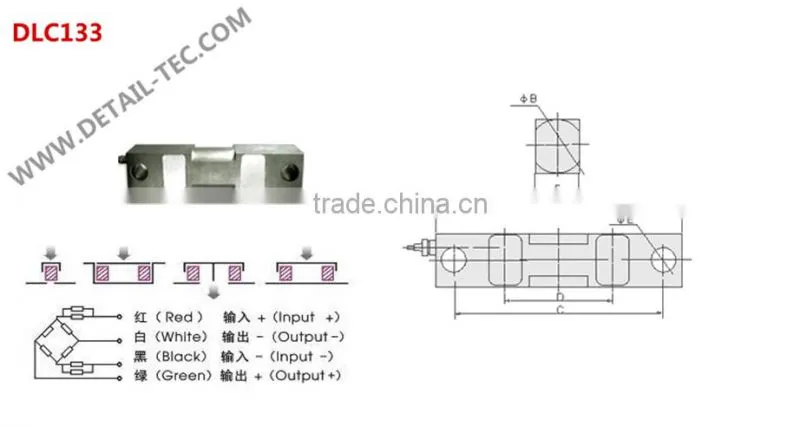

PIC REF | |||||||||||
other dimension | |||||||||||
Load(klb) |
A |
B |
C |
D |
E |
F |
H |
|
|||
1~5 |
190.5 |
31.5 |
158 |
30.5 |
12.7 |
31.8 |
31 |
|
|||
10~35 |
222.3 |
50.8 |
190.5 |
42 |
20.6 |
36.5 |
49 |
|
|||
35~75 |
343 |
76.2 |
292 |
82.5 |
33.5 |
62 |
75 |
|
|||
Specification | |||||||||||
comprehensive error: |
0.03%FS |
output resistance: |
700±10Ω |
||||||||
Rated output: |
3±0.0006mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||
Non-linearity: |
0.03%FS |
Excitation voltage: |
9~12VDC |
||||||||
Hysteresis: |
0.02%FS |
compensated temp: |
-10~+40℃ |
||||||||
Repeatability: |
0.01%FS |
use temperature: |
-20~+55℃ |
||||||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.03%FS/10℃ |
||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10℃ |
||||||||
Input resistance: |
700±10Ω |
defend grade: |
IP66 |
||||||||
APPLICATION:
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
