DLC131 truck scale load cell / railway scale load cell
|
Model: DLC131 Category: Bridge Load Cell Range: 5t, 5t, 7.5t, 10t, 15t, 30t, 50t Dimension: 210*64*51/292*76*51/368*99*74mm Material:Alloy steel,stainless steel Application: truck scale, railway scale, warehouse scale, floor scale Characteristic: Bridge load cell,railway scale sensor | |||||||||||
|

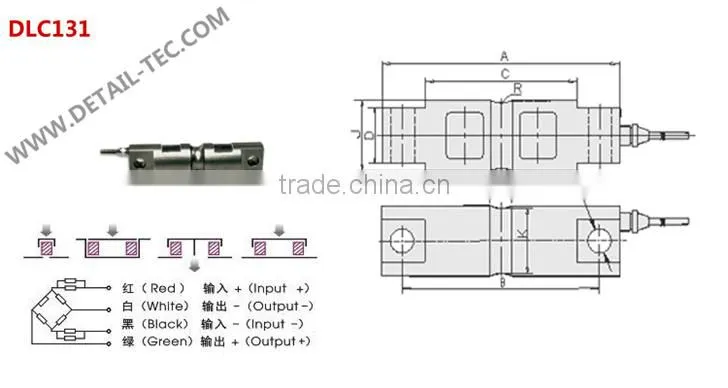

REF PIC | |||||||||||
other dimension | |||||||||||
Load(klb) |
A |
B |
C |
D |
E |
R |
J |
H |
|||
5~10 |
206.2mm |
174.7mm |
133.2mm |
28.4mm |
15.7mm |
R12.7mm |
43.2mm |
16.8mm |
|||
15~20 |
206.2mm |
174.7mm |
133.2mm |
28.4mm |
21.3mm |
R12.7mm |
49.5mm |
16.8mm |
|||
30~60 |
206.4mm |
215.9mm |
165mm |
60.2mm |
25.4mm |
R25.4mm |
76.2mm |
27mm |
|||
Specification | |||||||||||
comprehensive error: |
0.2%FS |
output resistance: |
700±10Ω |
||||||||
Rated output: |
3±0.03mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||
Non-linearity: |
0.017%FS |
Excitation voltage: |
9~12VDC |
||||||||
Hysteresis: |
0.02%FS |
compensated temp: |
-10~+40℃ |
||||||||
Repeatability: |
0.01%FS |
use temperature: |
-20~+65℃ |
||||||||
Creep: |
0.02%FS/10MIN |
temp effect on zero: |
0.02%FS/10℃ |
||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.014%FS/10℃ |
||||||||
Input resistance: |
700±10Ω |
defend grade: |
IP66 & IP68 |
||||||||
APPLICATION:
Why you choose our company?
* We have competitive price and good quality in load cell, Pressure Transmitter, Pressure Transducer,
Temperature Sensor, Pressure Control Instrument, Temperature Control Instrument and Weight Control
Instrument.
* We believe that the price of our products are reasonable,we guarantee the quality and ensure After-sale
service of our products .
*If you are interested in any products,please contact us freely,we hope to cooperate with you,we will try
our best to provide our perfect service to you.
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
