Help CenterIndoor PH16 LED Curtain Wall
Related Products
-
Curtain Wall Indoor Led ScreenUS$ 500 - 1,000MOQ: 1 Square Meter -
Single Color Led ScreenUS$ 800 - 2,000MOQ: 1 Square Meter
-
SMD Full-Color 3 in 1 LED DisplayUS$ 500 - 800MOQ: 1 Square Meter
-
P5 High Definition Video Led ScreenUS$ 500 - 5,000MOQ: 1 Square Meter
-
PH16 Mesh Screen IndoorUS$ 500 - 600MOQ: 10 Square Meters
Indoor PH16 LED curtain wall has a light construction that is easy for installation, with competitive price and medium brightness. The web construction is specialized for fixing on the curtain wall of the building. The led lamp adopts the method ofφ5 DIP encapsulation which makes the led chip with more brightness and good heat radiating effect.
LED curtain wall is fit for digital stages in studios, and presents virtual scenes. It reveals unique artistic charming through the special design features. It’s easy to install and disassemble and is cost-effective, specially suitable for large scale scene display.
| physicalpitch | 16mm | operationg power source | AC90-260V 50-60HZ |
| physical density | 3906pixels/m2 | frame frequency | 60-85HZ |
| led shape & size | SMD 3 IN 1 | refresh rate | 120-800HZ |
| led arrangement | 1G1R1B | brightness adjustment | 0-100% 8 levels automatic |
| caninet size/ weight | 512 X 512 X 40mm; 6kgs | gama conrrection | (-5.0~5.0) |
| cabinet resolution | 32 X 32 | correction scale level | 16 bits |
| drive mode | static | color temperature | 5000-9300k |
| brightness | ≥1800cd/m2 | brightness correction | pixel, module, cabinet correction |
| transparency ratio | 30% | input source support | composite, S-Video, componet, VGA, DVI, HDMI, SDI, HD_SDI |
| contrast | ≥2000:1 | control distance | UTP CAT5E:100m, Multi-mode fiber: 500m, Single mode fiber: 10km |
| view angle, 50% brightness | 140°/ 140° | operating temperature | (-40°~ +65°) |
| minimum view distance | 16m | operating humidity | 10-90% |
| gray scale | 8bits/ 256levels | operating life span | 100,000hours |
| color capacity | 16.7billion | MTBF | 5000hours |
| maximum power consumption | 250w/ m2 | protection rate | IP31 |
| ave. power consumption | 100w/ m2 | out of control rate | 0.01% |

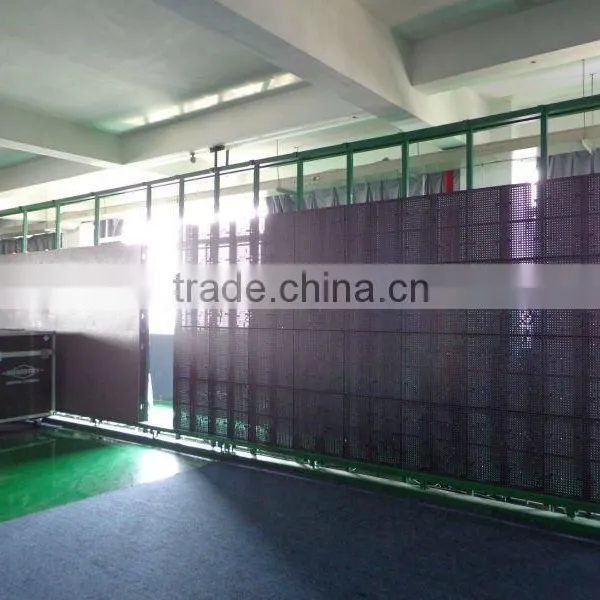

Indoor PH16 LED curtain wall effect:

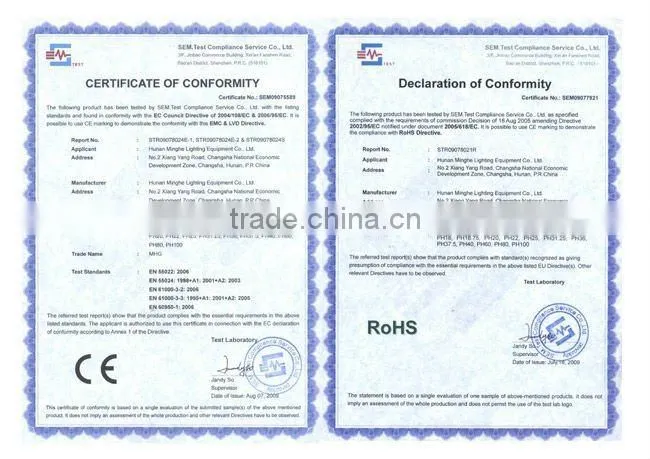

CE & ROHS certified:
About MingHe
MingHe is a professional manufacturer of LED display,stage lighting. All of our products passed the ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications. it is established in 2001, the member of China Entertainment Association.

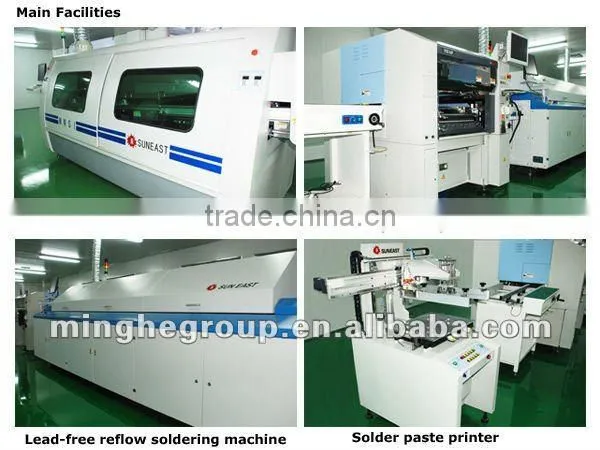

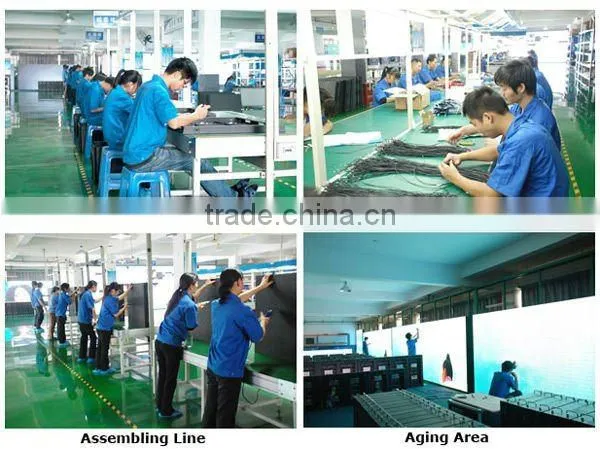

MHG LED DISPLAY WORKSHOP
And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
Based on innovative technology & HR oriented service tenet, we will keep on innovating to meet the ever-changing market, and we will keep on cooperating with our customers with faith and dedication to build up a brilliant and splendid stage life together.
