Established in 2001, is a professional manufacturer of LED display,stage lighting, theatrical & TV Studios equipments, and especially an expert in designing, installing and debugging of professional lighting & Display projects.
We are the member of China Entertainment Association, Seminar of China Television Broadcasting Institution, and Society of China Illumination. Our factory passed the ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications
MHG LED DISPLAY SMT WORKSHOP:
MHG PH25 indoor Curtain wall
1.Measured by the China ETA Quality Inspection ,CE,FCC,ROHS,ISO9001/2008 etc
2.This modle Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places until now.
Specifications:
| LED DISPLAY TYPE | PH25 curtain wall (INDOOR) | ||
| Pixel pitch | 25mm | Frame frequency | 60-85HZ |
| Physical density | 1600 pixels/m2 | Refresh rate | 240-1000HZ |
| LED configuration | 5mm Oval Lamp | Brightnessd adjustment | 0-100% 8 levels automatic |
| Physical density | 1R1G1B | Gamma correction | -5.0-5.0 |
| cabinet size | 800*800*40mm | Correction scale level | 16bits |
| Module resolution | 32*32 | Color temperature | 5000-9300k |
| Drive mode | Dynamic 1/2 Duty constant current |
Brightness correction | Pixel,module, cabinet correction |
| Brightness | ≥2000cd/m2 | Contrast | ≥2000:1 |
| Control distance | UTP CAT5E:100m,muti-mode fiber:500m single-mode fiber:10km |
Input source support | composite,S-video,component, VGA,DVI,HDMI,SDI,HD SDI |
| View angle | 140./140 | Operating temperature | -40-65.C |
| Minimum view distance | 25m | Operating humidity | 10-90% RH |
| Grey scale | 10bits/1024 levels | Operating life span | 100,000 Hours |
| Color capacity | 16.7 million | MTBF | 5000 hours |
| Maximum power consumption | 300w/M2 | Protection ratings | IP31 |
| Ave power consumption | 100w/M2 | Out of control rate | 0.01% |
| Operationg power source | AC90-260V 50-60 HZ | ||

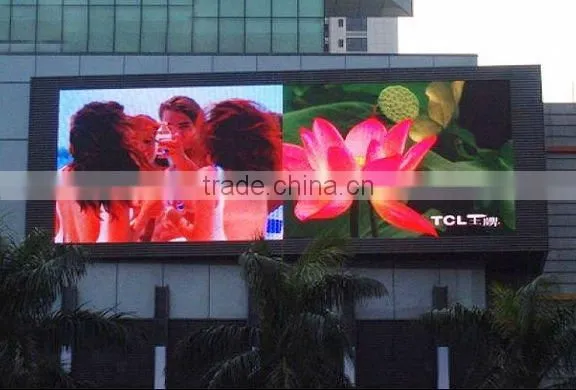

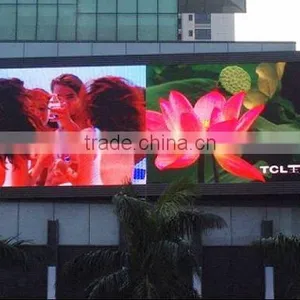

MHG SUCCESSFUL CASES:
