Advanced design machine gold mining

Name: Advanced design machine gold mining
Brand: Shuguang
Price: USD $2,997 - 187,700 / Set

FOB Price

USD $2,997 - $187,700 / Set

1 Set(Min.Order)

Supply Ability 80 Set / Sets per Month
Port Qingdao or any port as the customer requires
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, stone production line, Jaw Crusher,Impact Crusher etc.	Application:	ore,stone,coal,quarry,rock primary or secondary crushing stage, Mining,Quarry,Chemical Industry
Motor Type:	AC Motor	Power(W):	it depends on the model	Capacity(t/h):	10-1000tph, 1-1000
Place of Origin:	Henan, China	Brand Name:	Shuguang	Model Number:	Stone production line
Dimension(LWH):	Depends on the model	Weight:	As required, 20t	Certification:	CE & ISO
Warranty:	one year, 12 months	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Advanced design machine gold mining

The Jaw Crusher technical datas:

Model	Feed size(mm)	Max feeding size(mm)	Production(t/h)	Speed(r/min)	Power(kw)	Weight(t)	Dimensions (mm)
PE-150*250	150*250	125	1-3	250	5.5	0.8	720660850
PE-200*300	200*300	180	2-6	260	7.5	1.2	910750990
PE-200*350	200*350	180	3-10	260	11	1.5	1000870990
PE-250*400	250*400	210	5-20	300	15	2.7	130010901270
PE-400*600	400*600	340	16-60	275	30	7	173017301630
PE-500*750	500*750	425	40-110	275	55	12	198020801870
PE-600*750	600*750	500	80-240	275	55	15.8	207020001920
PE-600*900	600*900	500	50-180	250	55	17	219022062300
PE-750*1060	750*1060	630	110-320	250	90-110	29	266024302800
PE-800*1060	800*1060	640	130-330	250	110	29.8	271024302800
PE-830*1060	830*1060	650	150-336	250	110	30.7	274024302800
PE-870*1060	870*1060	660	190-336	250	110	31.5	281024302800
PE-900*1060	900*1060	685	230-390	250	110	33	287024202940
PE-900*1200	900*1200	750	220-450	200	110	52	338028703330
PE-1000*1200	1000*1200	850	315-500	200	110	55	348028763330
PE-1200*1500	1200*1500	1020	400-800	180	160	100.9	420033003500
PEX-150*750	150*750	120	8-25	320	15	3.8	120015301060
PEX-250*750	250*750	210	13-25	330	30	5.5	138017501540
PEX-250*1000	250*1000	210	16-52	330	30	7	156019501390
PEX-250*1200	250*1200	210	20-61	330	37	9.7	214016601500
PEX-300*1300	300*1300	250	16-105	300	55	15.6	272019501600

The Impact Crusher Technical Datas:

Model	Specification(mm)	Feed size(mm)	Max. Feeding size(mm)	Capacity(t/h)	Motor power(kw)
PF-0607	644*740	320*770	100	10-20	30
PF-0807	850*700	400*730	300	15-30	30-45
PF-1008	1000*800	400*830	300	30-50	37-55
PF-1010	1000*1050	400*1080	350	50-80	55-75
PF-1210	1250*1050	400*1080	350	70-120	110-132
PF-1212	1250*1250	400*1300	350	100-150	132-160
PF-1214	1250*1400	400*1430	400	130-180	160-200
PF-1315	1320*1500	860*1520	500	160-250	180-260
PF-1320	1320*2000	860*2030	500	300-350	300-375

The Advantage:

1.Advanced Manufacture process and high-end fabrication material

2.Heavy rotor design and tight test method improve the rotor performance.

3.Overall type cast steel structure bearing base improves anti load resistance capacity.

The Application:

it is available for artifical sand making or processing hard limestone,granite,basalt,cobble and other aggregates, and it’s widely used in power industry, building materials processing, road building, and construction industry and other fields. Its output is generally 50-500 t/h.

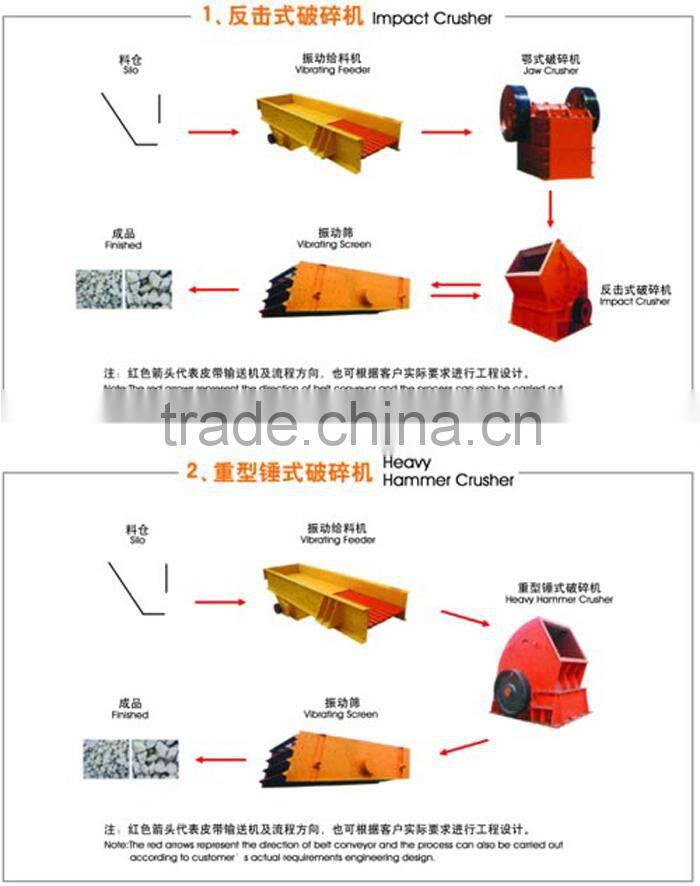

The Working procedure:

1.Big materials are evenly sent to jaw crusher by vibrating feeder for coarse crushing.

2.The coarse materials is fed to impact crusher for crushing again.

3.The materials is transfered to vibrating screen and classified.

4.The parts which can meet the customer’s requirements can be the final products, and unqualfied parts will be returned to impact crusher for crushing again.

The Feeder:

The Jaw Crusher:

The Impact Crusher:

The Vibrating Screen:

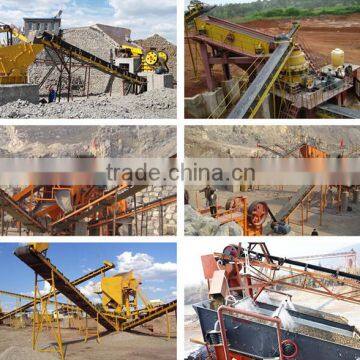

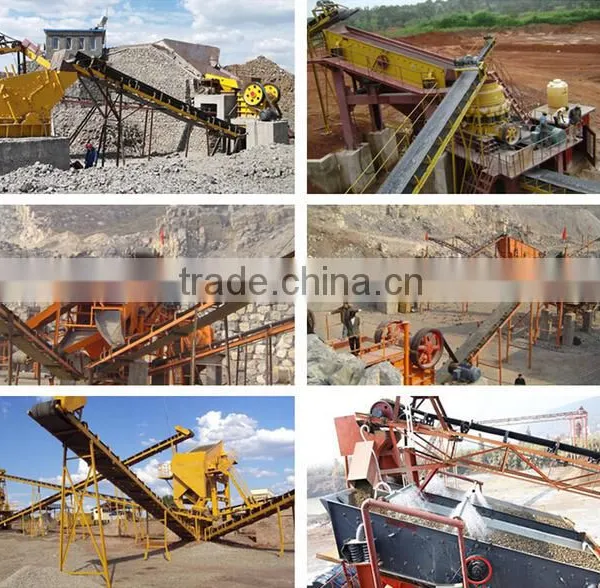

The Stone Production Line:

Packaging & Shipping

About US:

Zhengzhou Shuguang Heavy Machinery Co.,Ltd. is founded in 1993,which is a specialized enterprise dedicated to R&D and production of the Raymond mill,calcium powder machine,all kinds of crushing machines and mixer.Our company has excellent technical equipment and dozens of various machinery and equipment.Dozens of excellent technical employees are responsible for R&D and production of the company’s products.

If you are interested in our stone production line , pls contact us asap, besides,pls tell me some information as follows in your enquiry:

1:what"s the raw material

2:what size is your raw material?

3:what is your capacity?

4: About the final product , what is your requirements ?

If you're interested in our products, please contact us by following details.

Warmly welcome to visit our factory!!!
