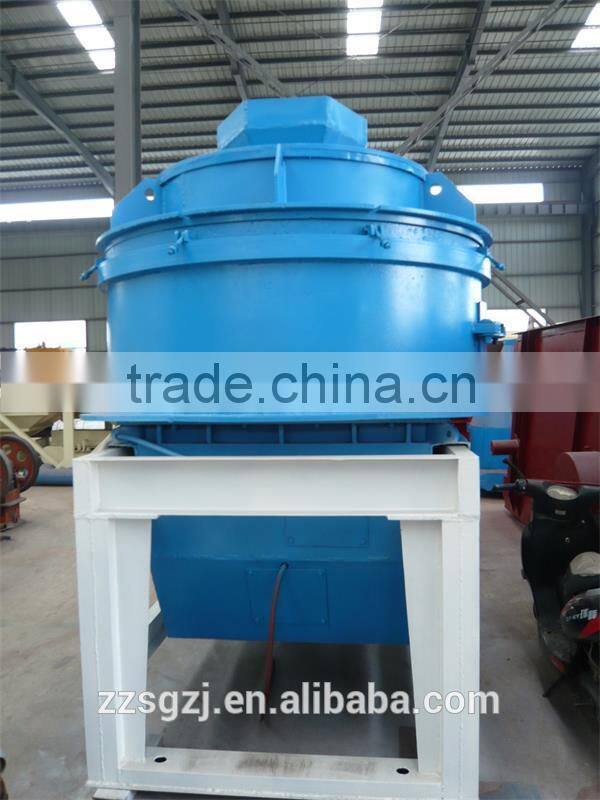

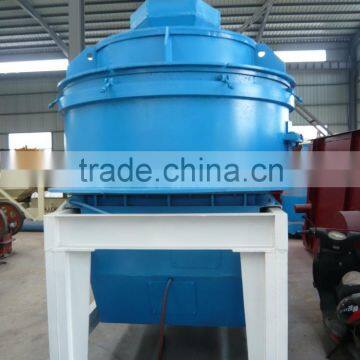

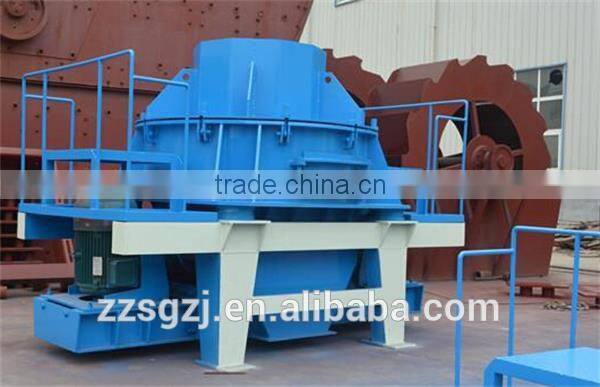

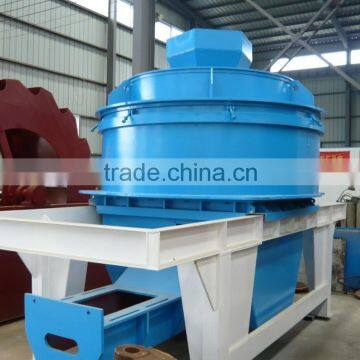

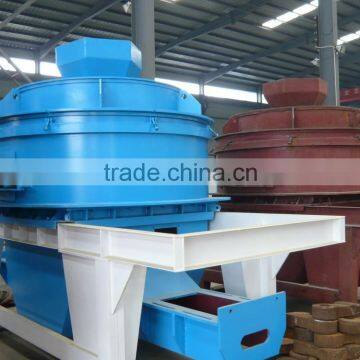

Hot sale sand making machines plant
Application of sand making machines plant
1.Sand making machine is widely used for breaking medium degree of hardness and brittle materials,
such as, various types of rocks,abrasive,refractory,cement clinker,quartz stone,iron ore,concrete
aggregate,etc, especially available for architectural sand and road sand.
2.Sand making machine is also suitable for high purity materials, such as,quartz sand, glass and other
material.
3.Capacity 10-500t/h, it can almost satisfy any requirements.
Working principle of sand making machines plant
1.Materials enters feeding hopper,and then it is divided into two parts by distributor.
2.One part enters high-speed rotating impeller, the other falls down from the outside of distributor.
3.Materials,which is thrown out by the impeller at the speed of 60-70m/s,hit the materials from the outside of distributor.
4.In this way, materials is crushed.
Features of sand making machines plant
1.Simple structure,low cost.
2.High broken rate,energy saving.
3.It has the functions of fine crushing and coarse crushing, and suitable for medium degree of hardness and
ultrahard materials.
4.Little dust pollution,Less than 75 db of the noise.
5.Cubic shape,big bulk,little iron pollution.
Technical data of sand making machines plant
Model |
Speed of impeller (r/min) |
Max.feeding size(mm) |
Capacity(t/h) |
Power(kw) |
Weight(t) |
Overall dimensions (mm) |
600 |
2000-3000 |
30 |
12-30 |
2×30 |
5.6 |
2800×1500×2030 |
750 |
1500-2500 |
35 |
25-55 |
2×45 |
7.3 |
3300×1800×2440 |
900 |
1200-2000 |
40 |
55-100 |
2×55 |
12.1 |
3750×2120×2660 |
900 |
1000-1450 |
40 |
65-130 |
2×75 |
13.6 |
3750×2300×2090 |
1050 |
1000-1700 |
45 |
100-160 |
2×(90-110) |
16.9 |
4480×2450×2906 |
1250 |
850-1450 |
45 |
160-300 |
2×(132-180) |
22 |
4563×2650×3716 |
1350 |
800-1193 |
50 |
200-360 |
2×(180-220) |
26 |
5340×2940×3650 |
About factory
Zhengzhou Shuguang heavy machinery, which is a professional manufacturer of many types of
crushers, such as,Jaw crusher,impact crusher,hammer crusher,roller crusher,sand making machine,
and other crushing equipments, Besides that, we can also supply grinding mills, rotary dryer, coal
gasifier,etc.
