Highly appreciated small type rock crushing equipment

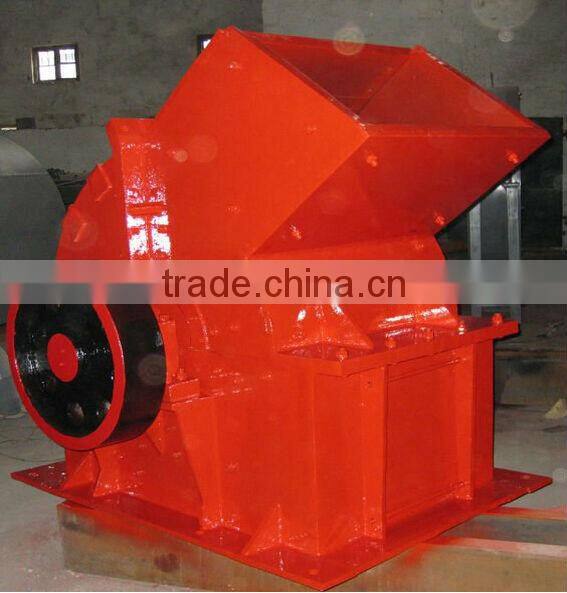

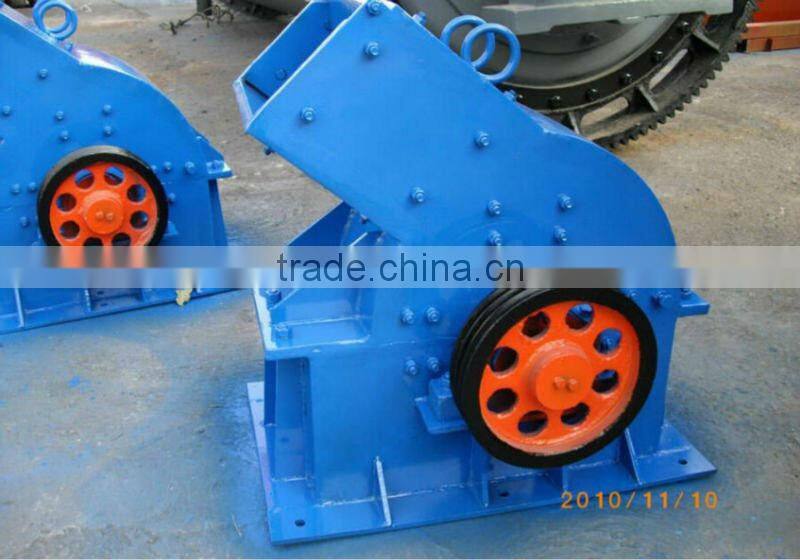

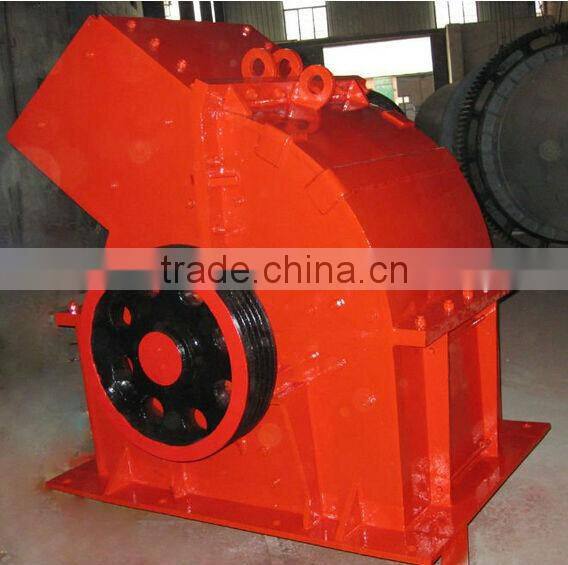

Brief Introduction of Hammer Crusher |
|
Hammer Crusher is mainly used for crushing medium-hard or brittle materials with hardness not more than 200Mpa and 15%moisture, such as coal, cement, gypsum, alumen, brick, tile, limestone, etc. It has the features of simple structure, big crushingratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requirement. hammer crusher hammer mill |
Feature: |
|
Hammer crusher has compact structure and reasonable layout; It is convenient to install, and easy to operate and maintain; hammer crusher hammer mill It can crush large, medium and small sized stones, and has high reduction ratio; The crushing machine is quite suitable for cement plants; It can adjust dimensions of the output granularity according to customers’ requirement. |
Technical data |
Type |
Speed (r/min) |
Feed size(mm) |
Discharge size(mm) |
Capacity (t/h) |
Weight (t) |
Power (kw) |
Dimensions(mm) |
PC-400*300 |
1150 |
≤100 |
0-40 |
5-10 |
0.8 |
11 |
812*982*785 |
PC-500*350 |
1250 |
≤ 100 |
0-40 |
8-15 |
1.2 |
18.5 |
1200*1114*1114 |
PC-600*400 |
1000 |
≤ 220 |
0-40 |
10-25 |
1.5 |
22 |
1055*1022*1122 |
PC-800*900 |
880 |
≤350 |
0-40 |
20-50 |
3.1 |
55 |
1360*1330*1026 |
PC-800*800 |
680 |
≤ 350 |
0-40 |
20-70 |
5.5 |
75 |
1440*1740*1101 |
PC-800*600 |
880 |
≤550 |
0-50 |
10-50 |
3.8 |
55 |
1400*1300*1500 |
PC-800*800 |
620 |
≤600 |
0-60 |
20-70 |
6.5 |
75 |
1820*1660*1770 |
PC-1000*800 |
420 |
≤800 |
0-80 |
20-120 |
7.8 |
90 |
2565*1720*2035 |
PC-1000*1000 |
400 |
≤800 |
0-80 |
30-150 |
8.5 |
132 |
276*1820*2350 |
| Hammer crusher working principle |
|

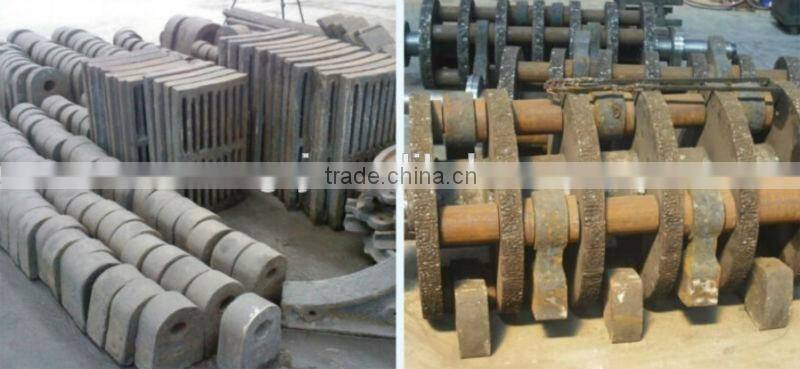

1.In the hammer mill machine,the motor drives the rotor to rotate at a high speed through the belt,and on the rotor there are series of hammers. 2.When the materials get into the working area of hammers,the rotating hammers with high rotation speed are crushing them. 3.The crushed products meeting the required size can be discharged by the outlet and become the final products. 4.The large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size. hammer crusher hammer mill |
