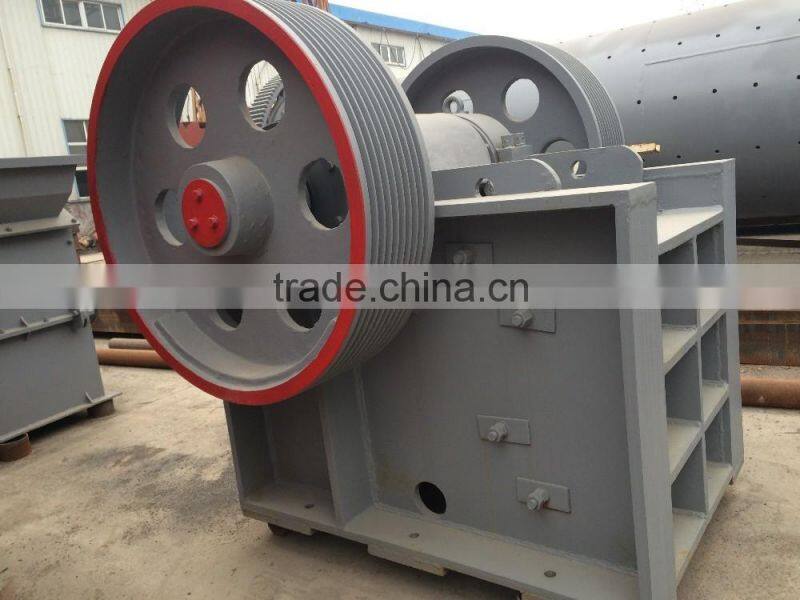

Shuguang good performance 30ton per hour slag crusher
PE series jaw crusher is ideally suitable for primary and secondary crushing. It is widely used in mining, metallurgy, construction, highway, railway, irrigation and chemical industries, and our jaw crusher have the features of high reduction ratio, even powder sizes, low power consumption and easy maintenance. The crushing strength of the jaw crusher materials is up to 320 Mpa. It is easy to install, operate and maintain.

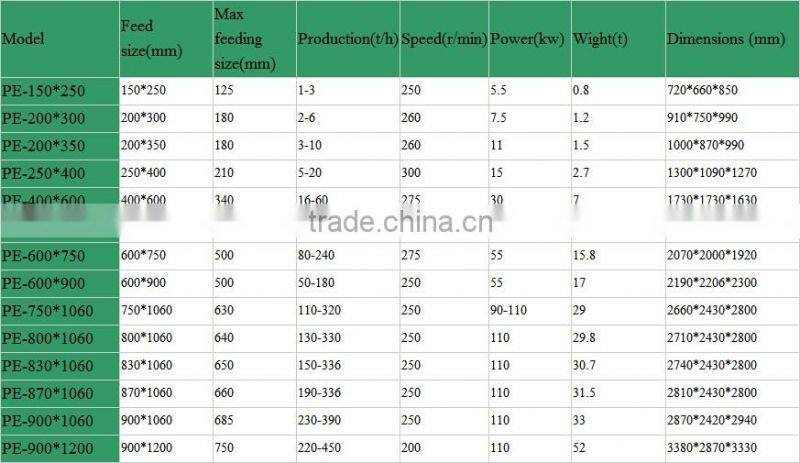

Jaw crusher technical data mini jaw crusher manufacturer
Features of jaw crusher
1.High crushing ratio, big reduction ratio and uniform final product size ;
2.Simple structure and low operation and maintenance cost;
3.Big adjustment range of the outlet can satisfy the requirement of different customers;
4.Safe and reliable lubrication system, easily changed spare parts and easy maintenance;
5. Low noise and little dust pollution. mini jaw crusher manufacturer

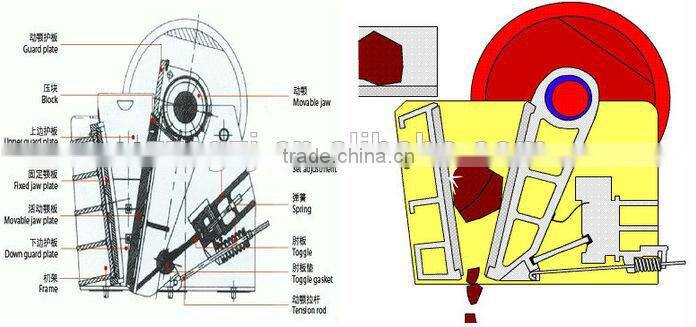

Working Principle of Jaw Crusher
The motor transmits through belt, drives the moving jaw up and down by eccentric shaft, when the moving jaw plate rises, the angle between the fixed jaw plate and the moving jaw plate gets larger, and the materials can be crushed to reach the crushing target. When then moving jaw plate is down, the angel between the moving jaw plate and fixed jaw plate becomes smaller. The movable jaw plate leaves the fixed jaw plate under the affection of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
To give you a responsible quotation, you can inform us the following information: |
|
1). What's the material you are going to deal with? 2). What's the granularity of the material? 3). What's the granularity of the final products are you going to achive? 4). What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information. |
mini jaw crusher manufacturer
