Factory outlet impact crusher wear parts

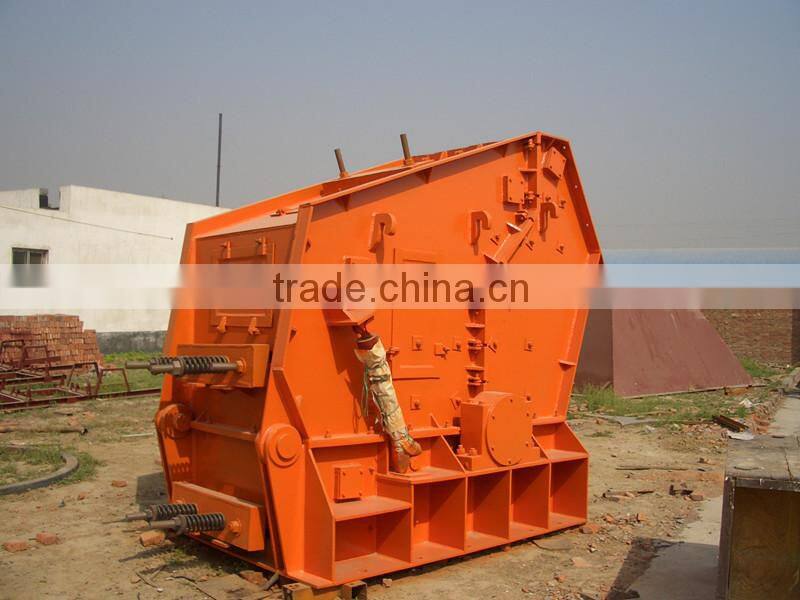

impact crusher
PF impact crusher has more than 50 years development history in our country, its technical features has reached the international level. Compared with general crusher, it not only have ordinary advantages of large crushing ratio, even size, less phenomenon of over-crushing, low energy consumption, easy maintenance, but also has wide range of adjustable size.

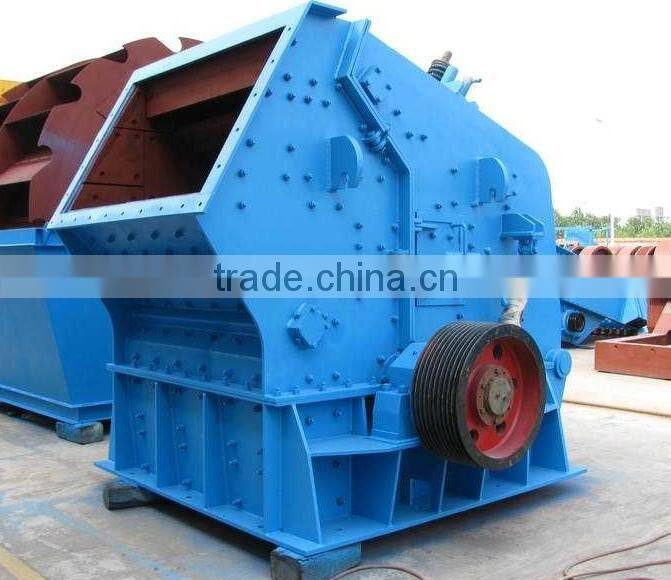

impact crusher
You can choose the suited model from the followed information:
Model |
Specification(mm) |
Feed size(mm) |
Max. Feeding size(mm) |
Capacity(t/h) |
Motor power(kw) |
PF-0607 |
644*740 |
320*770 |
100 |
10-20 |
30 |
PF-0807 |
850*700 |
400*730 |
300 |
15-30 |
30-45 |
PF-1008 |
1000*800 |
400*830 |
300 |
30-50 |
37-55 |
PF-1010 |
1000*1050 |
400*1080 |
350 |
50-80 |
55-75 |
PF-1210 |
1250*1050 |
400*1080 |
350 |
70-120 |
110-132 |
PF-1212 |
1250*1250 |
400*1300 |
350 |
100-150 |
132-160 |
PF-1214 |
1250*1400 |
400*1430 |
400 |
130-180 |
160-200 |
PF-1315 |
1320*1500 |
860*1520 |
500 |
160-250 |
180-260 |
PF-1320 |
1320*2000 |
860*2030 |
500 |
300-350 |
300-375 |

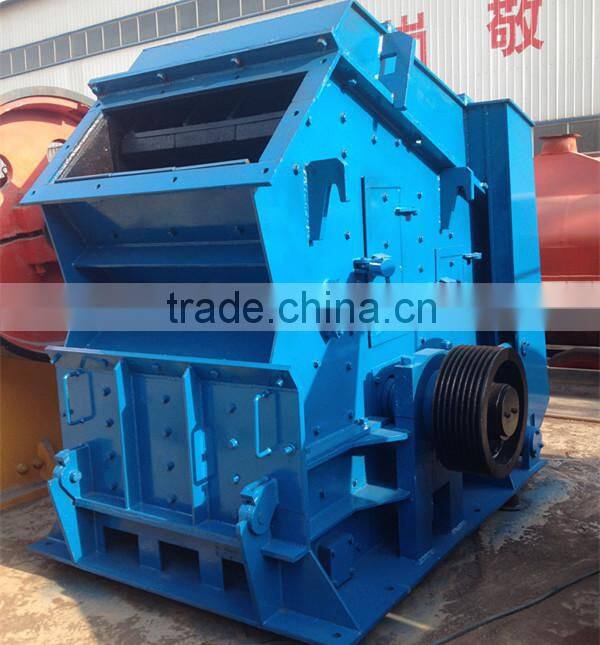

impact crusher
Application of large capacity impact crusher
Impact crusher can be widely used in water electricity,highway to make suitable sand and stone.
impact crusher
Working principle of impact crusher
The impact crusher crushes materials with impact force. When it is operated, the rotors rotate at high-speed motivated by the motor, and then the materials enter the blow bar area, they are cushed due to the high-speed impact of the blow bar on the rotor and are thrown to the impact plates for secondary crush. Then the materials will be shot back to the blow bar area again for the third crush. This process has to repeat several times until the materials are crushed to the required size and discharged from the discharge port of the machine.The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor.
impact crusher
Features of large capacity impact crusher
1. Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome and, abrasion-resistant, and with powerful impacting force;
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.
impact crusher

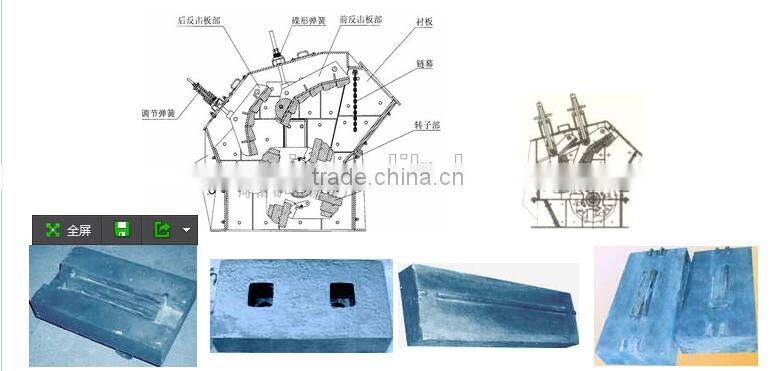

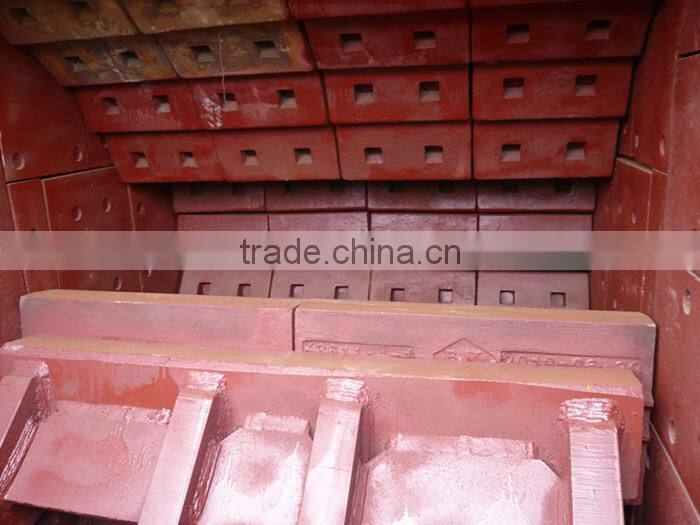

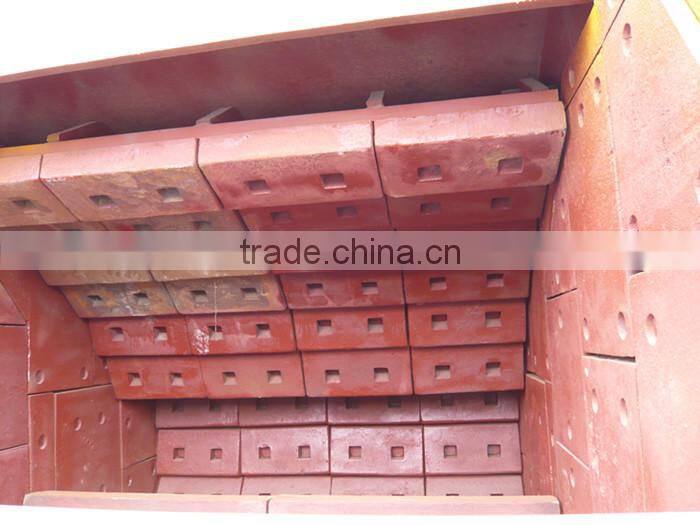

Inners of impact crusher
r
impact crusher

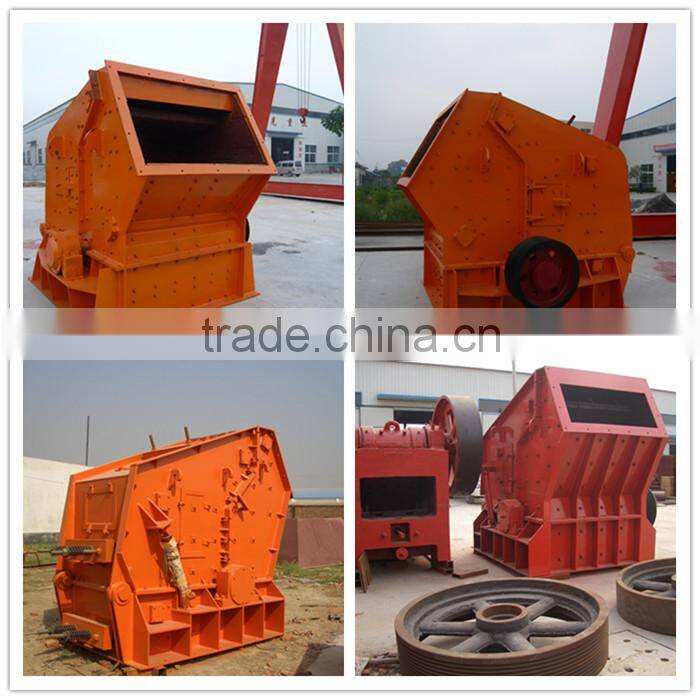

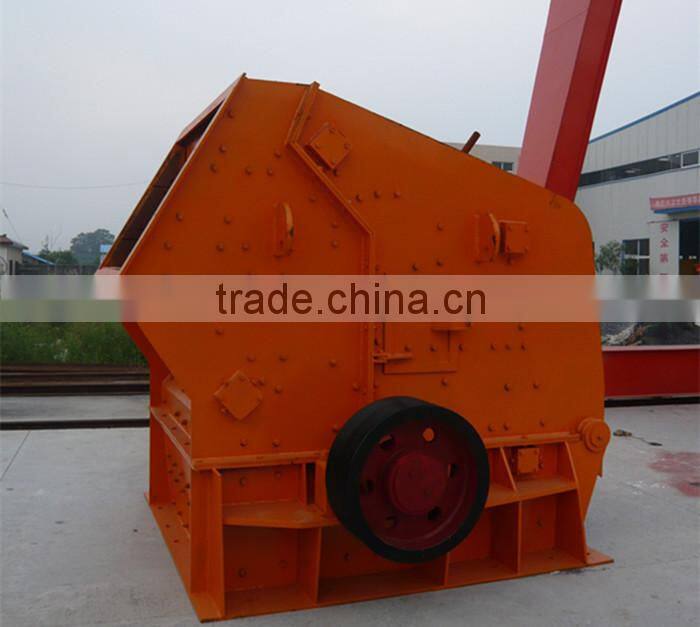

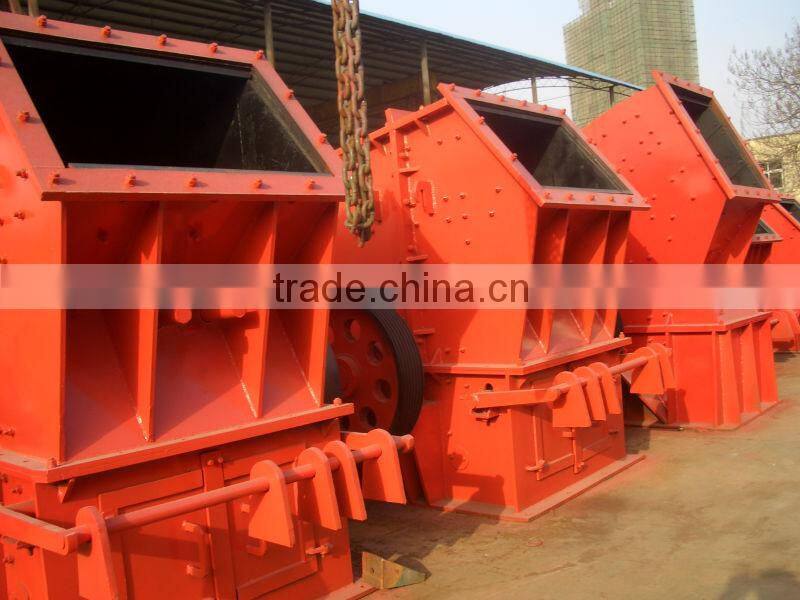

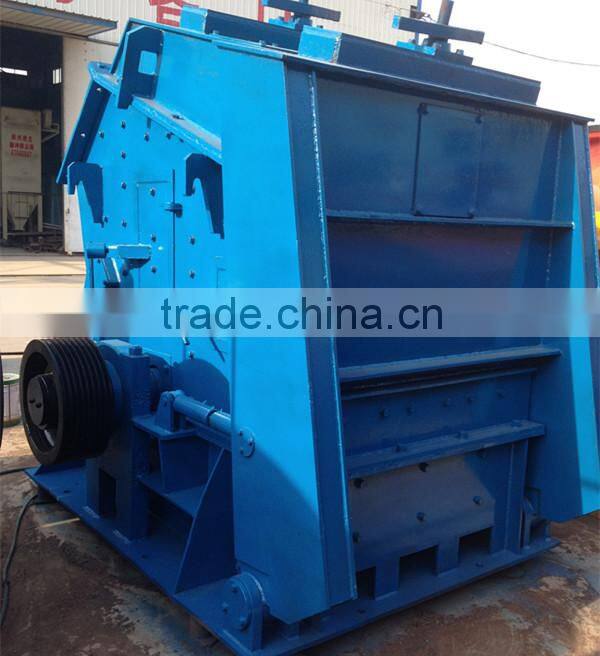

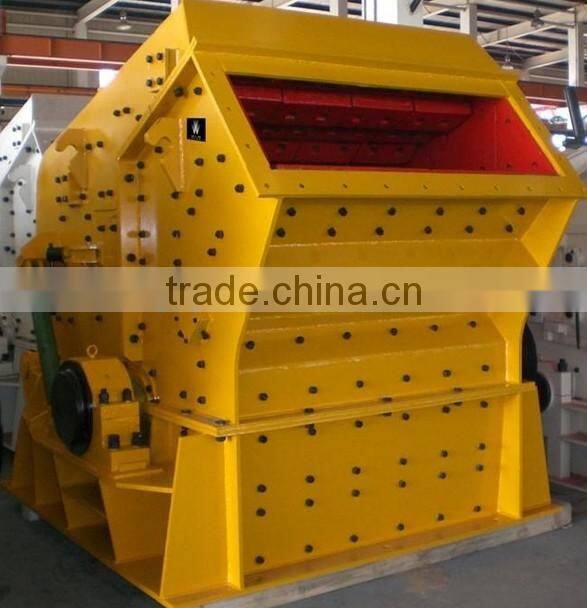

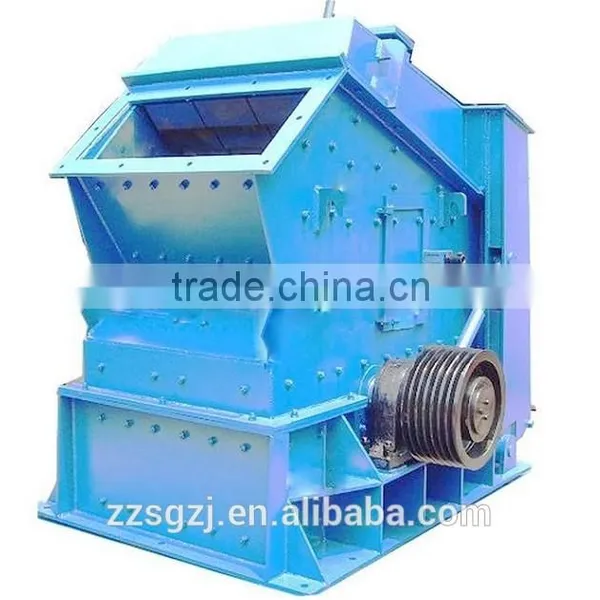

More pictures about impact crusher
Packing term: Nude packing.they will be load in 20GP/40GP/40HQ container;

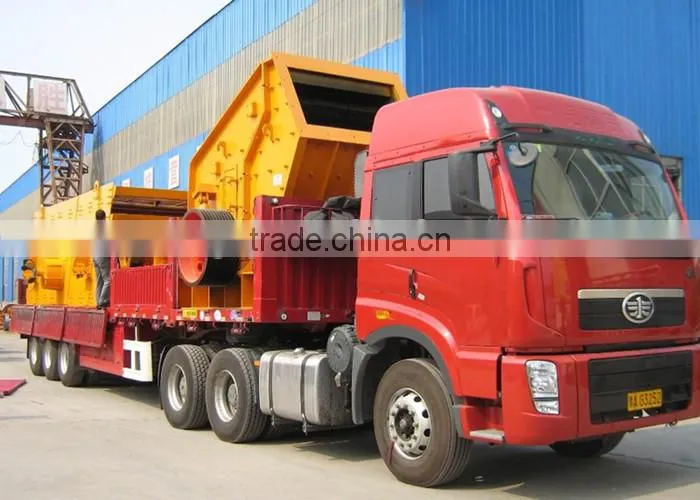

Shiping:By sea or by truck,depend on the requirement of our clients.
Warranty Term
1.Our company provide maintenance-free within 1 year except artifical reason.
2.We will supply accessories and repairment for a long period.
Technical service And Installment
1.Our company guarantees to design the working site for free, training your employee for free, to provide basic materials' assembly drawings and equipment installation technical services.
2.We will send engineers to your place if you need,you need to pay 60USD/day to them and need to in charge of accommodation,air ticket and so on.
Free-shipment Inspection
a:You can come to our factory to inspect goods;If you are not convenient,we could send video of the inspection process to you.
b:Inspection by third-party company,the fee will be afforded by buyers.

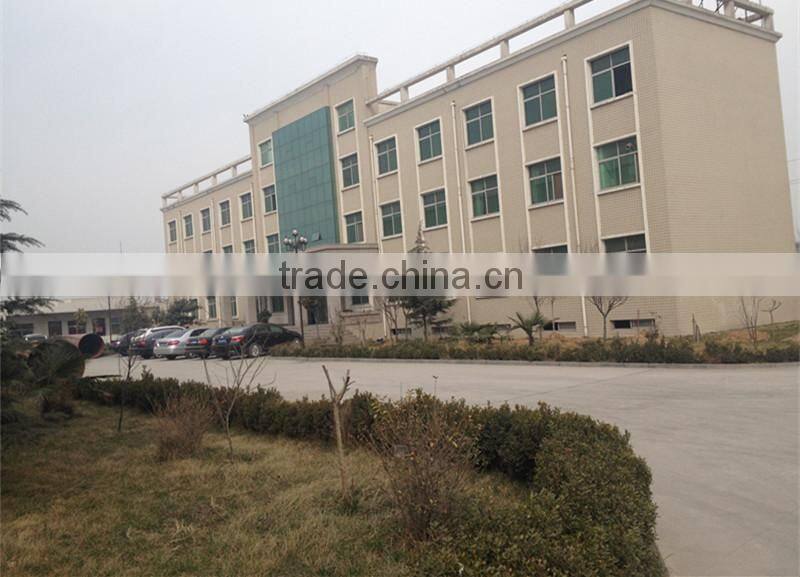

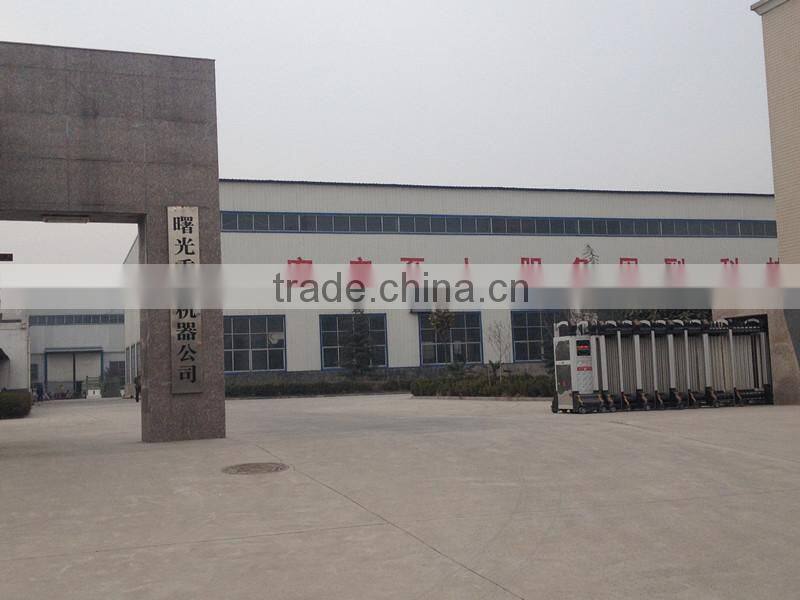

Zhengzhou Shuguang Heavy Machinery Co.,Ltd. is founded in 1993,which is a specialized enterprise dedicated to R&D and production of the Raymond mill,calcium powder machine,all kinds of crushing machines and mixer.
Our company by reputation first,customer first is an objective and take integrity as life.All for customer’s satisfaction efforts,all for the company’s long-term healthy development efforts!The company always puts the quality of the product and talent management in the first place with scientific management,excelsior manufacturing process,innovative manufacturing idea,talent centered and innovation oriented.
In order to recommend suitable design for you, please kindly tell us:
1.What is your raw material, is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)?
2.What is the maximum size of your raw material?
3.What are output size you want to crush?
4.What is capacity you want(tons/hour)?
