Double layer Roofing Sheet Cold Roll Forming Machine
---------------------------------------------------------------------
Double layer Roofing Sheet Cold Roll Forming Machine is a combo machine for making many different types roofing panels. For example when you need to make two types roofing sheets, you have to buy two types machines. But one double layer machines, by one machine you can produce those two types. For example the first layer could be glazed tile roll forming machine and the second layer could be IBR or round wave roofing sheet,
Working process of double layer roofing machine:
Uncoiling--> Feeding material into machine--> Roll forming Measuring length→ Step formed→ Auto cutting Products receiving

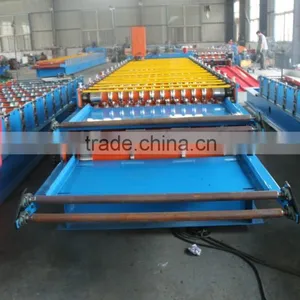

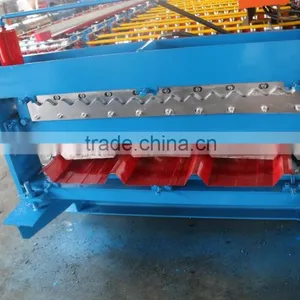

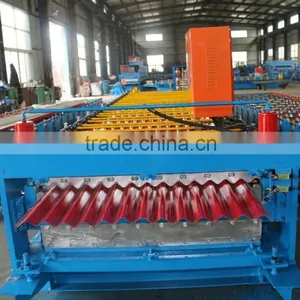

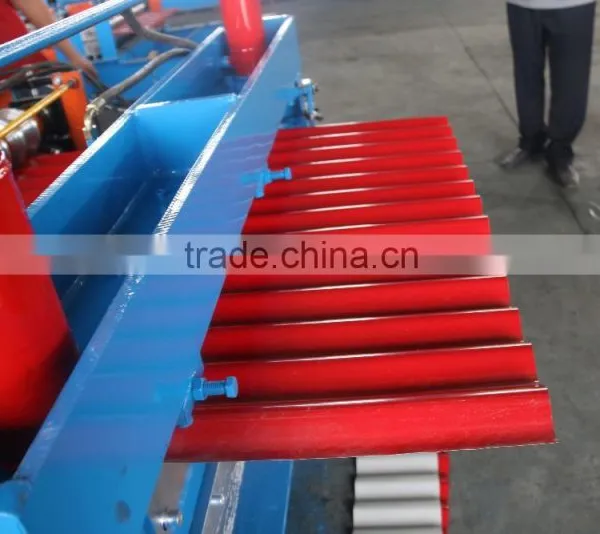

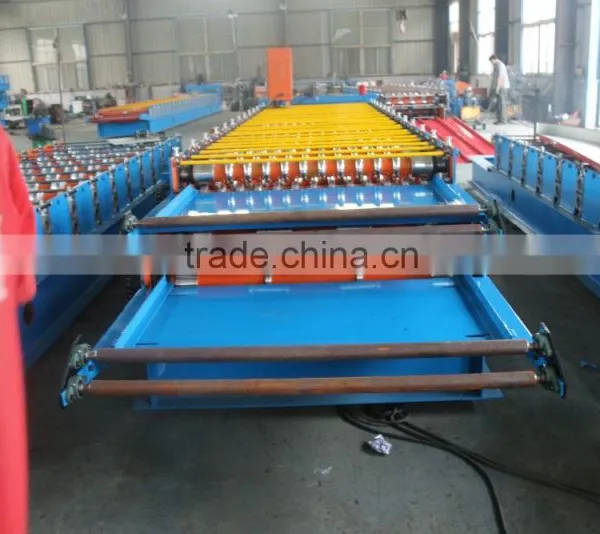

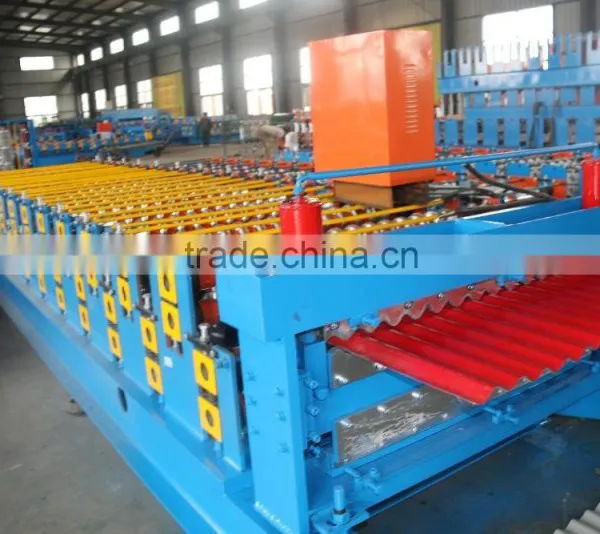

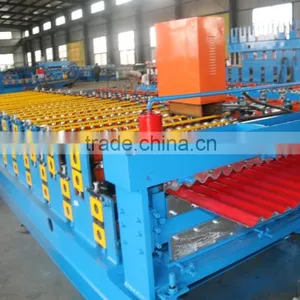

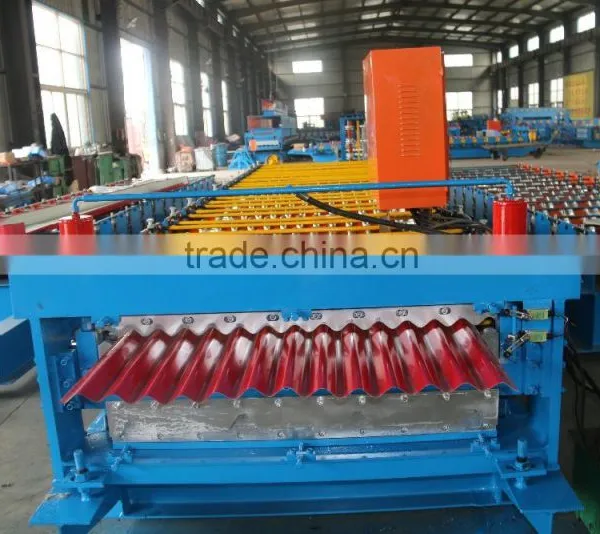

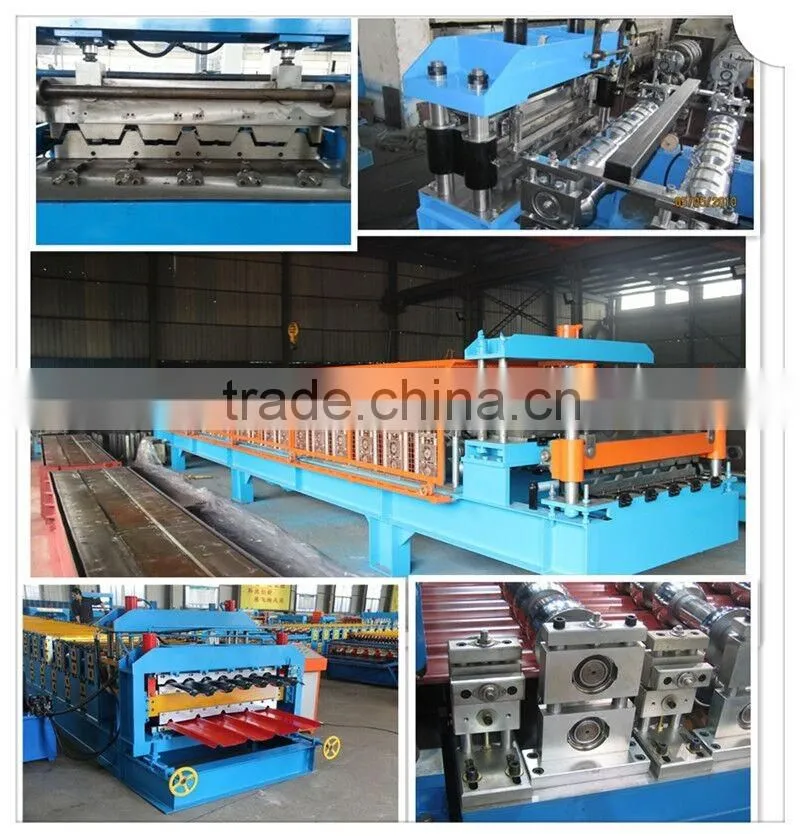

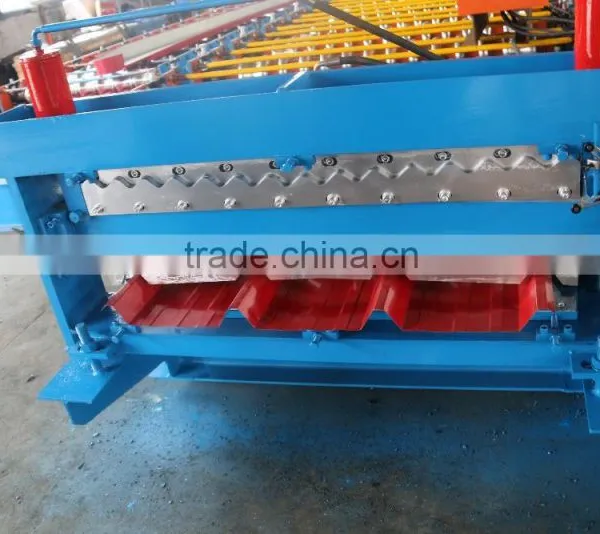

Double layer roofing machine picture:
Basic parameters of the double layer roofing machine:
No. |
Main parameter |
|
1 |
Length of the main part |
About 8500 * 1650 * 1500 mm |
2 |
Weight of main part |
About 7.5 t |
3 |
Voltage |
380 V/50 HZ 3 Phase (as customer’s request) |
4 |
Roller fixer |
Middle plate welded |
5 |
Frame |
350 H steel welded |
6 |
Frame thickness |
16 mm |
7 |
Drive mode |
Chain |
8 |
Material of rollers |
45# steel, surface hard chromium plating. |
9 |
Material of shafts |
45# steel |
10 |
Diameter of shafts |
Φ 90 mm |
11 |
Number of rollers |
Up layer: 13 rollers Down layer: 15 rollers |
14 |
Main power |
7.5 kw |
Features of double layer roofing machine:
1. One machine could produce two types roofing sheets.
2. Save working space, save energy and save cost of machine.
3. Easy to use and easy to transportation.
4. If you need to add wheels to machine, you can put production at any place.
5. Two layer one PLC control system, one pair of motors, easy to maintain.
6. Working speed 25 meter per minute.
7. Material thickness could be from 0.2 to 1.2mm.
Note: But two layers cannot work at the same time. If you need to huge production, please buy single layer machine.
What also will be give along the roofing sheet machine:
1. Legs of the machine-to keep balance and enhance of the machine height.
2. Another set of cutting balde as spare part.
3. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;Rubber mat 1 pcs; Bolt spanner 1 pcs
Cangzhou zhongtuo cold roll forming machinery as a manufacturers from 2006. We are specialized in manufacturing color steel forming machine,light keel machine,C&Z purlin machine,Glazed tile forming machine,welded tube mill, stone coated roof production line,steel structural floor panel roll forming machine and so on. We also have the derivatives and raw material.
1.We provide 24/7 before and after service.
2.We give whole life tech support inculding maintainess and inquiry.
3. We support OA, L/C and other payment method.
