High quality and speed anode production equipment/process
------------------------------------------------------------------------------------------------------------
1. Processing Material colored steel plate, galvanized plate, or aluminum plate
2. Thickness of sheet Processing thickness of plate: 1-1.5mm
3. Equipment operation Automatically
4. Voltage according to customers request
5. Productivity 8-10m/min
6. Material of Rollers 45# steel, with heat treatment and surface is being hard chromed
7. Material of shafts 45# steel, surface hard chromium plating.
8. Diameter of shafts 80mm
9. Number of rollers 18 rollers
10. Dimensions( main structure) 11*1.6*1.3m
11. Weight 7T
12. Total Power 5.5KW+4KW
13. Working accuracy 10m±2mm
14. Roller fixer Guide column or Wall Board
15. Frame 250H steel
16. Cutting System Flying saw or Hydraulic mold Cutting
17. Operating language Chinese, English, Russian
18. PLC Brand Delta, Mitsubishi,Siemens,Panasonic

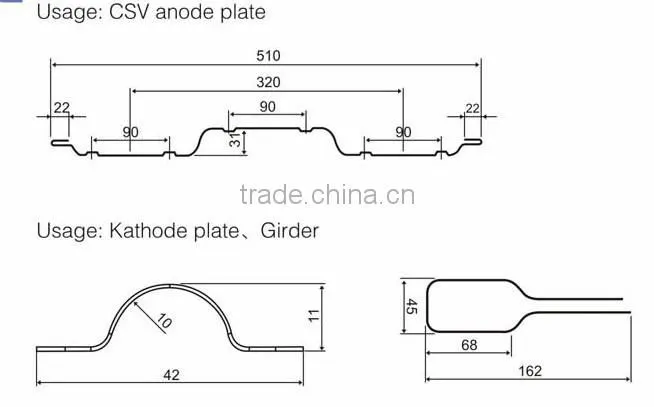

Some drawing profile of anode production equipment.
Working process of anode production equipment:
Types of anode production equipment:

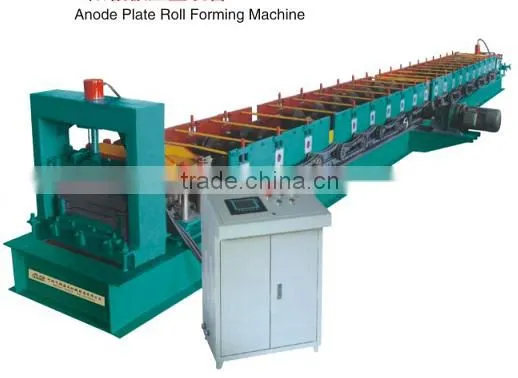

Machine picture:
ZT ( Zhongtuo International Trade Co., Ltd.) is a company specialising in the field of cold roll forming machines and metal sheet processing. We are developing various cold roll forming machines for roof tiles making, ceiling metal frame and welding pipe machine, which are used in the following areas like construction industry, automotive industry, packing industry. ZT factory was built in 1966 and its machins have been sold more than 50 countries, so please trust us. With us, create your own cold roll forming world.
