Antique roof tile/ metal roofing panel roll forming machine
-------------------------------------------------------------------------------------------------------------------------------

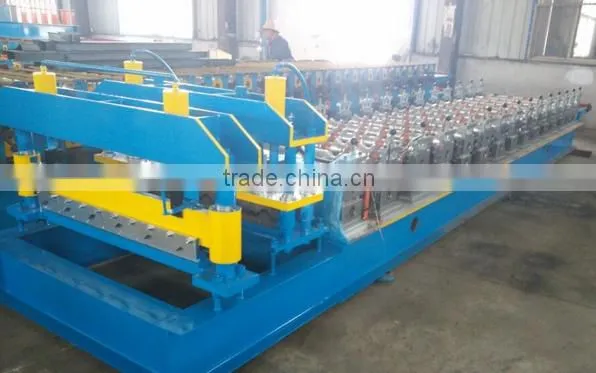

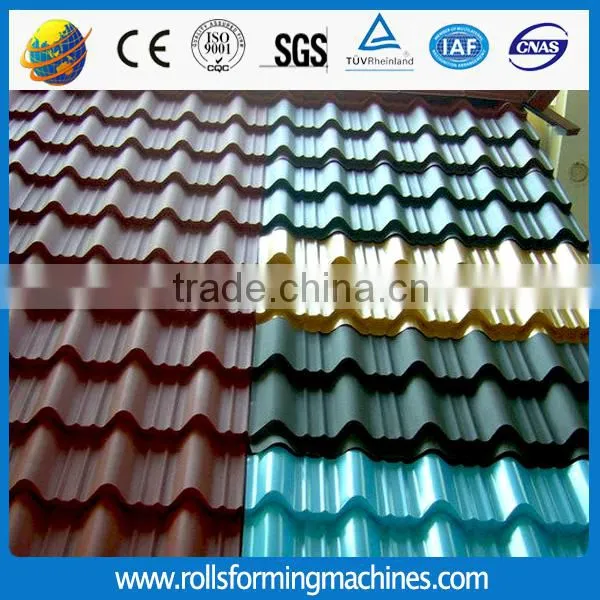

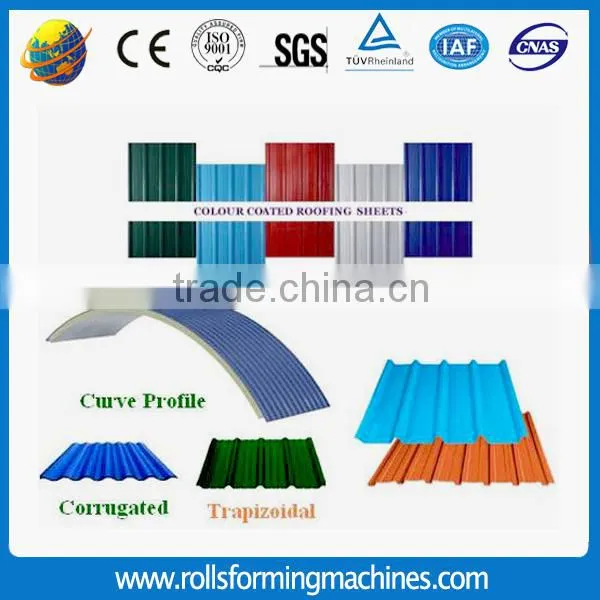

Antique roof tile/ metal roofing panel roll forming machine could be used to make various type roofing sheets. The roofing sheet machine working speed could reach 25m per minuite. The mateirail thickness could reach 1.2mm. For the machine motor, we will use Semen and PLC , we use Pansonic. So for the machine quality is absoultely good. Here is one machine picture for your reference.
Metal roofing panel roll forming machine Some parameters:
No. |
Main parameter |
|
1 |
Length of the main part |
About8200*1650*1500mm |
2 |
Weight of main part |
About3.5 t |
3 |
Voltage |
380V/50HZ3Phase (as customer’s request) |
4 |
Roller fixer |
Middle plate welded |
5 |
Frame |
350 H steel welded |
6 |
Frame thickness |
16mm |
7 |
Drive mode |
Chain |
8 |
Material of rollers |
45# steel, surface hard chromium plating. |
9 |
Material of shafts |
45# steel |
10 |
Diameter of shafts |
Φ80mm |
11 |
Number of rollers |
15 rollers |
|
Main elements of the machine
| |||
1 |
Manual decoiler |
set |
1 |
2 |
Main forming machine |
set |
1 |
3 |
PLC control system |
set |
1 |
4 |
Hydraulic pump station |
set |
1 |
7 |
Output table |
set |
1 |
Features of Metal roofing panel roll forming machine
1. Long time to use. Normally speaking the machine could use more than 10 years.
2.Forming speed is higher than other.
3. Accurate shaping roll forming, there is no swring during the working.
4. Thickness material could be supported.
5. Real good mould mateiral with certification of testing.
6. 24/7 before and after serive.

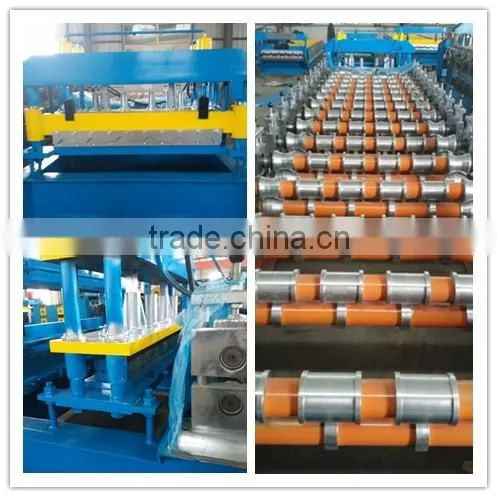

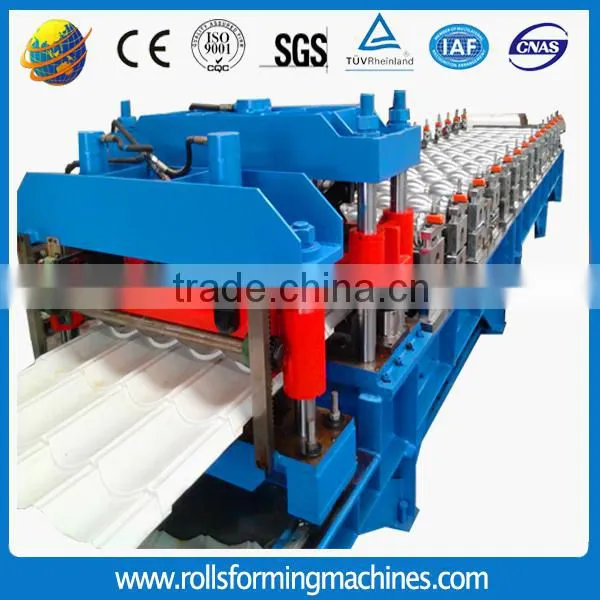

Detail pictures shows of the machine:
What also will be give along the roofing sheet machine:
1. Legs of the machine-to keep balance and enhance of the machine height.
2. Another set of cutting balde as spare part.
3. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;Rubber mat 1 pcs; Bolt spanner 1 pcs
Cangzhou zhongtuo cold roll forming machinery as a manufacturers from 2006. We are specialized in manufacturing color steel forming machine,light keel machine,C&Z purlin machine,Glazed tile forming machine,welded tube mill, stone coated roof production line,steel structural floor panel roll forming machine and so on. We also have the derivatives and raw material.
1.We provide 24/7 before and after service.
2.We give whole life tech support inculding maintainess and inquiry.
3. We support OA, L/C and other payment method.
