                           roller shutter door roll forming



Basic informaion of roller shutter door roll forming :
Zhongtuo shutter door machine production line is made up of uncoiler,feeding part,main roll forming system ,cutting system and receive table.

The production of shutter door machine are widely used in the production of various industrial plants, warehouses and supermarkets,shopping malls .

Zhongtuo roller shutter door roll forming feature:

1.Take continuous production,there is no need to change the rollers in rough-forming section.

2.Shutter door machine production of pressure plate,stately elegance,beautiful novel,appearance smooth,

   corrugated uniform, high utilization, high strength, high degree of automation, low cost and  durable.



Main specifications of   roller shutter door roll forming:

Take one type of machine for example:

Processing material

 colored steel plate, galvanized plate, or aluminium plate
Material thickness 0.8---1.2 mm
Material hardness 550 mpa---350 mpa
Material width 1000mm
Formed width 747mm
Forming speed 12m/min



Working Process of this machine:

Decoiling--active feeding--roll forming--measuring length--pressing--cutting to length--product to stand

Main elements:

Decoiler, main forming machine, hydraulic pressing, hydraulic cutting, product stand, hydraulic system, electric system.

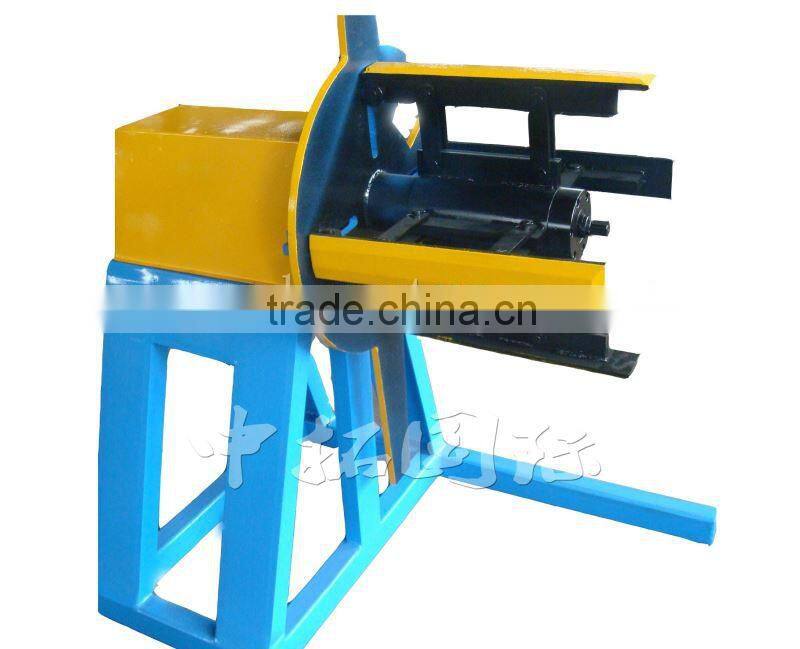

1. Decoiler

il inner diameter:  450-550mm

il max width: 1250mm

3.max carrying capacity: 5000kg

Usage:It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system

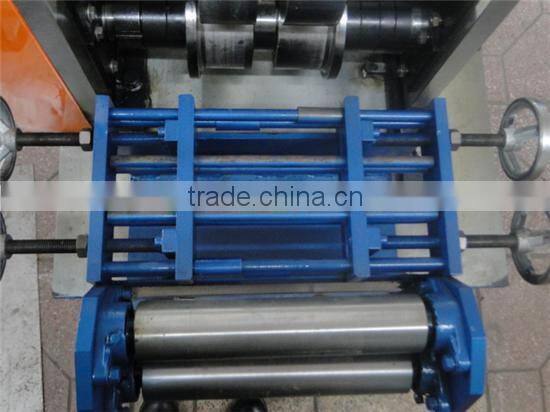

2.  Active feeding

Usage:Put the raw material(steel plate) through the beach to manufacture and process,

it can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron.

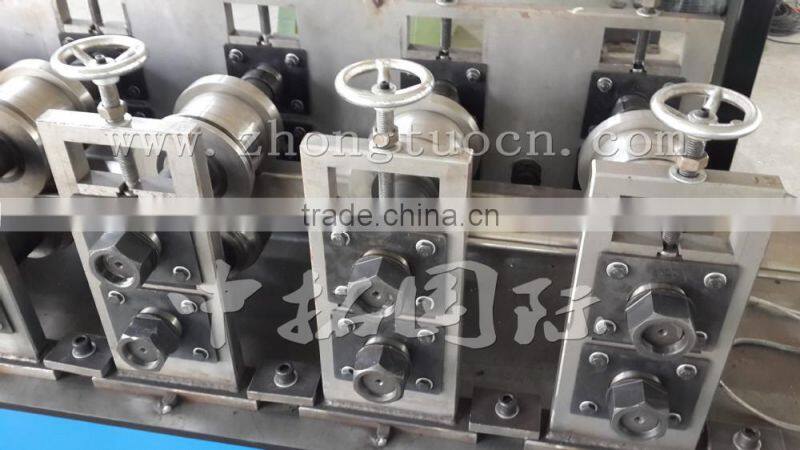

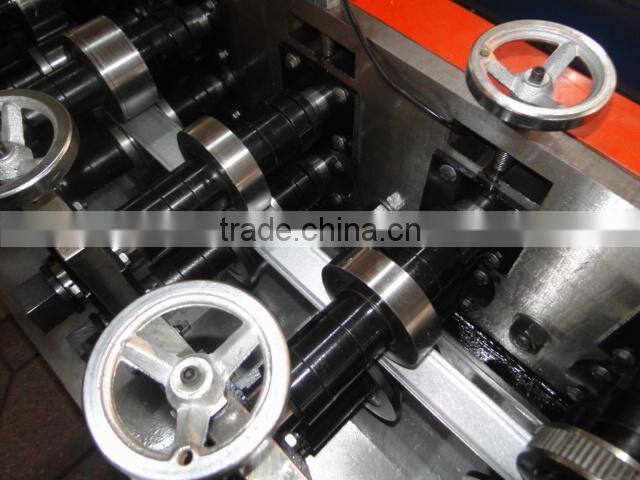

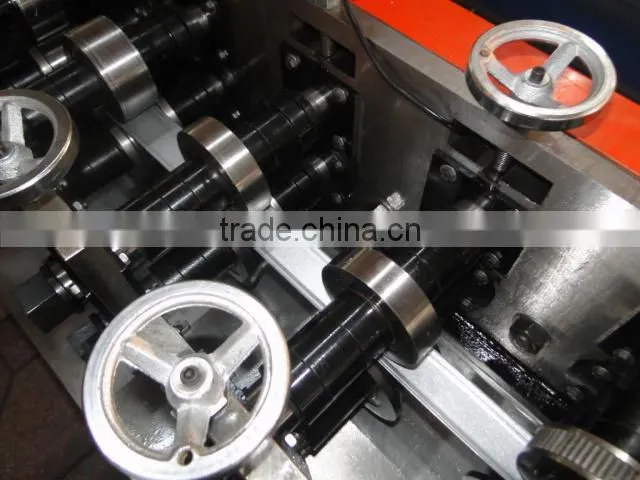

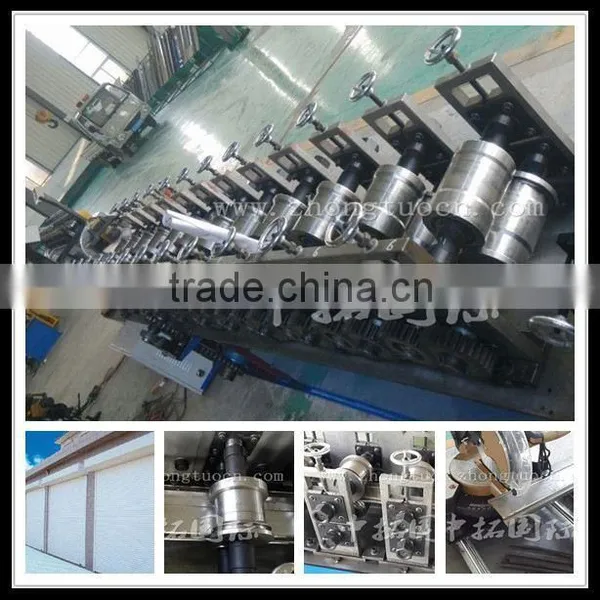

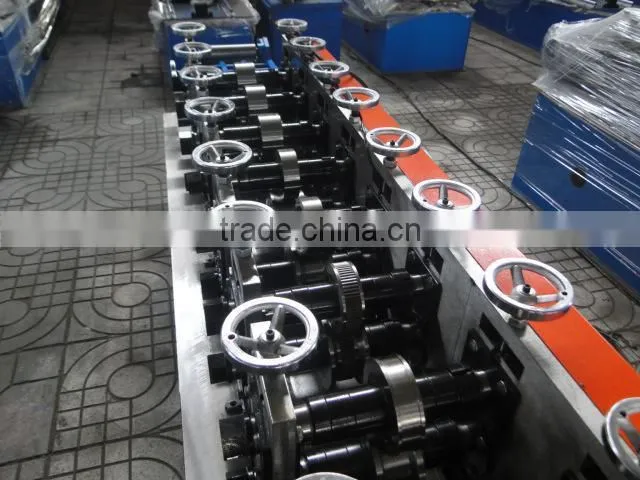

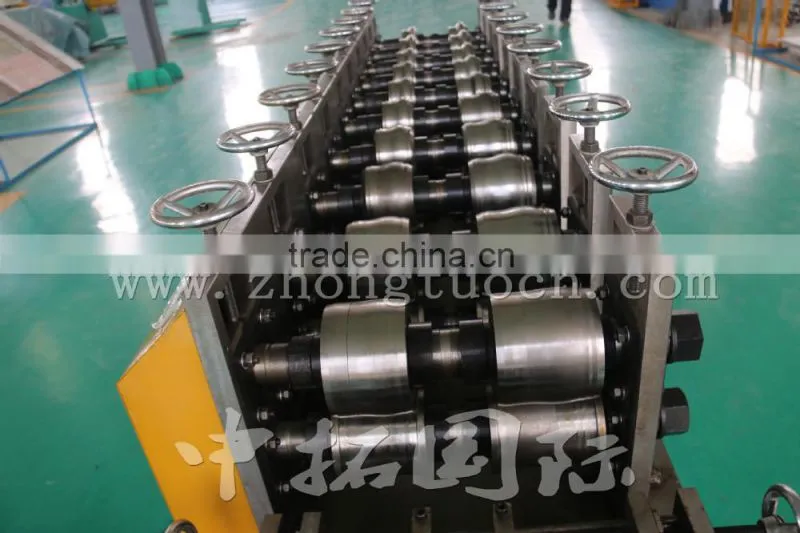

3.  Main forming machine

1. Shaft material  &  rollers material & shaft diameter

  45# steel adjustable treatment; 45# steel, polished, plate of chrome 0.05mm;  60mm

2. power: 5.5kw

3. Transport;  Motor;    chain drive

4. Forming speed;   8-12m/min

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor

reducer drive, chain transmission,roller was chromed which can keep the molding plate surface

smooth and not easy to be marked when it is being stamped.

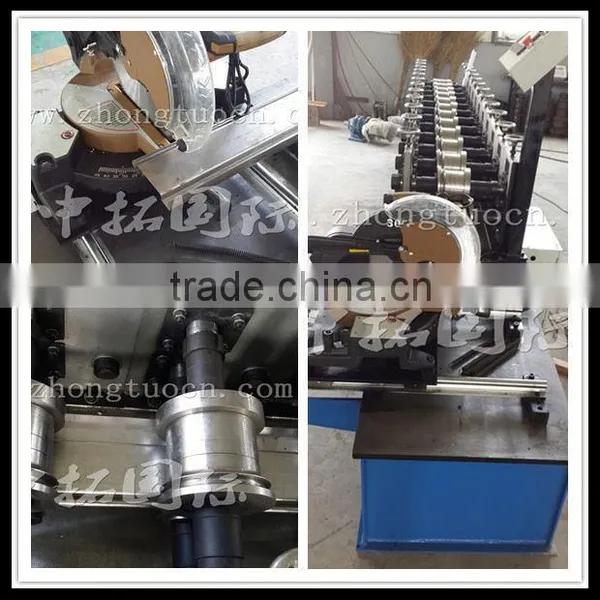

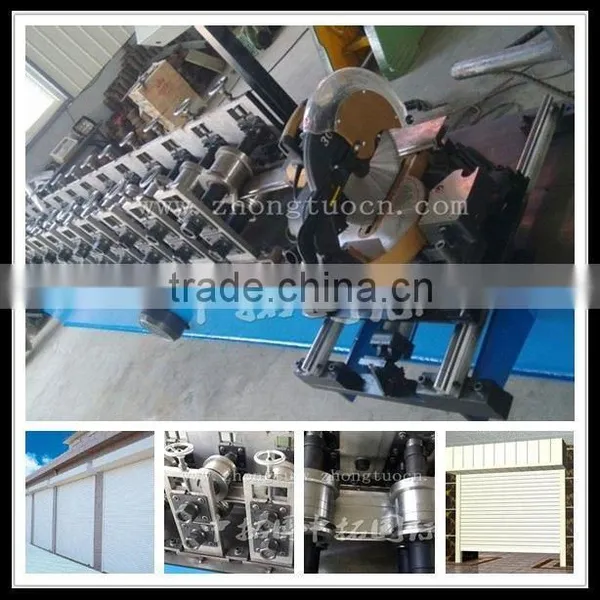

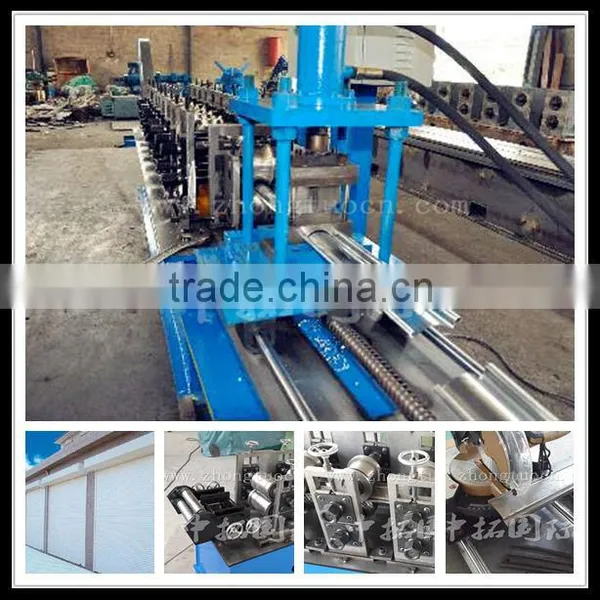

4.  Hydraulic cutting

1). Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62

2).Cutting system: advanced hydraulic drive, automatic cutting after  forming, no distorting or

wasting, high level safety factor.

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target

products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components:It contains one set of blade, one hydraulic tank and one cutter machine

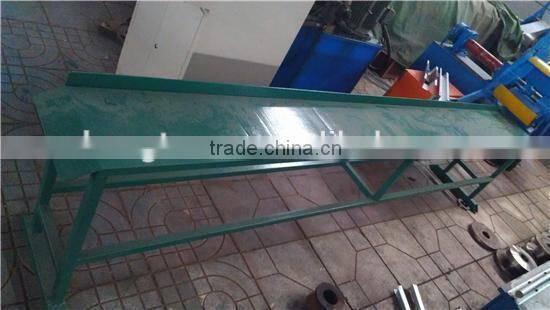

5.  Product stand

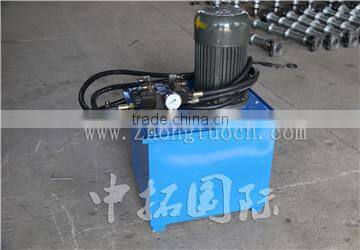

6. Hydraulic system

1. Advanced hydraulic system from Taiwan

2. Power: 5.5kw

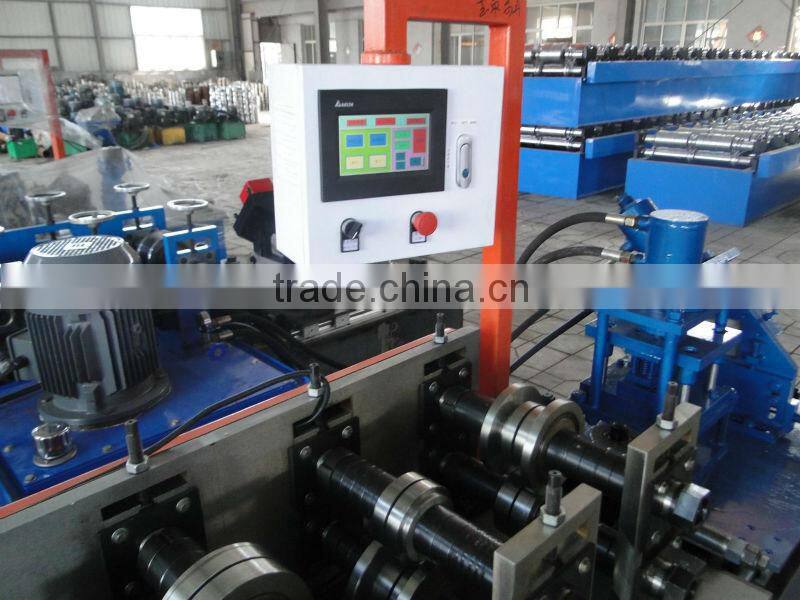

7. Electric system

1. screen: text screen displayer

2. PLC: Taida DVP14ES from Taiwan

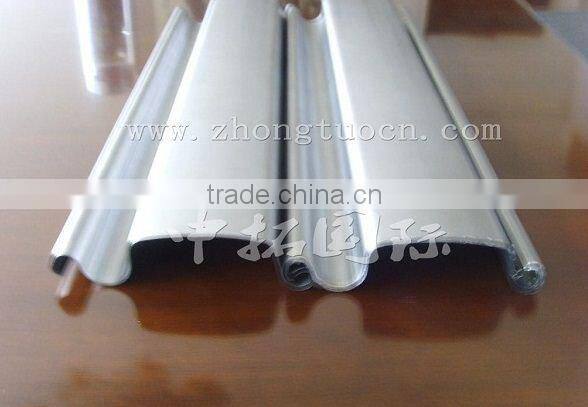

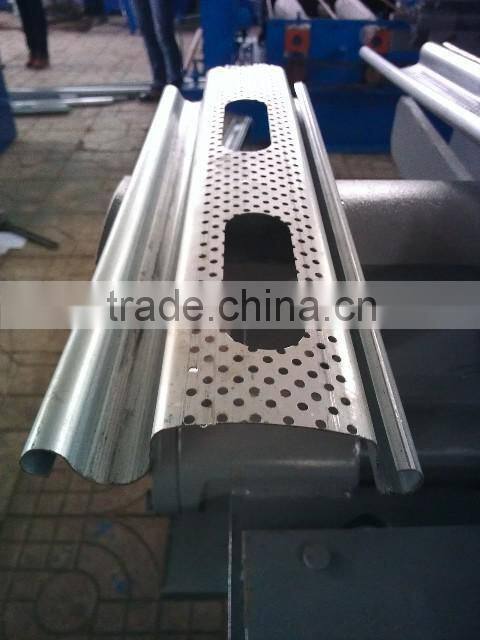

8. Products





Warranty

1). One year, and we will provide the technical support for the whole life.

2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas and

     USD50/person/day for salary.

3). Need one technicians

4).Training time: one week (contains the time of installation and adjustment)
