steel door frame machines steel door frame machine

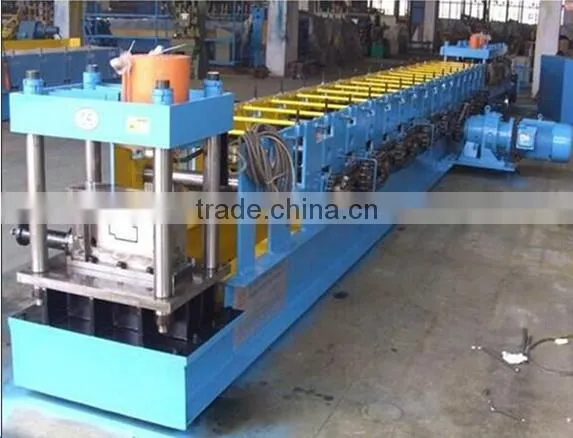

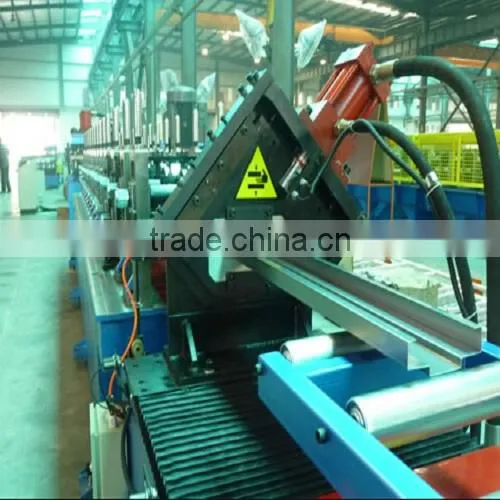

steel door frame machines steel door frame machine can make various types metal door or window frames, reinforced, fire stop doors, etc by roll forming method. The steel door frame machines is a complete product line. After roll forming by our production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This steel door frame production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter, run-out table, etc. Those machines are customized according to the drawing profile.
Drawing for you reference:
|
Processing material: colored steel plate, galvanized plate, or aluminium plate Material thickness: 0.8---2.5mm Material hardness: 550 mpa---350 mpa Material width: 200mm(according to the drawing) Formed width: 101.6mm (according to the drawing) Forming speed: 12m/min Working speed :8m/min |
|

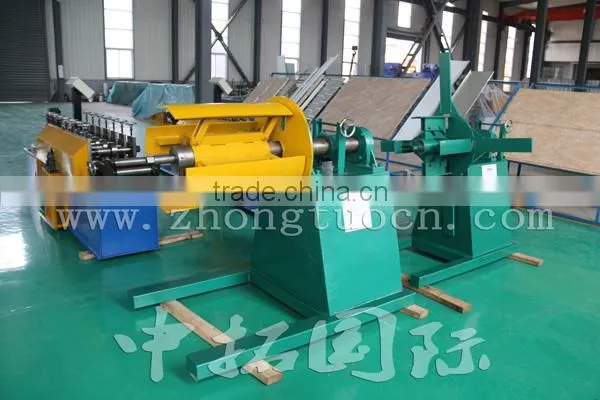

Uncoiler System
|
Usage:It is used to support the steel coil and uncoil it in a turnable way. Passive uncoil pulled by roll forming system |
|
Loading capacity:3T
Uncoiling width:500mm
Inner diameter: 450-550mm |
|

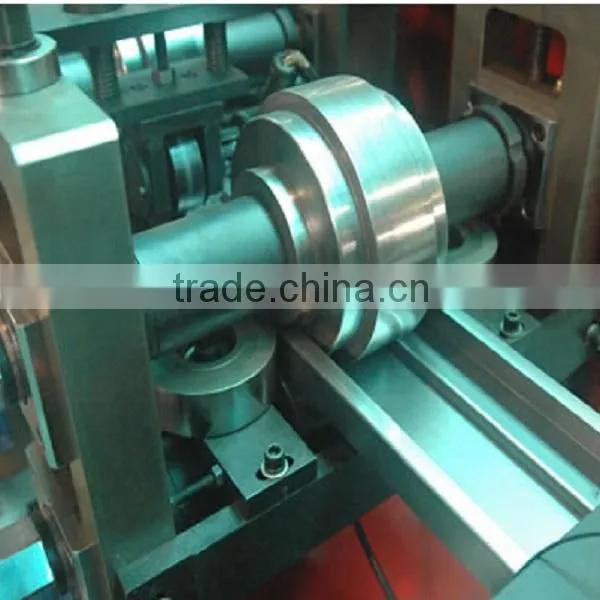

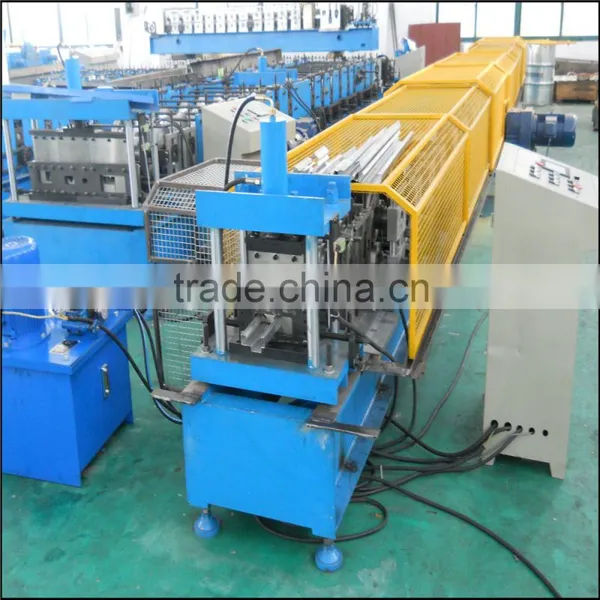

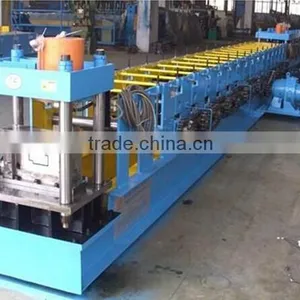

Main Roll Forming System |
Feature : Ensure stability , precision and lifetime. |
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard plating,heat treatment and galvanized treatment . The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. | |
|
Length of the main part: about 3500*900*1000 Weight of main part: 3 tons Voltage : 380V 50HZ 3Phase | |
|
Roller fixer : Guide column Frame : 400 H steel Drive mode: chain | |
|

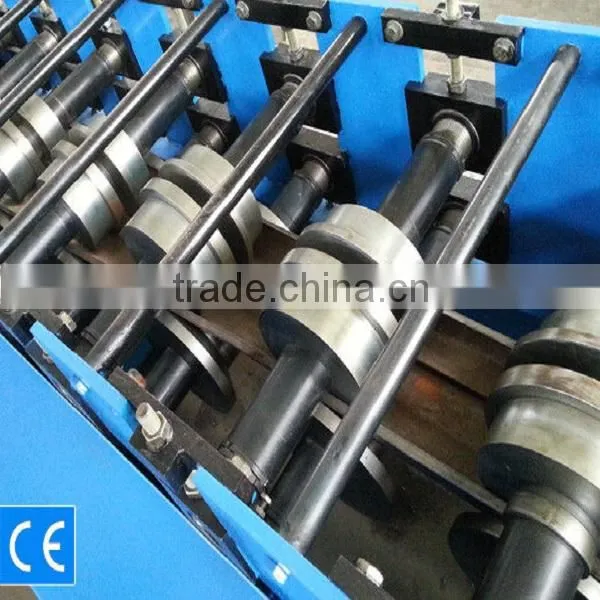

Material of rollers:45# steel, surface hard chromium plating. Material of shafts: 45# steel with tempering Diameter of shafts: φ70mm Number of rollers : 20*25 rollers Main power: 7.5kw(cycloidal planetary gear speed reducer) Hydraulic power : 3kw |
|

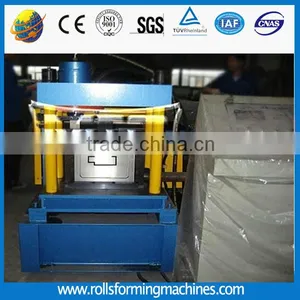

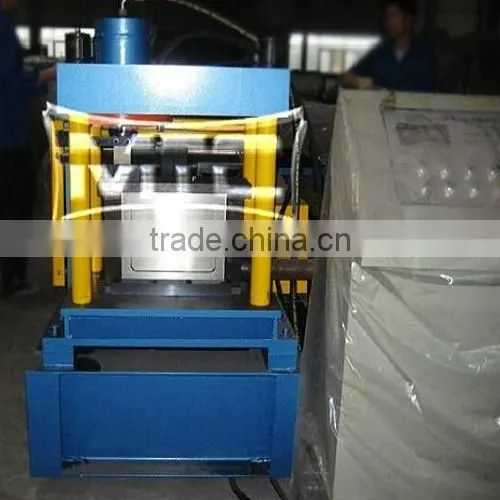

Shearing Mechanism
|
Feature : Ensure stability, precision and cutting speed FunctioMaterial of blades: Gcr12 quenched Power supply : hydraulic power Frame : Pillar style with rack & pinion systme Stroke switch : non-contact photoelectric switchn :It adopts the hydraulic drive and automatic location to decide the dimention and cut the target products Automatic cutting controlled by PLC |
|

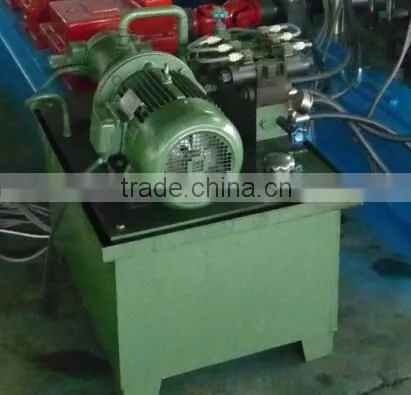

Hydraulic Station
|
Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine. |
| |
|

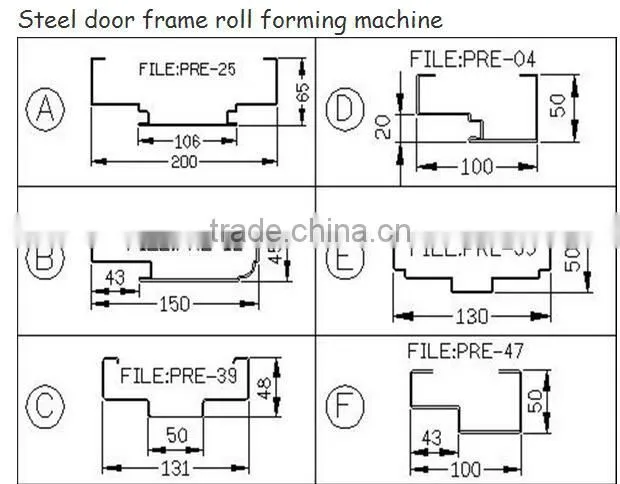

Other drawing for you choose:

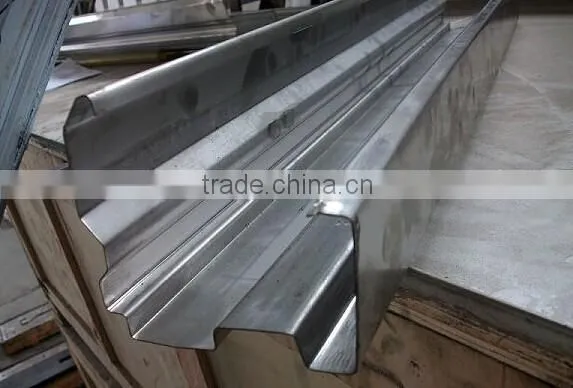

Some final product for refer:
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold rollforming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.

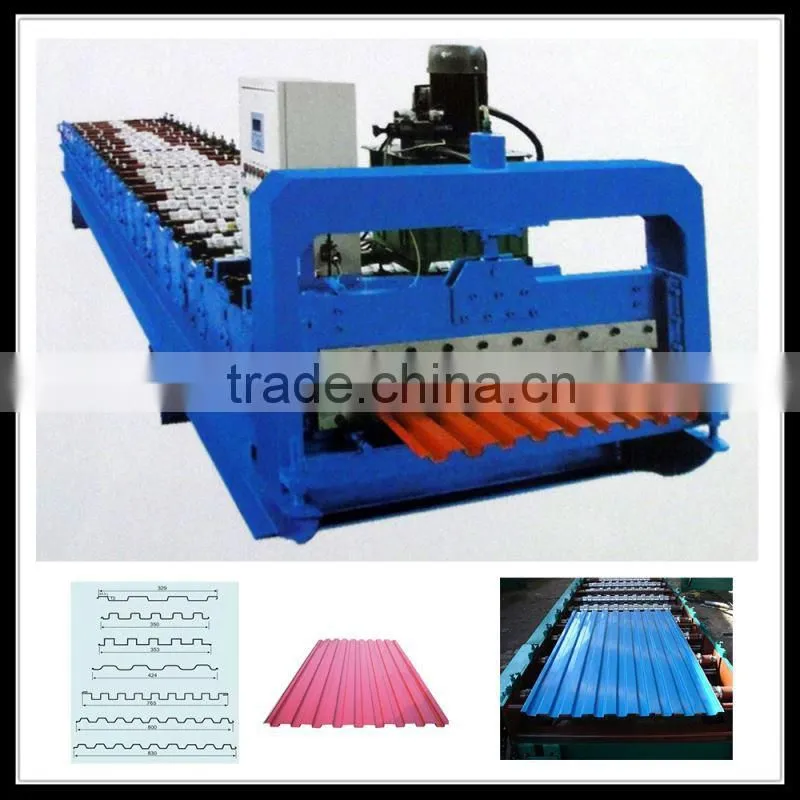

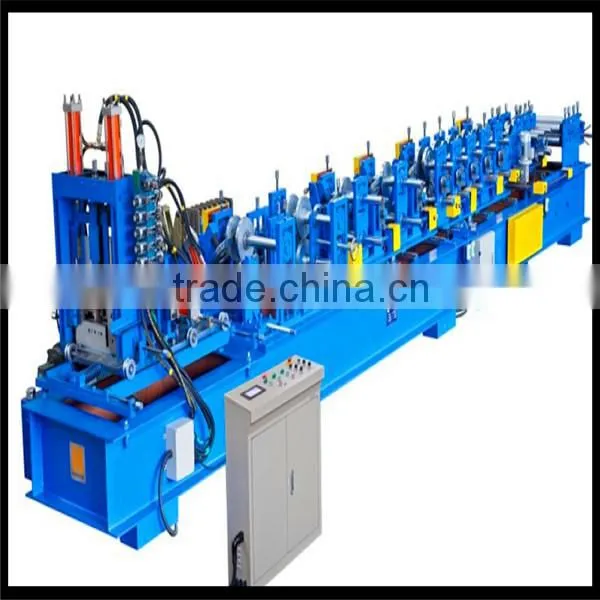

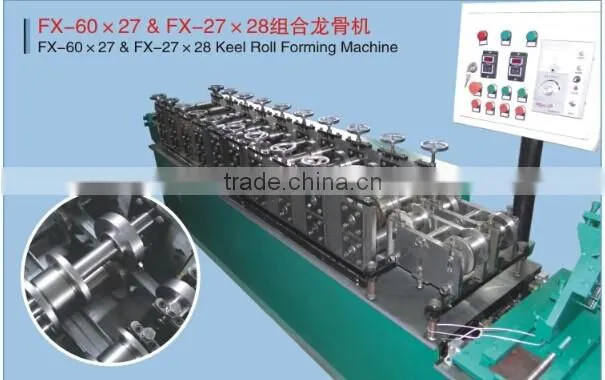

We can supply other machines for you.
