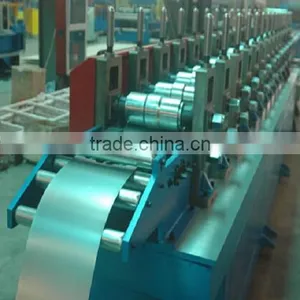

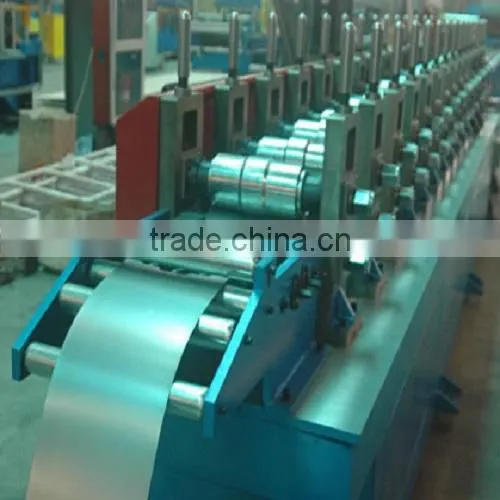

Steel door frame roll forming machine :
Steel door frame roll forming machine is design to roll cold galvanized steel with thickness from 0.4mm to 1.5 mm. steel & metal door frame machine can produce two types of frame, one is use for shutter door, the shape likes U or similar, another one is used for door panel.
Steel door frame roll forming machine consists of decoile,-Feeding and Leveler, roll forming ,cutting part, runout table, PLC control box and hydraulic station.
The production Process of steel door frame roll forming machine :
De-coiler----Feeding and Leveler---Roll Forming---Cutting Part---Runout Table
Composition of steel door frame roll forming machine:
1. De-coiler
Loading capacity:1.5T
Uncoiling width:300mm (according to the profile drawing)
Inner diameter450-550mm
2. Feeding and Leveler
- Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
3. Roll Forming
- Roller material :45# steel, surface hard chromium plating.
- Shaft material : 45# steel with tempering
- Outer diameter of shaft :70mm
- frame : 400H steel
- Voltage: 380v,50Hz,3 phase As customer`s need
- Dimensions:15400 * 1800 *1800mm Final size depend on the design
- Main power: 8.5-15kw Depend on the thickness of material and size of machine
- Forming steps rollers: 12-20 stations Final rollers depend on the design
- Speed :8-15m/min

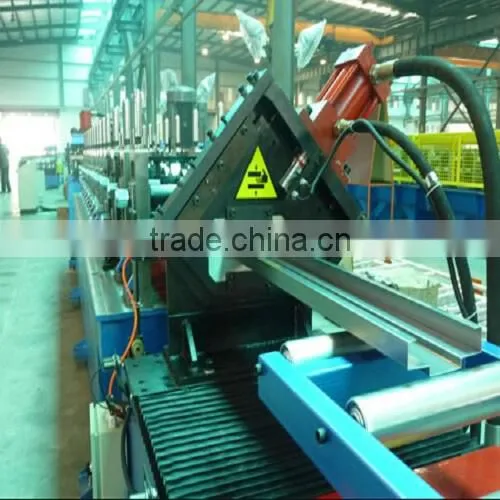

4.Cutting Part
Material of blades : Gcr12MoV quenched
Sample of metal steel door frame :
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold rollforming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for
exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time
and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
4.How to get a quotation?
a.Give me the profile drawing and thickness,this is the important.
b.Other spicific requirements is welcome,such as the speed,power and voltage you want.
