CU Roll Forming Machine Channel celing /drywall Roll Forming Machine

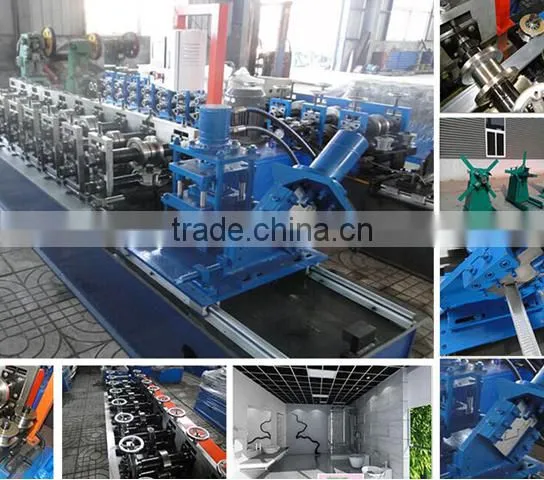

1. Pictures for your reference CU Roll Forming Machine Channel celing /drywall Roll Forming Machine
2. CU Roll Forming Machine Channel celing /drywall Roll Forming Machine
Manual decoiler→→ Feeding material into machine →Roll forming machine →Punching →Measure length →Hydraulic cutting →Finished Products
3. CU Roll Forming Machine Channel celing /drywall Roll Forming Machine
configurations |
manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table |
||
|
Material |
Raw material |
Galvanized |
|
Thickness |
0.3-0.8mm |
||
|
Manual decoiler |
Inner Diameter:450-550mm |
Expand by manual |
|
Outer Diameter: max 1500mm | |||
Max Coil width:300mm | |||
Capacity: 1.5T | |||
|
Main Forming machine |
Forming steps |
10 rollers |
|
Shaft diameter |
40mm |
||
Design type |
Memorial arch |
||
roller material |
GCr12MoV steel |
||
shaft material |
45# steel |
||
Work speed |
0-25m/min |
||
Transport |
By gear |
||
Power of main machine |
3kw |
||
Type of cutting |
Hydraulic |
||
Cutting tolerance |
±1mm |
||
Cutter |
Gcr12 |
||
Cutter quantity |
1 set |
||
Working pressure |
20MPA |
||
Punching machine |
Holes punching machine |
1. Mould material: Gcr12 2. Power supper: Hydraulic Station |
|
|
Hydraulic system |
Hydraulic oil |
46# |
|
Hydraulic power |
3kw |
||
Cutting length |
As required |
||
No distorting or wasting. High level safety factor. | |||
|
Control Device |
control |
By PLC |
|
PLC language |
English and Chinese (or as required) |
||
Brand |
Generally Delta, or as your requirement |
||
Function |
Automatic length and quantity measurement |
||
|
Other Spare part |
Weight |
About 2.5 ton |
|
Dimension |
3500*1000*1400mm L x W x H |
||
Main body color |
As you need |
||
Voltage |
380v/50hz/3ph(or as required) |
||
Spare cutting blade |
One piece for profile |
||
Fuse |
2 pieces |
||
Relay |
2 pieces |
||
Travel switch |
2 pieces |
||
Solenoid valve |
1 pieces |
||
Terms of payment |
1.Terms of payment: 30%T/T ,Balance to be paid before shipping after inspection. 2.Deliver time: 25-30 working days. |
||
Warranty and Training |
1. Warranty: Support the technology all the life. And the machine broken because of quality, we can change the broken part for free within one year.
2. Training: If you come to our factory,we can teach you for free. If you need technician go foreign, the buyer need pay the cost for visa, hotel, ticket, food and others, and buyer need pay the technician USD50/day for salary. There need one technician. Training time will be one week. |
||

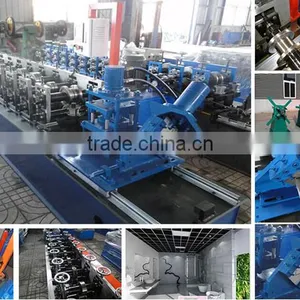

4. The photos for CU Roll Forming Machine Channel celing /drywall Roll Forming Machine
The CU ceiling and drywall channel roll forming machine is used to produce the CU channel for the ceiling and the drywall steel structural.There are normal speed one and high speed one. The high speed CU Channel roll forming machine is with reducer transmission and with the servo . The speed can be as high as 50-60 meters/min. and the CU channel celing and drywall channel roll forming machine can be designed with the logo punching system and the holes holes punching system which is before the cutting system in the machine line, so it is very easy to operate and with low cost.
