352211 Omega Channel Celing /drywall Roll Forming Machine

Name: 35*22*11 Omega Channel Celing /drywall Roll Forming Machine
Brand: Zhongtuo
SKU: 106504737
Availability: InStock

US$ 8500.00 - 8500.00 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, ceiling stud and drywall channel forming machine

Tile Type:

Colored Glaze Steel

Cangzhou Zhongtuo International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, ceiling stud and drywall channel forming machine

Tile Type Colored Glaze Steel

Use Wall

Production Capacity 10-20m/min

Place of Origin Beijing, China

Brand Name Zhongtuo

Model Number Roll Forming Machine

Power(W) 4+4KW

Voltage 380V

Dimension(L*W*H) 6500*1300*1100

Weight 4.5T

Certification CE/ISO9001

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

35*22*11 Omega Channel celing /drywall Roll Forming Machine

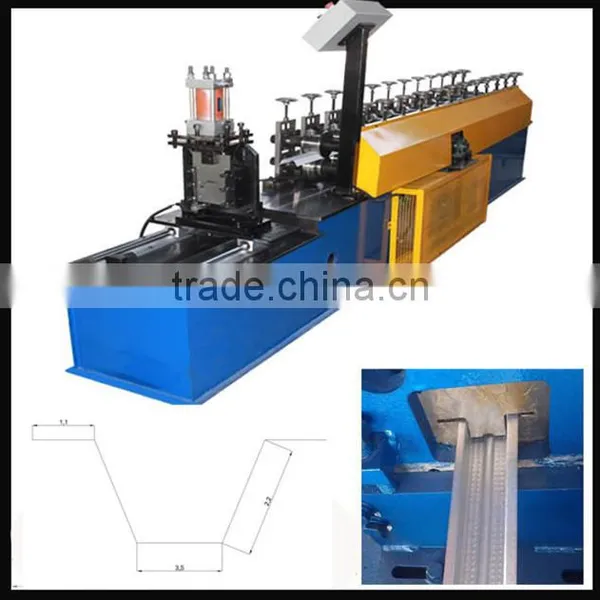

1. pictures for your reference 35*22*11 Omega Channel celing /drywall Roll Forming Machine

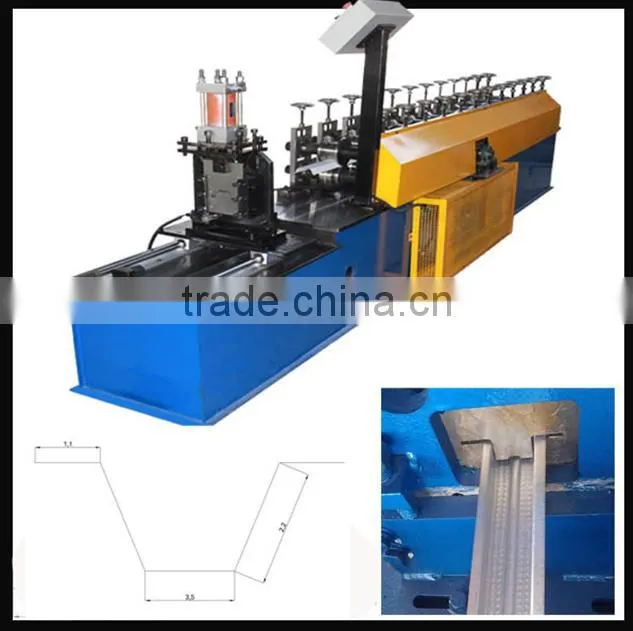

2. 35*22*11 Omega Channel celing /drywall Roll Forming Machine

Manual decoiler→→ Feeding material into machine →Roll forming machine →Punching →Measure length →Hydraulic cutting →Finished Products

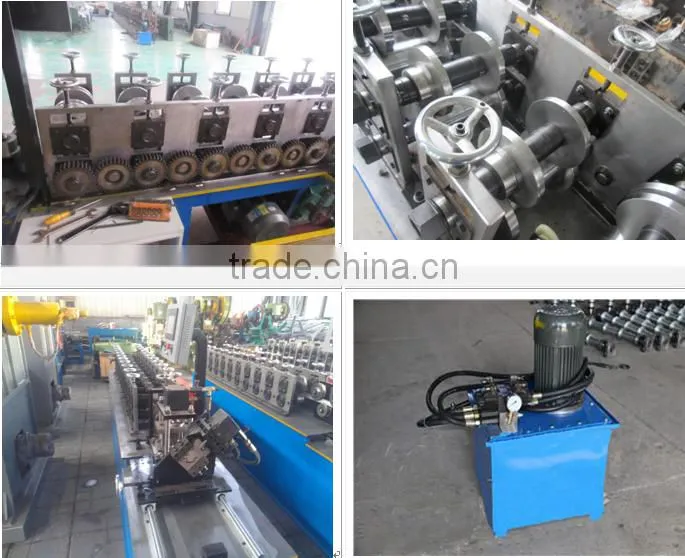

3. 35*22*11 Omega Channel celing /drywall Roll Forming Machine

3. Technical parameters

Configurations	manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table

Material	Raw material		Galvanized
	Thickness		0.45mm

Manual decoiler	Inner Diameter		450-550mm
	Outer Diameter		max 1500mm
	Max Coil width		500mm
	Capacity		3T

Main Forming Machine	Forming steps		12 rollers
	Shaft diameter		40
	Machine frame		Memorial arch
	roller material		GCr12MoV quenching treatment 58-60°
	shaft material		45# steel with tempering
	Work speed		0-25m/min
	Transport		By gear
	Power of main machine		4kw
	Type of cutting and punching		Hydraulic
	Cutting tolerance		±1mm
	Blade and punching material		GCr12MoV quenching treatment 58-60°
	Cutter quantity		1 set
	Working pressure		20MPA

Hydraulic System	Hydraulic oil		46#
	Hydraulic power		3kw
	Cutting length		As required
	No distorting or wasting. High level safety factor.
Control Device	Control	By PLC
	PLC language	As required
	Touch screen	Delta
	Function	Automatic length and quantity measurement

Other Spare part	Weight	About 2.5 ton
	Dimension	48008001400 (mm) L x W x H
	Main body color	As required
	Voltage	220V 60HZ(or as required)
	Spare cutting blade	One piece for one size
