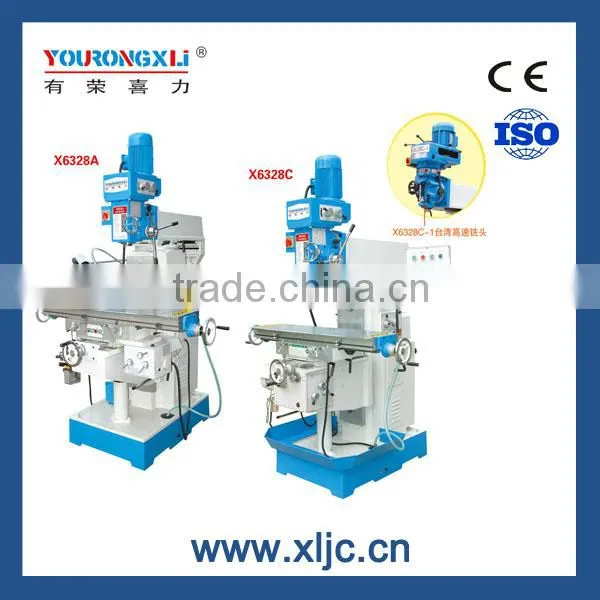

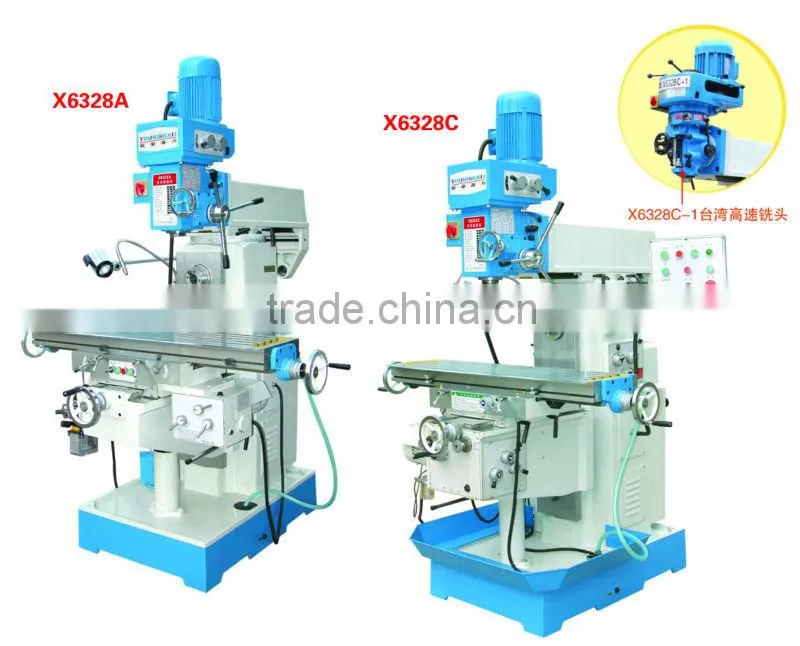

Universal Rocker Arm Milling Machine X6328

Name: Universal Rocker Arm Milling Machine X6328
Brand: YOURONGXILI
SKU: 106421141

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number X6328

Type Horizontal

CNC or Not Normal

Voltage 220/380v

Power(W) 200W

Dimension(L*W*H) 1750*1450*2200

Weight 1420KG

Warranty 12 months

Specifications

1.Turret milling machine
2.Hardened and ground guideways
3.Table automatic feed on X,Y dirven
4.Through ISO9001 certificate

Specification	Unit	X6328C	X6328C-1	X6328A		X6328A-1
Table size	mm	1200X280
Table travel(X. Y. Z)	mm	620/260/400
T-slots(NO: /width/pitch)	mm	3/14/70
Spindle nose to table surface	mm	90-490	70-470	60-460		95-495
Distance between horizontal spindle and table surface	mm	0-280
Spindle speed range	r/min	8steps, 115-1750 (V)	Standard: 16steps80~5520 Optional: variable speed	8 steps, 115~1750		Standard: 16steps80~5520 Optional: variable speed
		12steps, 45-1350 (H)
Spindle taper	-	MT4(V)	R8/IS040(V)	MT4(V)		R8/IS040(V)
		IS040(H)
Automatic feed of spindle		0.04/0.08/0.15
Table feed	mm/min	30-855			13-265
Take-off and landing platform feed	mm/min	9-270			manual
Distance between horizontal spindle and ram surface	mm	215
Main motor power	kw	1.85/1.5(V)	2.2(V)		0.85/1.5(V)	2.2(V)
		2.2(H)
Rapid motor power	kw	0.75
Overall size	mm	1750x1450x2200
Net weight	kg	1420			1380
