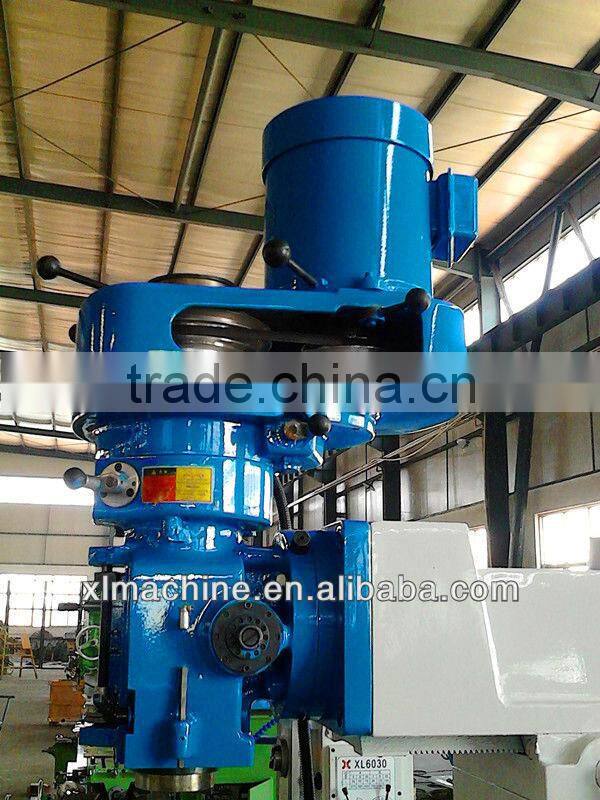

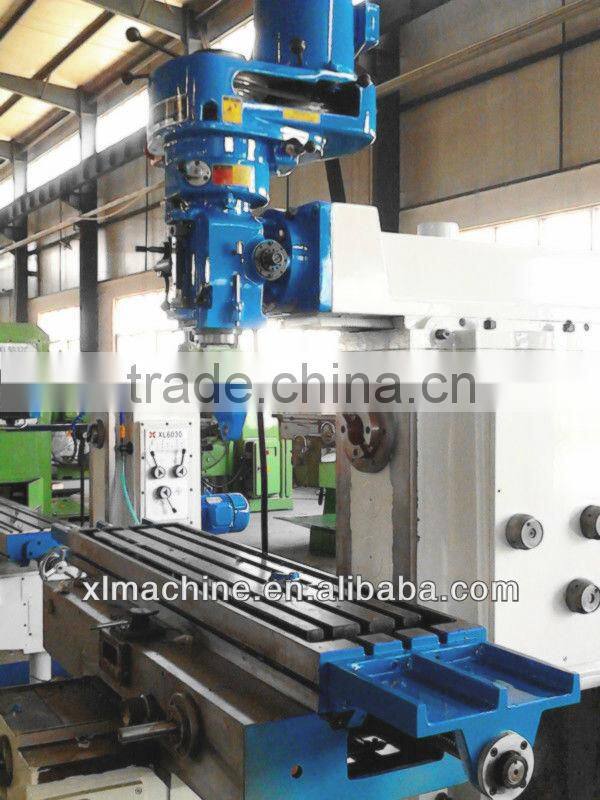

Universal Turret Milling Machine With High Speed Milling Head

Name: Universal Turret Milling Machine With High Speed Milling Head
Brand: XILI
SKU: 106421167
Availability: InStock

Tengzhou Xili Machine Tool Co., Ltd.

US$ 8,000 - 12,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

XILI

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name XILI

Model Number XL6332

Type Universal

CNC or Not Normal

Voltage 380V

Power(W) 5500(Horizontal);3700(Vertical)W

Dimension(L*W*H) 1800*2100*2500/2245*2100*2500/2520*2100*2500MM

Weight 2685/2750/2800KG

Certification ISO9001

Warranty 12 Months

Specifications

Driven by Ac servo motor
Table automatic feed on X/Y/Z
Automatic rapid feed X/Y/Z
High speed milling head is optional

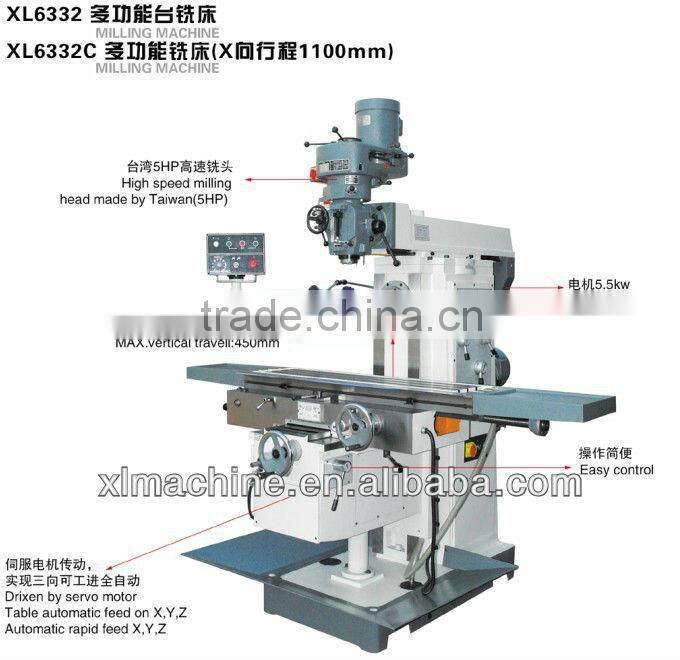

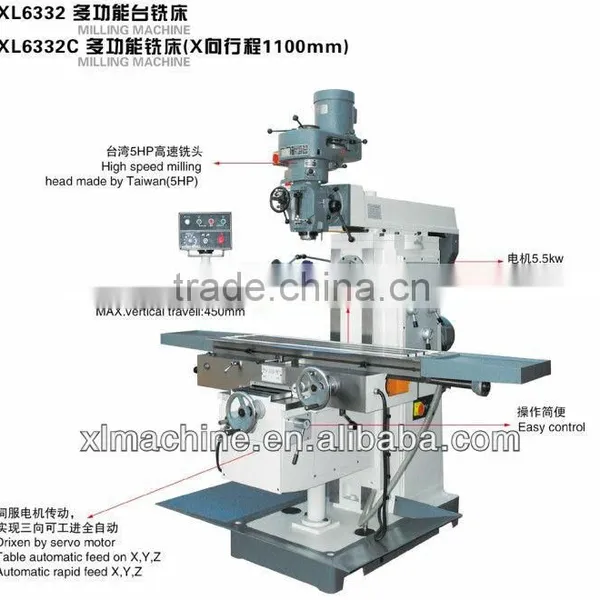

Universal turret milling machine XL6332

Driven by Ac servo motor

Table automatic feed on X,Y,Z

Automatic rapid feed X,Y,Z

Specifications	Unit	XL6332	XL6332C	XL6332CL
Spindle taper		7:24, IS050(H); 7:24, IS040 (V)
Spindle travel	mm	127 (V)
Distance between spindle nose and table surface	mm	200-660	200-650	200-650
Distance between horizontal nose and table surface	mm	20-480	20-470	20-470
Distance between spindle axis and arm surface	mm	245
Spindle speed range		H: 12 steps, 60-1800r.p.m; V: 8 steps, 80-2720r.p.m
Table size	mm	1325*320	1325*320	1600*320
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Rapid speed of table (X/Y/Z)		30-2000mm/min, 20-800mm/min, 15-600mm/min
T-slots(N/W/D)		3/18/70
Arm travel	mm	550
Main motor power	Kw	5.5(H); 3.7(V)
3 feed Ac servo motor torque	Nm	10
Overall size	mm	180021002500	224521002500	252021002500
Net weight	Kg	2685	2750	2800
