Multi-purpose Milling Machine With High Speed Milling Head

Name: Multi-purpose Milling Machine With High Speed Milling Head
Brand: XILI
SKU: 106421189
Availability: InStock

US$ 8,000 - 12,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

XILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name XILI

Model Number XL6332/XL6332C/XL6332CL

Type Universal

CNC or Not Normal

Specifications

Driven by Ac servo motor
Table automatic feed on X,Y,Z
Automatic rapid feed X,Y,Z

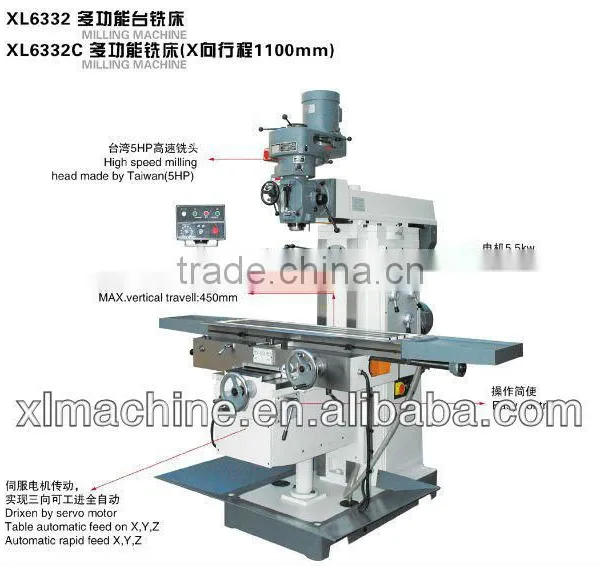

Milling .machine XL6332/ XL6332C/ XL6332CL

Driven by Ac servo motor

Table automatic feed on X,Y,Z

Automatic rapid feed X,Y,Z

Specifications	XL6332	XL6332C	XL6332CL
Spindle taper	7:24 IS050 (H) 7:24 IS040 (V)	7:24 IS050 (H) 7:24 IS040 (V)	7:24 IS050 (H) 7:24 IS040 (V)
Spindle travel	127 (V)	127 (V)	127 (V)
Distance between spindle nose and table surface	200~660	200~650	200~650
Distance between horizontal nose and table surface	20~480	20~470	20~470
Distance between spindle axis and arm surface	245	245	245
Spindle speed range	( 12 ) 60~1800r.p.m (H) ( 8 ) 80~2720r.p.m (V)	( 12 ) 60~1800r.p.m (H) ( 8 ) 80~2720r.p.m (V)	( 12 ) 60~1800r.p.m (H) ( 8 ) 80~2720r.p.m (V)
Table size	1325×320	1325×320	1600×320
Table travel (X, Y, Z)	750/320/460	1100/320/450	1300/320/450
Rapid speed of table (X.Y.Z)	30~2000mm/min, 20~800mm/min, 15~600mm/min
T-slots(NO:/width/pitch)	3/18/70	3/18/70	3/18/70
Arm travel	550	550	550
Maim motor power	5.5 (H) 3.7 (V)	5.5 (H) 3.7 (V)	5.5 (H) 3.7 (V)
3 to feed Ac servo motor torque	10	10	10
Overall size	1800×2100×2500	2245×2100×2500	2520×2100×2500
Net weight	2685	2750	2800
