X6325 Drilling Machine/milling Machine

Name: X6325 Drilling Machine/milling Machine
Brand: YOURONGXILI
SKU: 106420569
Availability: InStock

US$ 5,000 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

YOURONGXILI

Tengzhou Xili Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name YOURONGXILI

Model Number SM6325

Type Vertical

CNC or Not Normal

Voltage 380v

Power(W) 3HP/5HP

Dimension(L*W*H) 1720*1680*2350

Weight 1650kg

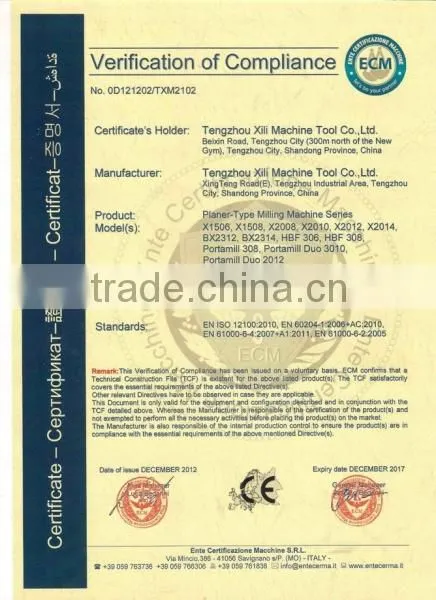

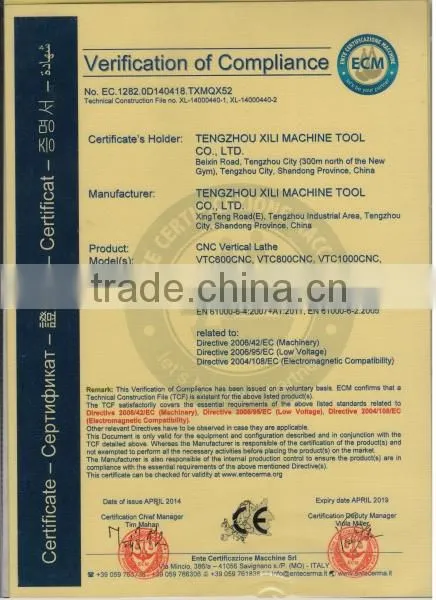

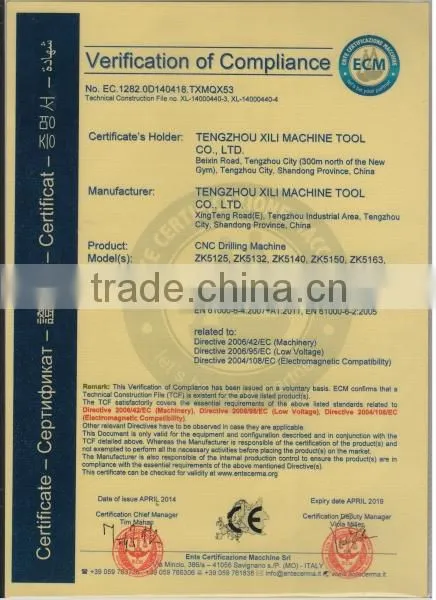

Certification CE ISO

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

SM6325 universal turret milling machine

Product Description

1. Selector lever for feed direction

2. Slector lever feed axis

3. Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable

4. High speed varible milling head on available

5. Rotary table is optional accessories

Specification	Unit	SM6325	SM6325A	SM6325B	SM6325C
Table size	mm	300X1270	300X1370	300X1270	300X1370
Table travel (X/Y/Z)	mm	720/300/400	820/300/400	900/380/400	1000/380/400
T-slots(NO./Width/Pitch)		3/14/80
Distance from spindle nose to table surface	mm	30-450
Ram travel	mm	450
Spindle taper		ISO40
Spindle travel	mm	127
Spindle speed range	r/min	16 steps, 65-4660
Auto quill feed	mm/rev	0.04/0.08/0.15
Main motor power		3HP/2.25kw
Head swivel	Left/Right	90°
Head tilting	Front/Back	45°
Rapid feed speed X/Y/Z	mm/min	1000/1000/750
Torque of XYZ axis AC servo motor	N.m	10
Coolant pump motor power	w	60
Coolant pump flow	L/min	12
Overall size(L×W×H)	mm	1530x1720x2190
Net weight	kg	1400	1450	1500	1550
