antenna tower

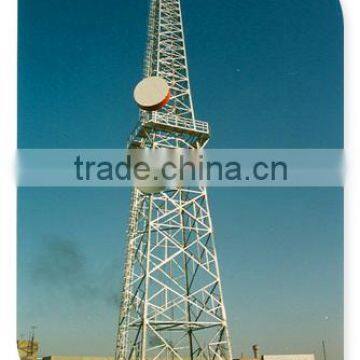

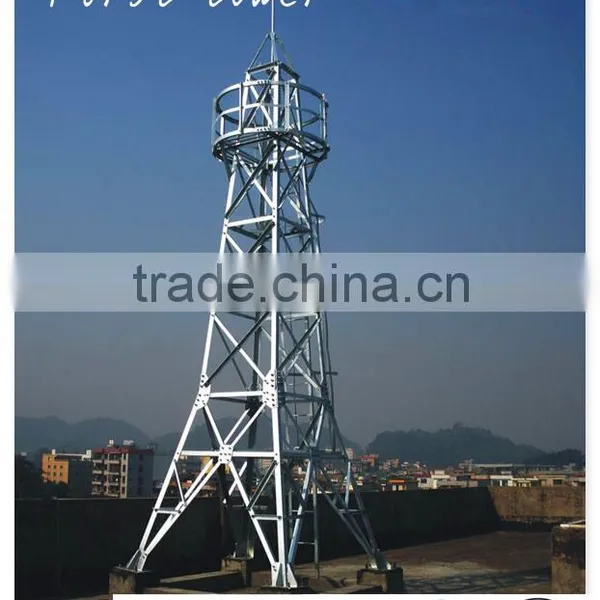

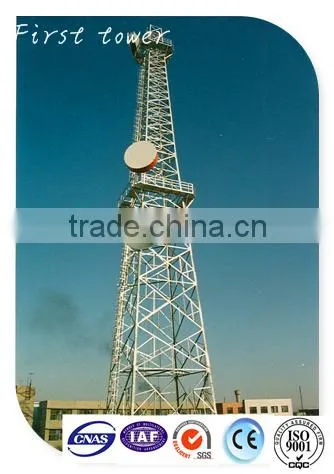

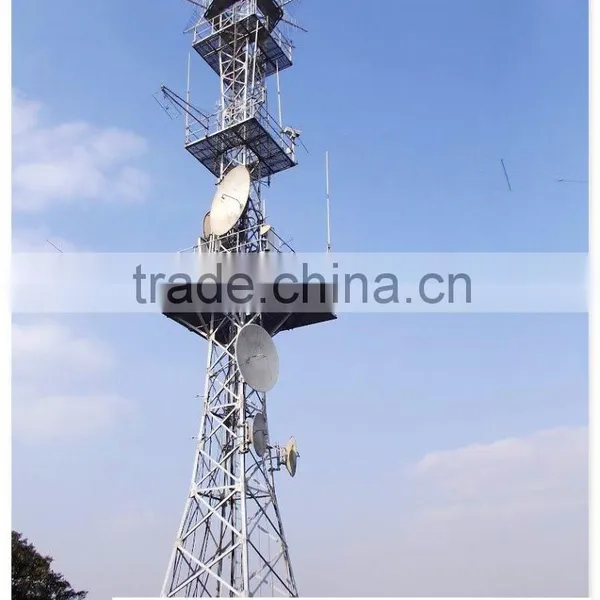

Antenna tower is four-egged, self-supporting towers made of triangular angular elements designed on a square base pattern. The communication tower is optimized for medium to heavy loads and is generally suitable for standard cellular sites.
GSM cell phone mobile antenna telescopic mast telecommunication tower is designed for heights of 20m up to 70m and can be easily shipped in a standard 20′ ISO container. Its modular design allows for last minute modification and modules can easily be interchanged according to the specific site design.
Telescopic antenna tower can be supplied with a variety of accessories, such as platforms, antenna mounts, safety devices, obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and orientation according to customer requirements.
Recommended Use for GSM cell phone mobile antenna telescopic mast telecommunication tower :
GSM/CDMA Equipment
Radars
Video Surveillance Equipment
Wind Turbines
Product name | telescopic antenna tower |
Application: | Telecommunication, Electric Power Transmission and Distribution |
Tower shape: | Triangular , Square, Polygonal or Conical |
Material : | Q345B/A572,minimum yield strength >=345N/mm2; |
Wind Pressure: | 0.35~0.45 KN/M2 |
Surface treatment: | Hot dip galvanization/paint as per ISO 1461 or ASTM A123 |
Connection method: | Bolts, Slip joint, flanged connected |
Life time: | 50 years |
Necessary Accessories: | Antenna cage; antenna mount pole; lighting rod; bracket for obstacle light; bolts & nuts |
Tower height: | 5-200M |
Welding: | CO2 welding or Submerged arc auto methods |
Working & Resting Platform Quantity: | 1-4PCS |
Antenna Support: | 6-30pcs |
Microwave Dish: | 6-30pcs |
Quality system: | GB/T19001-2008-ISO9001,GB/T 24001-2004-ISO 14001,GB/T28001-2001 |
Inspection system:
1. Inpection team : Experienced engineers, technonolgy workers, advanced test equipments .
2. Qulity system: GB/T19001-2008-ISO9001,GB/T 24001-2004-ISO 14001,GB/T28001-2001
3. Manufacture standard: ASTM A123 or AS/NZS 4680:2006, AWS ( American Welding Society ) D 1.1 or Euro standard.
Packing: Covered by Mat or straw bale at the top and bottom or other packages suritable for seaworthy.
Shipping: Within one month after contract signed.
First Tower Co., Ltd. located in the famous China's largest production base. Our company's fixed capital is more than 5000 million RMB, with more than 400 existing stuff nowadays, covering an area of more than 60 acres. Our company is a combination of design, production, transportation, installation and maintenance. The main products of our company are corrugated metal culverts, assembled corrugated culverts, iron tower,transmission line tower,four column pipe tower, television tower, wind tower, lightning tower, watchtower, GSM cell phone mobile antenna telescopic mast telecommunication tower etc.
Our products have passed ISO9001:2008 quality management system certification and always promote and implement ISO9001 standard. Our company has realized "informatization management"
With professional team, strict management, perfect equipment, our company focus on creating tower series brand. "Line will be far from you, endless pursuit". For the achievements of world communication and dedication to the cause of traffic, First Tower Co., Ltd. will continue to forge ahead of the rest to develop a thoughtful service, high quality, prompt delivery of excellent suppliers and will never move forward.
- One-stop Service
- 20 year experience of manufacturering.
- Large Factory with Complete Facility
- Machine and Weather-ability Testing Machines, etc . .
- Advanced Technology
1. Price Term: EXW, FOB, CFR or CIF.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5 Warranty : 30 years
6.Surface treatment :hot dip galvanization
