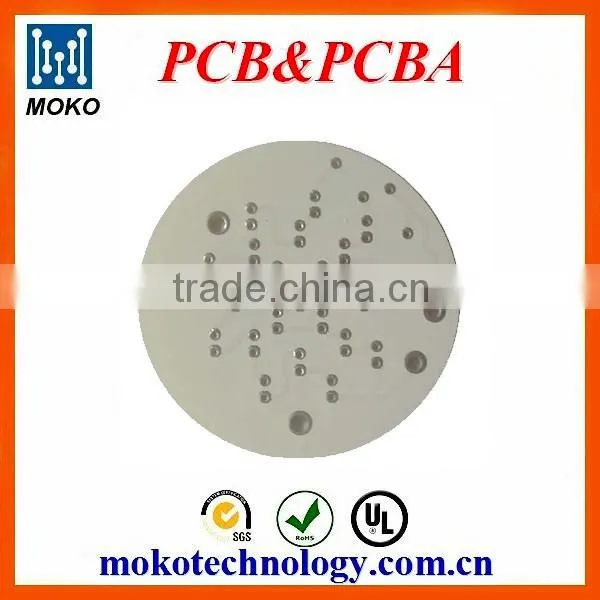

Quick Aluminum Based LED Circuit Board Factory/Fabrication
- ShenZhen/hongKong
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | MOKO | |
| Model Number | MKPCB89L17 | Base Material | Aluminum | |
| Copper Thickness | 1OZ | Board Thickness | 1.6MM | |
| Min. Hole Diameter | 0.2MM | Min. Line Width | 0.1MM | |
| Min. Line Spacing | 0.1MM | Surface Finishing | HASL |
Inner packing: Vaccum packing/Plastic bag
Outer packing: Standard carton packing
Product Description
· PCB board manufacture and PCBA service:
o PCB board file with parts list provided by customers
o PCB board made, circuit board parts purchased by us
o PCB board with parts assembled
o Electronic testing circuit board or PCBA
o Fast delivery, anti-static package
o RoHS Directive-compliant, lead-free
o One stop service for PCB design, PCB layout, PCB manufacture,components purchasing, PCB assembly, test, packing and PCB delivery
· Detailed terms for PCB assembly:
o Technical requirement:
§ Professional surface-mounting and through-hole soldering technology
§ Various sizes like 1206, 0805, 0603 components SMT technology
§ ICT (In Circuit Test), FCT (Functional Circuit Test) technology
§ PCB assembly with UL, CE, FCC, RoHS approval
§ Nitrogen gas reflow soldering technology for SMT
§ High standard SMT and solder assembly line
§ High density interconnected board placement technology capacity
o Quote requirement:
§ Gerber file and Bom list
§ Clear pics of pcba or pcba sample for us
§ Test method for PCBA
Layer | 1 to 12 layers |
Material | FR-4, CEM-1, CEM-3, Hight TG, FR4 halogen free, FR-1, FR-2 |
Max. finished thickness | 0.4 to 7.0mm |
Max. finished board side | 900 x 580mm |
Min. drilled hole size | 0.25mm |
Min. line width | 0.13mm |
Min. line spacing | 0.10mm |
Surface finish | HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold |
Copper thickness | 0.5 to 3.0 oz |
Solder mask color | green/black/white/red/blue |
Hole tolerance | PTH: ±0.076, NTPH: ±0.05 |
Certificate | UL, ISO 9001, ISO 14001, RoHS |
Test voltage | 150V-300V |
Company Profile
MOKO TECHNOLOGY LTD is an expert at PCB and PCBA manufacture, based in Shenzhen, Guangdong, China. We are specialized in manufacturing Single-Sided Boards, Double-Sided Boards and multilayer PCB. We are honored as the excellent supplier of many companies all around this world. We can offer all kinds of services including PCB and PCB assembly sample orders and batch orders. We have got the ISO9001:2000, ISO14001, and UL RoHS certifications. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month. We deeply believe that our good service and experience will completely meet you need. Integrity, value and innovation are the forces that drive our success. We are the smart choice for you and the trusted source at the center of your deal. Welcome the win-win situation together.
