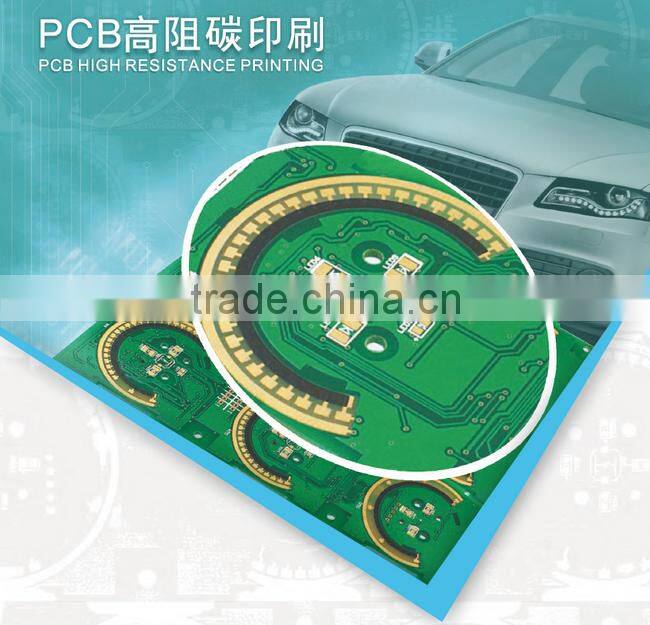

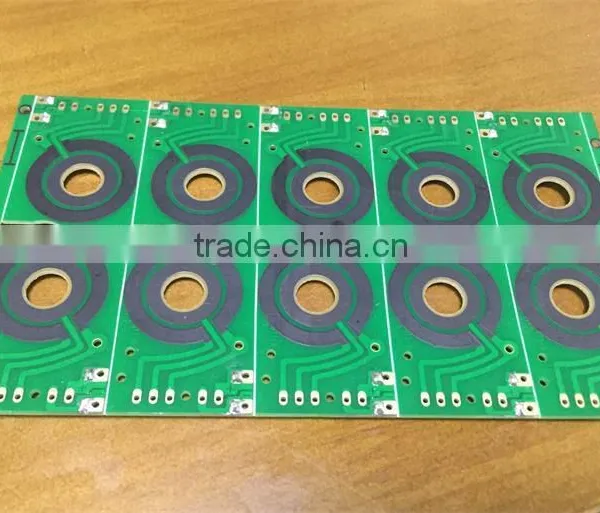

High resistance carbon printing
1.SpecificationsUL//ROHS/ISO pcb board
2.Lead time:Fast Delivery
3.Low price high quality pcb
4.Rich experience
Manufacture Capability
| Items | Normal standard | Ultimate |
| Material | FR-4;High TG FR-4;CEM-3;CEM-4 | Al-base |
| Layer NO. | 1-20 | 40 |
| Board Size | 50mm*50mm—560mm*640mm | 35mm*50mm |
| Board Thickness | 0.4mm-4.0mm | 0.3mm—6.0mm |
| Thickness Tolerance | ±10% | ±7% |
| Min Hole Size | 0.2mm | 0.15mm |
| Copper Thickness | 18um—105um | 18um—420um |
| Copper Plating hole | 18um—30um | 18um—40um |
| Min Trace Width | 0.1mm | 0.75mm |
| Min Space Width | 0.1mm | 0.75mm |
| SMD Pitch | 0.4mm | 0.4mm |
| BGA Pitch | 0.6mm | 0.6mm |
| Min Annular Ring | 0.07mm | 0.05mm |
| Register Tolerance | 0.05mm | 0.025mm |
| Solder Mask Color | green;blue;black;red | white; yellow |
| Peelable Mask | 0.3mm | 0.5mm |
| HASL Thickness | 2.5um | |
| lead Free HASL | 2.5um | |
| Immersion Gold | Nickel:47um Au:0.05um | Nickel:7um Au:0.2um |
| OSP Thickness | 0.2-0.5um | |
| Outline Tolerance | CNC:±0.1mm; V-CUT:±0.1mm; Punching:±0.15mm | |
| Impedance Control | ±10% | ±7% |
| Warpage | Less than 1% | Less than 0.7% |
| certificate | ISO9001;TS16949 |
My company's main products include PCB, PCBA, steel stencils and fixture and other related products.We have experienced R & D team,to provide quality. We have a special quick response mechanism and a perfect quality control system guarantee the model fast delivery and mass product quality stability.stability and price economic solutions to the products that exceed the industry's ability to process.
We dedicated ourselves to the quality policy of "Keep improving & Quality assurance" and continuously devote our efforts to the improvement of product quality and production technology. Surely, our contribution will result in the upgrading and development of our high-end customers and also lead us to be an essential role of this particular industry.

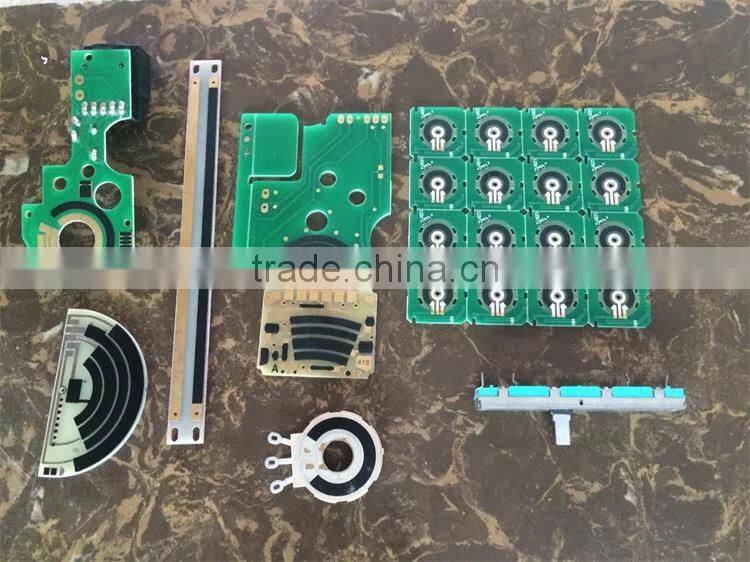

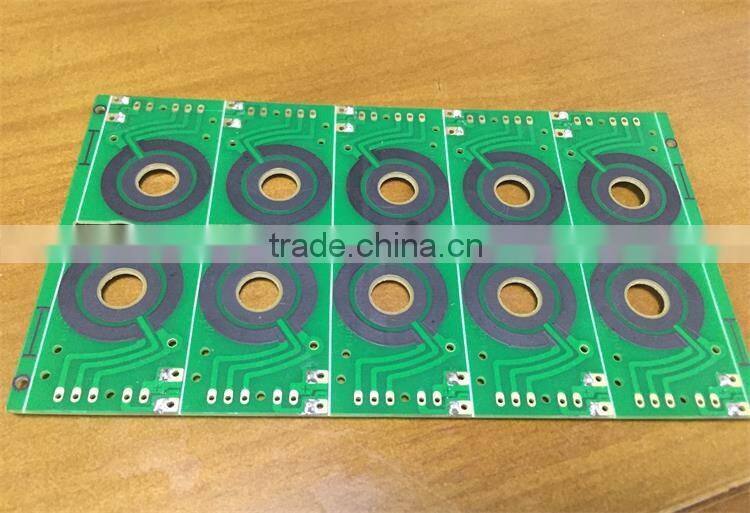

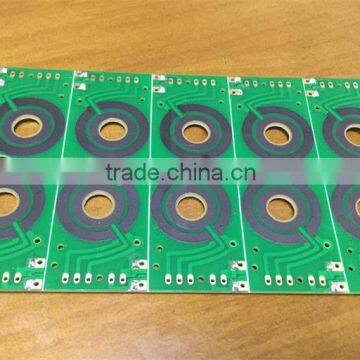

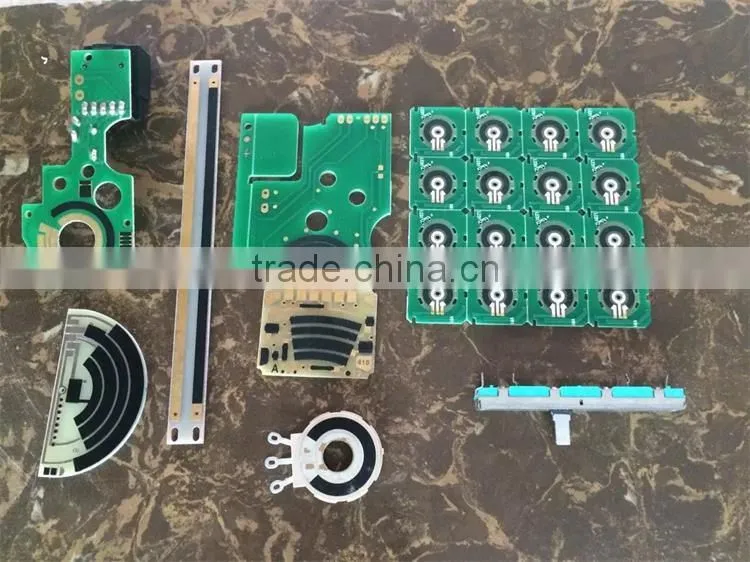

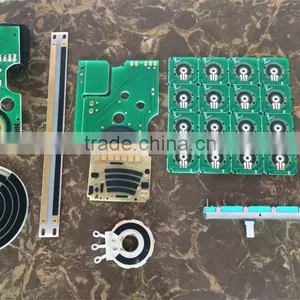

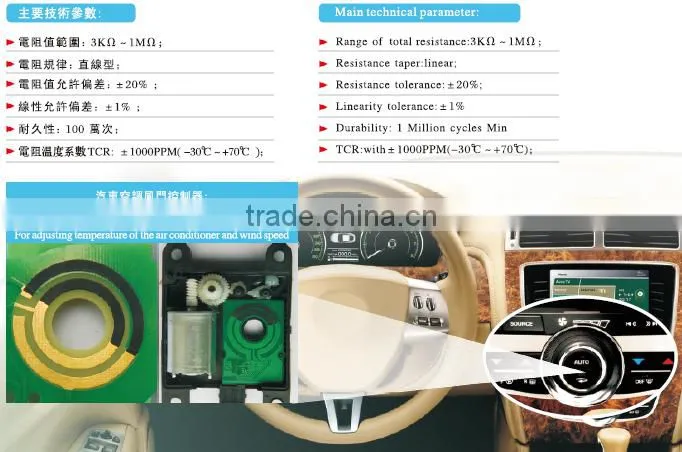

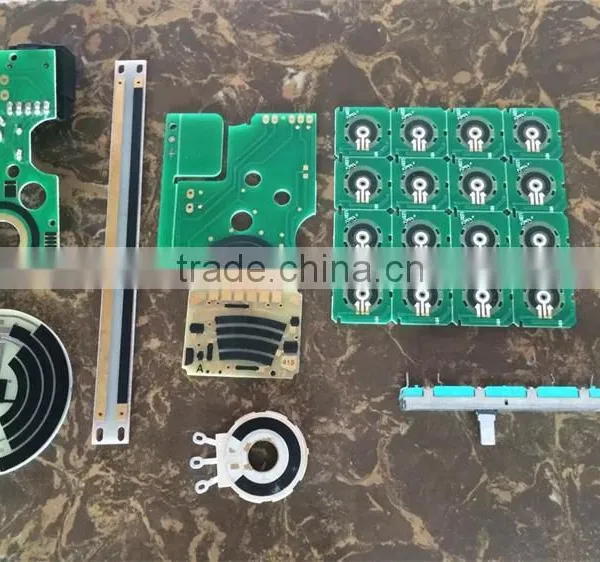

The resistance of PCB carbon film products is widely ranged from 1KΩ to 3MΩ.
1. Automobile components, such as, air-flow or seat-angle control for cars,

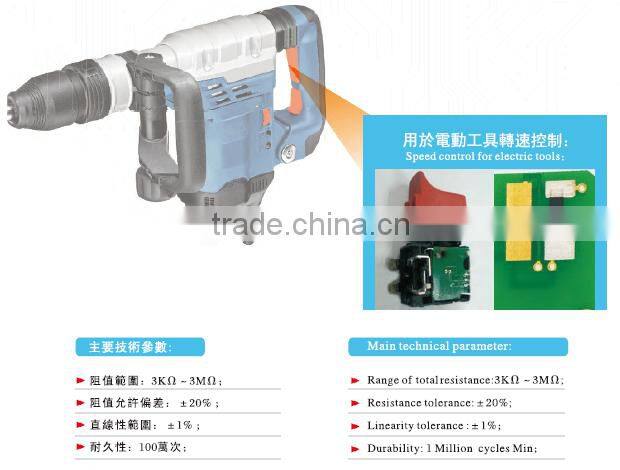

2. Speed control for electric drills

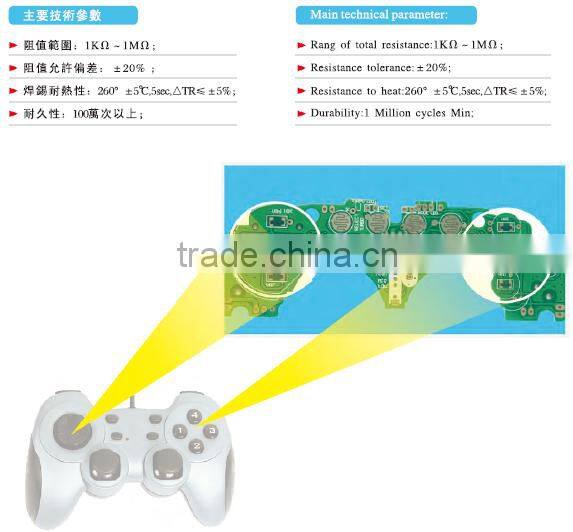

3. Game handles,
4. etc.
3C home-use electronics (washing machine, dryer),soft board circuit
Resistance range:1K~1M
Resistance tolerance:± 10 %
Electronic characteristic:according to customer’s requirement
PCB products of packaging : Vacuum packing + Foam filling + Double carton
Marking mode : Marking on the vacuum packing bag and the outer packing box
PCBA products of packaging : Air cushion film packing + Foam filling + Double carton
Marking mode : Marking on the outer packing box
Steel stencils products of packaging : Double protective film + Foam filling + Double carton
Marking mode:Marking on the metal frame and the outer packing box
Fixture packaging requirements according to the specific requirements of customers and products.
Packaging and Marking mode of the above mentioned way is the usual way.If there is a need to increase and change according to customer's specific requirements.
Q:What aspects of the product provides the O-Line Century?
A:Our main products are PCB, PCBA.Both upstream PCB design and component procurement agent business.Downstream can provide stencils, fixtures and other peripheral products for PCB Assembly.Provide one-stop service for customers.
Q:O-Line Century product positioning in what areas ?
A:Our products targeted include military, automotive, medical, high-speed rail, and industrial control, and other high-end area.
Q:What are the characteristics of your company's products?
A:Our company has engaged in the PCB industry average over 10 years of R & D team.At the advanced level in thick copper power supply PCB (6-12 ounces), high frequency impedance multilayer PCB, automotive carbon oil wear PCB (300,000 times more wear life), as well as halfhole, sink hole and so on.
Q:O-Line Century is how to ensure the quality of products ?
A:Our company passed ISO9001 certification in 2011,quality staff have TS16949 internal auditor qualification certificates.212 three-level management file and 104 management table are strictly enforced in the whole production process. Guarantee your product quality from all-round.
Q:O-Line Century is how to ensure product delivery date ?
A:Our factory uses the ERP system to track and control the process of production.For more than the residence time of the product, ERP system will automatically alarm, the relevant personnel will be processed.
Our factory set up a special control system for the rapid model.To open up special processing channels for the most urgent sample, arrange for a person to track, ensure the timely delivery.
| Quality Certificates & Environment Guideline HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC | |
|
|
|
|
|
|
|
shippment & payment:
we have our own manufacture factory and the experrienced manufacture team in Huizhou.
we will give you the lower price and the first-class quality.
This quotation doesn't include the shipping charge.
1. All the price are Ex-factory price without retail package.
2. Payment: T/T , Bank Transfer, Western Union and Paypal.
3. Delivery time: 4-7 working days after receipt of payment.
4. Valid period of the offer: 30 days
Delivery time: 12 days
Payment terms: 30% deposit before production, 70% balance before shipment.
Attn: Kevin
Whatsapp:+86 18820393453
Wechat: +86 18820393453
Mobile: +86 18820393453
Skype:fax9981 ©
Email: kevincosmetic ©
howangdz ©
tel9981 ©
Add: No. 258. Jianshe road west , Shiwan town, Boluo County, Huizhou city ,Guangdong Province, China.
Tel: 0086-752-6610869
Fax: 0086-752-6610819
Guangdong Huizhou Howang Electronics Co., Ltd
-----------------------------------------------------------------------
Website: http:// www.howang.en.china.cn
