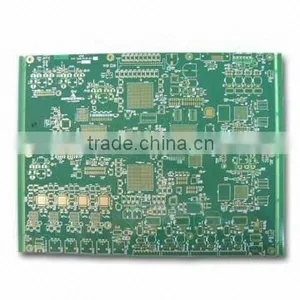

Help Centertv Pcb With Assembly Service
US$ 0.5 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Moko, Moko
Model Number:
MK-PCB0806146
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pcb Mount With Injection Molding and Tooling for Turnkey ManufacturingUS$ 0.5 - 2MOQ: 1 Piece -
HD LCD TV Main Control Board PCB Assembly, RoHS ApprovedUS$ 0.5 - 2MOQ: 1 Piece
-
PCB Assembly, Suitable for Computer, Telecom and Industrial Control BoardsUS$ 10 - 10,000MOQ: 10 Pieces
-
PCB Panel Array for Optimal Spaces and Bare Fabrication With Bare PCB Fabrication ComponentUS$ 10 - 10,000MOQ: 10 Pieces
-
PCB Assembly With Injection Molding and Tooling for Turnkey ManufacturingUS$ 10 - 10,000MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Moko, Moko
Model Number
MK-PCB0806146
Base Material
Fr-4
Copper Thickness
1oz
Board Thickness
1.5mm
Min. Hole Diameter
0.4mm
Min. Line Width
3mil, 4mil
Min. Line Spacing
4mil, 4mil
Surface Finishing
Hasl, hasl
Specifications
1.Fr-4,Hasl,1.6mm2.Green soldermask,white legend
3.PCB,FPC
4.UL,SGS,ISO9001,RoHS,QS9000
5.Welcome to customize pcb boards
tv pcb
A. Rigid pcb capacity
No. |
items |
Specifications |
| 1 | Layers | 1- 24 layer |
| 2 | Max working panel area | 457 x 610 mm |
| 3 | Min board thickness | 4 layer: 0.40mm |
| 6 layer: 0.80mm | ||
| 8 layer: 1.00mm | ||
| 10 layer: 1.20mm | ||
| 4 | Min trace width | 0.10mm |
| 5 | Min spacing | 0.10mm |
| 6 | Min hole diameter | 0.20mm |
| 7 | Min Copper thickness in hole | 0.020mm |
| 8 | PTH size tolerance | ±0.05mm |
| 9 | NPTH size tolerance | ±0.025mm |
| 10 | Hole position tolerance | ±0.05mm |
| 11 | Dimension tolerance | ±0.1mm |
| 12 | Min solder mask dam | 0.08mm |
| 13 | Insulation resistance | 1E+12Ω (normal condition) |
| 14 | Max Board thickness/Hole size Rate | 10:1 |
| 15 | Thermal shock endurance | 288 3 times in 10sec |
| 16 | Max Board twist and wrap | ≤0.7% |
| 17 | High Vlotage endurance | 1.3KV/mm |
| 18 | Copper foil peel off endurance | 1.4N/mm |
| 19 | Hardness of resist ink | ≥6H |
| 20 | Flame resistance | 94V-0 |
| 21 | Impedance control | ±5% |
| 22 | Certificate |
ISO 9001:2000;ISO14001;ISO/TS16949:2002 UL E203640 |
B. PCB&PCBA Service
One stop service from pcb design,pcb layout,pcb manufacture, components purchasing, test, packing, pcb assembly and pcb delivery.The smart choice for you and your trusted source at the center of your deal with pcb projects.pcb design.
C. MOKO Factory view
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
5Yrs
Business Type
Manufacturer, Trading Company
Year Established
2011
Factory Size
3,000-5,000 square meters
Total Employees
101 - 200 People
