94v0 Led Pcb Mounting

94v0 Led Pcb Mounting thumbnail-1
94v0 Led Pcb Mounting photo-1
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MOKO
Model Number:
MKPCB89L21
Contact Supplier Request Quote Chat Now
Shenzhen Moko Technology Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name MOKO
Model Number MKPCB89L21
Base Material FR4
Copper Thickness 1OZ
Board Thickness 1.6MM
Min. Hole Size 0.2MM
Min. Line Width 0.1MM
Min. Line Spacing 0.1MM
Surface Finishing HASL lead free

Specifications

PCB/PCBA manufacture
OEM/ODM service+100% test
UL,ROHS,CE,SGS
PCB lead time 20-25days
High quality,fast delivery

Product Technical Specification of Moko Technology Ltd

Item

Parameter

Double sided

Multilayer

Number of Layers

2

4~16

Copper Thickness

0.25~3.0OZ

0.5~3.0OZ

Base Board Thickness

0.3~3.2mm

0.6~3.2mm

Incombustibility

94V-0

94V-0

Peelable resistance

12.3N/cm

12.3N/cm

Twist

≤0.5%

≤0.5%

Insulation resistance

≥1011Ω

≥1011Ω

Test voltage

10-300V

10-300V

Finished board area

560×970mm

560×970mm

Min. Line Width and Spacing

0.1/0.1mm

0.1/0.1mm

Copper thickness in hole

≥25.0um

≥25.0um

Mini. pad diameter

Inner layer



0.05mm

Out layer

0.076mm

0.076mm

Mini. Hole Diameter

0.25mm

0.20mm

Hole tolerance

PTH

±0.076mm

±0.076mm

NPTH

±0.05mm

±0.05mm

Hole location tolerance

±0.076mm

±0.05mm

profile tolerance

Routing

±0.1mm

±0.1mm

Punching

±0.13mm

±0.13mm

Solder mask bridge ability

≥0.1mm

≥0.075mm

Solder mask rigidity

6H

6H

Solderable test

245 Degrees Centigrade     5 second

245 Degrees Centigrade     5 second

Thermal cycling ability

288 Degrees Centigrade   10 second

288 Degrees Centigrade    10 second

Surface Finishing

OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger

OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger

· PCB board manufacture and PCBA service:

o PCB board file with parts list provided by customers

o PCB board made, circuit board parts purchased by us

o PCB board with parts assembled

o Electronic testing circuit board or PCBA

o Fast delivery, anti-static package

o RoHS Directive-compliant, lead-free

o One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery

· Detailed terms for PCB assembly:

o Technical requirement:

§ Professional surface-mounting and through-hole soldering technology

§ Various sizes like 1206, 0805, 0603 components SMT technology

§ ICT (In Circuit Test), FCT (Functional Circuit Test) technology

§ PCB assembly with UL, CE, FCC, RoHS approval

§ Nitrogen gas reflow soldering technology for SMT

§ High standard SMT and solder assembly line

§ High density interconnected board placement technology capacity

o Quote requirement:

§ Gerber file and Bom list

§ Clear pics of pcba or pcba sample for us

Test method for PCBA

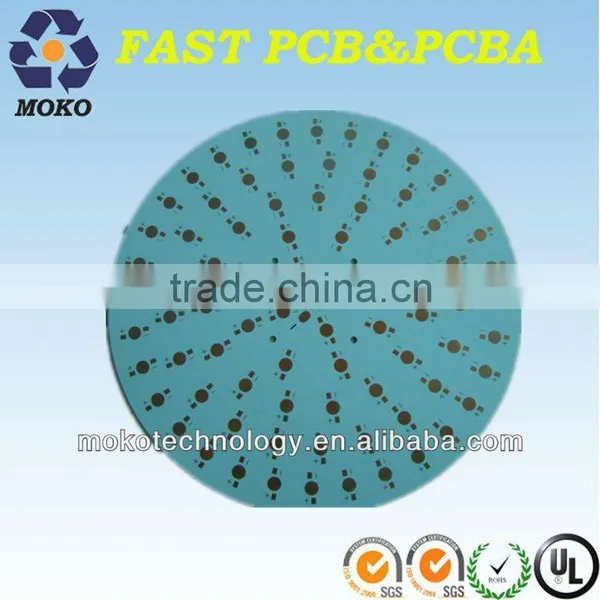

94v0 Led Pcb Mounting
